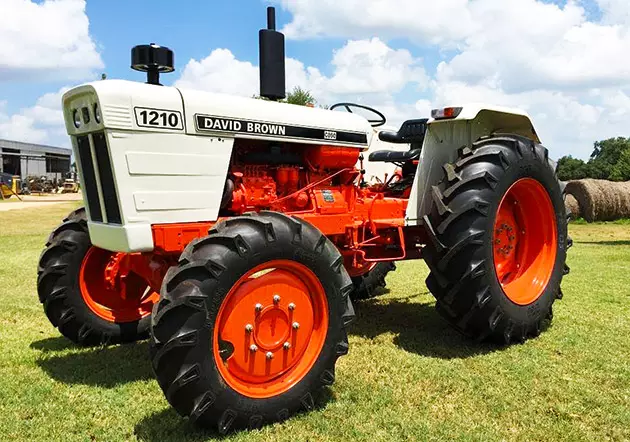

David Brown 1210 Utility Tractor may not be manufactured anymore these days, but knowing this antique is never been uninteresting. With red and black as its main colors, this tractor will also stand out from the rest of the tractors due to its huge size.
Let’s get to know this tractor from its dimensions first. David Brown 1210 Utility Tractor has a size of 143” x 78” x 90” for its length, width, and height (up to the exhaust) simultaneously. The weight of this tractor is 2,658 kg (2WD operating), 3,134 kg (4WD operating), and 4,735 kg (ballasted). Through the data, you will understand that the tractor is undeniably huge for its kind in the 1970s.
Now, let’s move on to the talk of David Brown 1210 Utility Tractor engine. Powered by the original David Brown machine with 3.6 L displacement, this engine is 4-cylinder and is liquid cooled. It works on diesel as its fuel type, and you can have a huge tank fit for 81.4 liters of fuel (equal to 21.5 gallons).
What about the power produced? The engine managed to successfully produces 61.0 HP or equal to 45.5 kW. It is not surprising given that the tractor itself is a huge one. To start the engine, this tractor offers an electric starter which can be considered something good during its release year.
Its hydraulic system is open center with the pressure of 2,500 psi (172.4 bars). Regarding the transmission, the transmission type that the David Brown 1210 Utility Tractor has are including 4 reverse gears and 12 forward ones.
The transmission type for this tractor is synchromesh which will ensure you a noise-free gears shifting. It also gets you a smooth gear shifting which will be great for huge tractor like this one. Aside from that, your tractor will produce less vibration with synchromesh transmission type.
Its chassis type is 4WD 4×4 MFWD or 4×2 2WD. It uses power steering type and the brakes are designed with differential mechanical show.
Lastly, we’ll talk about the price of David Brown 1210 Utility Tractor. This tractor can be considered as an expensive piece with 11,500 bucks to purchase it. But with the money, you can get a valuable tractor that fits a huge lawn job.
David Brown 1210 Price
- David Brown 1210 Original Price: $11,500 (1976 )
David Brown 1210 Serial Number
| Location | Data plate on clutch housing |
| 1971 | 720001 |
| 1972 | 720053 |
| 1973 | 722305 |
| 1974 | 724659 |
| 1975 | 728080 |
| 1976 | 11150001 |
| 1977 | 11154968 |
| 1978 | 11159654 |
| 1979 | 11163305 |
| 1980 | 11166342 |
David Brown 1210 Specification
| DAVID BROWN 1210 HISTORY | |
| Manufacturer | David Brown |
| Type | Utility tractor |
| Factory | Meltham Mills, Huddersfield, England |
| Original price | $11,500 (1976 ) |
| DAVID BROWN 1210 ENGINE | |
| Engine | David Brown diesel 4-cylinder liquid-cooled |
| Displacement | 219 ci 3.6 L |
| Bore/Stroke | 3.939×4.50 inches 100 x 114 mm |
| Air cleaner | oil bath |
| Compression | 17:1 |
| Starter volts | 12 |
| Coolant capacity | 15 qts 14.2 L |
| DAVID BROWN 1210 TRACTOR HITCH | |
| Rear Type | II |
| Rear lift | 2,200 lbs 997 kg (recommended) |
| 4,400 lbs 1995 kg (max) | |
| DAVID BROWN 1210 POWER | |
| PTO (claimed) | 61 hp 45.5 kW |
| Drawbar (tested) | 55.83 hp 41.6 kW |
| PTO (tested) | 65.98 hp 49.2 kW |
| DAVID BROWN 1210 MECHANICAL | |
| Chassis | 4×2 2WD |
| 4×4 MFWD 4WD | |
| Steering | power |
| Brakes | differential mechanical shoe |
| Cab | Cab optional. |
| Transmission | 12-speed |
| DAVID BROWN 1210 TRANSMISSION | |
| Gears | 12 forward and 4 reverse |
| DAVID BROWN 1210 HYDRAULICS | |
| Type | open center |
| Pressure | 2500 psi 172.4 bar |
| Pump flow | 6.9 gpm 26.1 lpm |
| DAVID BROWN 1210 PTO | |
| Rear PTO | independent |
| Rear RPM | 540/1000 |
| DAVID BROWN 1210 DIMENSIONS | |
| 2WD Wheelbase | 89 inches 226 cm |
| 4WD Wheelbase | 88 inches 223 cm |
| Length | 143 inches 363 cm |
| Width | 78 inches 198 cm |
| Height (exhaust) | 90 inches 228 cm |
| 2WD Clearance (front axle) | 21 inches 53 cm |
| 4WD Clearance (front axle) | 18.5 inches 46 cm |
| 2WD Clearance (drawbar) | 17 inches 43 cm |
| 4WD Clearance (drawbar) | 19.5 inches 49 cm |
| 2WD 132 to 182 cm 2WD} 66 inches 167 cm {4WD} Front tread | 52 to 72 inches |
| DAVID BROWN 1210 WEIGHT | |
| 2WD Operating | 5860 lbs 2658 kg |
| 4WD Operating | 6910 lbs 3134 kg |
| Ballasted | 10440 lbs 4735 kg |
| DAVID BROWN 1210 TIRES | |
| 2WD Standard tires (ag) | Front: 7.50-16. Rear: 8.4/15-30 |
| 4WD Standard tires (ag) | Front: 10-24. Rear: 18.4/15-30 |
| 4WD Optional tires (ag) | Front: 11-24. Rear: 13.6/12-38 |
| DAVID BROWN 1210 ELECTRICAL | |
| Charging system | alternator |
| Charging amps | 26 |
| Battery volts | 12 |
David Brown 1210 Review Video
Conclusion
So that’s the information regarding David Brown 1210 Utility Tractor. Hope you find this information useful and we hope this information will be beneficial especially if you want to know about this old tractor. Feel free to leave a comment; we will make sure to reach back to you as soon as possible.
