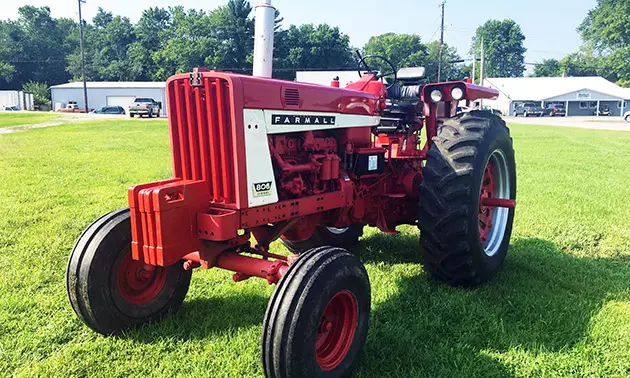

Farmall 806 Row-Crop Tractor is a modern, full-featured tractor produced by International Harvester. It is power equipment that’s capable of generating 94 horsepower. It is also available in several versions according to the fuel: gasoline, diesel, and liquefied petroleum gas (LP-gas).
There were a total of approximately 50,000 units manufactured of these tractors, starting from 1963 to 1967. It quickly gained popularity when it was first launched, which has continued even to these days.
The Farmall 806 Row-Crop Tractor comes with two engine versions. First is the 4.9 L (301 cubic inches) 6-cylinder engine, and second is the 5.9 L (361 cubic inches) 6-cylinder engine. There are also two transmission versions: Either a 2-speed power shift transmission with 16 F and 8 R gears and dry disc clutch, or the unsynchronized gear transmission with 8 F and 4 R gears and dry disc clutch.
There are also two options of set-ups: the 2-point hitch or 3-point hitch. In case you purchase the 2-point hitch version, then you will be more limited in terms of equipment use, but you can always get an adapter although sometimes it works chunkily.
That being said, Farmall 806 Row-Crop Tractor is not equipped with dual remotes. It is a possible option, but the first-hand owners weren’t always willing to put out extra cash to obtain them. In case you buy a unit without dual remotes and want to add a second one, you might need to spend approximately $1,000. Obviously, it is only an extra option, so you can just pass on the item and purchase it for a better price.
In general, Farmall 806 Row-Crop Tractor has a reliable transmission, but make sure you need to check this area first if the one you buy almost reaches the end of its supposed lifespan. Examine how each gear shifts by giving extra attention to the reverse’ in and out shifts. However, it’s safe to say the model has a solid engine and astounding hydraulic system.
If you are looking forward to buying the Farmall 806 Row-Crop Tractor, you might want to check its specifications, features, price, serial numbers, and its other aspects below.
Farmall 806 Price
- Farmall 806 Original Price: $9,300.00 USD.
Related Post
- Cub Lo-Boy 154
- Farmall 240
- Farmall B
- Farmall Cub
- Farmall H
- Farmall M
- Farmall 560
- International Harvester 3414
- Farmall 400
Farmall 806 Serial Number
| 1963 | 501 |
| 1964 | 4709 |
| 1965 | 15946 |
| 1966 | 24038 |
| 1967 | 34943 |
Farmall 806 Specification
| FARMALL 806 DIESEL ENGINE | |
| Engine | International Harvester D-361 diesel 6-cylinder liquid-cooled 361 ci [5.9 L] |
| Bore/Stroke | 4.125×4.50 inches [105 x 114 mm] |
| Air cleaner | two-stage dry |
| Compression | 17:1 |
| Rated RPM | 2400 |
| Idle RPM | 900-2400 |
| Starter volts | 12 |
| FARMALL 806 GASOLINE ENGINE | |
| Engine | International Harvester C-301 gasoline 6-cylinder liquid-cooled 301 ci [4.9 L] |
| Bore/Stroke | 3.8125×4.39 inches [97 x 112 mm] |
| Power (gross) | 110 hp [82.0 kW] |
| Air cleaner | two-stage dry |
| Rated RPM | 2400 |
| Starter volts | 12 |
| FARMALL 806 LP GAS ENGINE | |
| Engine | International Harvester C-301 LP-gas 6-cylinder liquid-cooled 301 ci [4.9 L] |
| Bore/Stroke | 3.8125×4.39 inches [97 x 112 mm] |
| Air cleaner | two-stage dry |
| Rated RPM | 2400 |
| Starter volts | 12 |
| FARMALL 806 CAPACITY | |
| Fuel | 42 gal [159.0 L] |
| LP-gas Fuel | 47 gal [177.9 L] |
| FARMALL 806 POWER | |
| Engine (gross) | 110 hp [82.0 kW] |
| Drawbar (claimed) | 84 hp [62.6 kW] |
| PTO (claimed) | 94.5 hp [70.5 kW] |
| Drawbar (tested) | 84.77 hp [63.2 kW] |
| PTO (tested) | 94.93 hp [70.8 kW] |
| FARMALL 806 MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | hydrostatic power |
| Brakes | hydraulic dry disc |
| Cab | Open operator station. |
| FARMALL 806 TRANSMISSION | |
| Type | unsynchronized |
| Gears | 8 forward and 4 reverse |
| Clutch | 12-inch dry disc |
| Four gears (1-4) in low, high, and reverse ranges. | |
| FARMALL 806 HYDRAULICS | |
| Pump flow | 12 gpm [45.4 lpm] |
| 3 gpm [11.4 lpm] (PTO pump) | |
| Steering flow | 9 gpm [34.1 lpm] |
| FARMALL 806 PTO | |
| Rear PTO | independent |
| Rear RPM | 540/1000 |
| 1000 | |
| FARMALL 806 DIMENSIONS | |
| Gasoline Weight (shipping) | 7,720 lbs [3501 kg] |
| Diesel Weight (shipping) | 8,500 lbs [3855 kg] |
| Weight (ballasted) | 11,895 lbs [5395 kg] |
| Wheelbase | 101.2 inches [257 cm] |
| Length | 161 inches [408 cm] |
| Width | 110 inches [279 cm] |
| Height (steering wheel) | 81 inches [205 cm] |
| Rear axle | 3.25 inch diameter [82 mm] |
| Front tread | 8/16 inches [20/40 cm] |
| Rear tread | 56 to 94 inches [142 to 238 cm] |
| 2WD turn radius | 9 feet [2.7 m] |
| FARMALL 806 TIRES | |
| Ag front | 6.50-16 |
| Ag rear | 15.5-38 |
| FARMALL 806 ELECTRICAL | |
| Ground | negative |
| Charging system | generator |
| Charging amps | 25 |
| FARMALL 806 BATTERY | |
| Number | 2 (diesel) |
| 1 (gas/LP) | |
| Volts | 6 (diesel) |
| 12 (gas/LP) | |
| Amp-hours | 170 (diesel) |
| 60 (gas/LP) | |
Farmall 806 Attachments
| LOADER | |
| Loader type | International Harvester 2000 |
| With double-acting lift cylinders. | |
| Weight | 1417 lbs [642 kg] |
| Height (to pin) | 125 inches [317 cm] |
| Clearance, dumped bucket | 105 inches [266 cm] |
| Rollback angle | 18 |
| Breakout force (lift) | 4000 lbs [1814 kg] |
| Lift to full height (at pin) | 2000 lbs [907 kg] |
| Bucket width | 48 inches [121 cm] |
| 60 inches [152 cm] | |
Farmall 806 Review Video
Conclusion
Feel free to use the information about the Farmall 806 Row-Crop Tractor as your buying guide. It can feel intimidating to purchase a tractor because it’s such complicated equipment, but by knowing more about the model you’re interested in, the process can be a lot easier and smoother.
