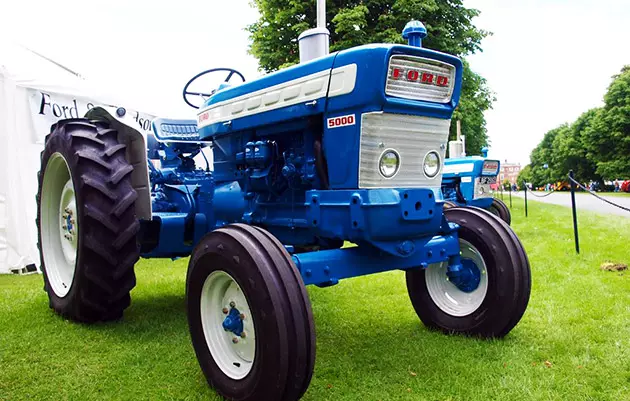

Ford 5000 Row-Crop tractor is a mid-sized tractor that is manufactured from 1968 in Michigan, United States. There were two versions available from this tractor: the Ford 5100 and the Ford 5200. Both were designed in particular to help cultivate and grows row-crop plants, hence the name.
The Ford 5000 received popularity not only in U.S., but also in Europe where a lot of farmers searched for mid-range tractors. In Great Britain alone, it was claimed as one of the best tractors in the market. It was also ranked as the third in the list of Ireland’s best-selling tractors ever. However, eventually, the production was stopped in 1976 with Ford 6600 as the replacement.
For your information, the 5100 version of this tractor has dimensions of 154 for the height and 359 cm for the length, and 222 cm for the wheelbase. Meanwhile, the 5200 version has dimensions of 172 cm for the height and 378 cm for the length, along with 243 cm wheelbase. Both versions of the Ford 5000 Row-Crop tractor have a width of 173 and weigh around 2,660 kg. They also have ground clearance of 36 cm.
Ford 5000 Row-Crop tractor comes with 4.2 L, Ford engine 4-cylinder, with options of gas or diesel-fueled. The engine has air cleaner and liquid cooling feature. The bore is 112 mm, while the stroke is 107 mm. The gas fuel capacity is 75.6 L. In addition, the power rating is 2100 rpm with compression ratio of 7.75:1.
This tractor model is a 4×2 two-wheel drive (2WD) with open operator station platform and differential mechanical wet disc clutch. It has independent rear power take-off, that moves at 1000/2060 engine rpm or 540/1900 engine rpm.
The Ford 5000 Row-Crop tractor model was suitable with open center hydraulic system with capacity of 32.9 L. It provides 22.7 lpm pump flow and the pressure of 2500 psi. Read more information about the Ford 5000 Row-Crop tractor below, including its specs, features, price, and serial numbers.
Ford 5000 Tractor Overview
| Type | Agricultural tractor |
| Manufacturer | Ford |
| Production | 1964-2000 |
| POWERTRAIN | |
| Propulsion | Wheels |
| DIMENSIONS | |
| Length | 141.6 inches (360 cm) |
| Width | 68.5 inches (174 cm) |
| Height | 63.5 inches (161 cm) (steering wheel) 86.4 inches (219 cm) (exhaust) |
| Curb weight | 5,865 pounds (2,660 kg) (operating weight) 9,700 pounds (4,400 kg) (ballasted weight) |
Related Post
Ford 5000 Price
- Ford 5000 Original Price: $5,400 (1967 )
Ford 5000 Serial Numbers
| 1965 | C100000 |
| 1966 | C124200 |
| 1967 | C161300 |
| 1968 | C190200 |
| 1969 | C226000 |
| 1970 | C257600 |
| 1971 | C292100 |
| 1972 | C327200 |
| 1973 | C367300 |
| 1974 | C405200 |
| 1975 | C450700 |
| 1976 | C490300 |
Ford 5000 Specification
| FORD 5000 GASOLINE ENGINE | |
| Engine | Ford gasoline 4-cylinder liquid-cooled |
| Displacement | 233 ci 3.8 L |
| Bore/Stroke | 4.20×4.20 inches 107 x 107 mm |
| Power | 69 hp 51.5 kW |
| Compression | 8.0:1 |
| Rated RPM | 2100 |
| Firing order | 1-3-4-2 |
| Starter volts | 12 |
| Coolant capacity | 15.3 qts 14.5 L |
| Intake valve clearance | 0.015 inches 0.381 mm * |
| Exhaust valve clearance | 0.018 inches 0.457 mm * |
| FORD 5000 DIESEL ENGINE | |
| Type | Forddiesel4-cylinderliquid-cooled |
| Displacement | 233 ci 3.8 L |
| Bore/Stroke | 4.20×4.20 inches 107 x 107 mm |
| Compression | 16.5:1 |
| Rated RPM | 2100 |
| Firing order | 1-3-4-2 |
| Starter volts | 12 |
| Coolant capacity | 15.3 qts 14.5 L |
| Intake valve clearance | 0.015 inches 0.381 mm * |
| Exhaust valve clearance | 0.018 inches 0.457 mm * |
| FORD 5000 POWER | |
| Engine | 69 hp 51.5 kW |
| Drawbar (tested) | 50.85 hp 37.9 kW |
| PTO (tested) | 60.37 hp 45.0 kW |
| FORD 5000 CAPACITY | |
| Fuel | 20 gal 75.7 L |
| Hydraulic system | 8.7 gal 32.9 L |
| FORD 5000 PTO | |
| Rear PTO | independent |
| Rear RPM | 540 |
| 540/1000 | |
| Engine RPM | 540@1900 1000@2060 |
| FORD 5000 HYDRAULICS | |
| Type | open center |
| Capacity | 8.7 gal 32.9 L |
| Pressure | 2500 psi 172.4 bar |
| Pump flow | 6 gpm 22.7 lpm |
| Steering flow | 4.5 gpm 17.0 lpm |
| Steering press. | 1050 psi 72.4 bar |
| FORD 5000 MECHANICAL | |
| Chassis | 4×2 2WD |
| GP Steering | power assist |
| Row-crop Steering | hydrostatic power |
| Brakes | differential mechanical wet disc |
| Cab | Open operator station. |
| Transmissions | 8-speed |
| 10-speed full power shift | |
| 16-speed partial power shift | |
| FORD 5000 TRANSMISSION | |
| Transmission | sliding gear |
| Gears | 8 forward and 2 reverse |
| Oil capacity | 10.8 qts 10.2 L |
| Oil type | M-4864-A |
| FORD 5000 DIMENSIONS | |
| GP Wheelbase | 87.5 inches 222 cm |
| Row-crop Wheelbase | 96 inches 243 cm |
| GP Length | 141.6 inches 359 cm |
| Row-crop Length | 149 inches 378 cm |
| Width | 68.5 inches 173 cm |
| Ground clearance | 14.25 inches 36 cm |
| GP 132 to 203 cm GP} 56 to 88 inches {row-crop} 142 to 223 cm {row-crop} Front tread | 52 to 80 inches |
| Rear tread | 56 to 80 inches 142 to 203 cm |
| 56 to 90 inches 142 to 228 cm * | |
| FORD 5000 HEIGHT | |
| Steering wheel | 63.5 inches 161 cm |
| GP Hood | 61 inches 154 cm |
| Row-crop Hood | 68 inches 172 cm |
| Exhaust | 86.4 inches 219 cm |
| FORD 5000 WEIGHT | |
| GP Shipping | 5740 lbs 2603 kg |
| Row-crop Shipping | 6250 lbs 2835 kg |
| Operating | 5,865 lbs 2660 kg |
| Ballasted | 9,700 lbs 4399 kg |
| FORD 5000 TIRES | |
| Ag front | 6.00-16 |
| Ag rear | 12.4-38 |
| Ag front | 7.50-16 |
| Ag rear | 13.6-38 |
| 15.5-38 | |
| 16.9-30 | |
| 18.4-26 | |
| FORD 5000 ELECTRICAL | |
| Ground | negative |
| Charging system | generator |
| Charging amps | 22 |
| Battery volts | 12 |
| Gas Battery AH | 80 |
| Diesel Battery AH | 128 |
Ford 5000 Review Video
Related Post
Conclusion
Well, Ford 5000 Row-Crop tractor is a reliable machine if you are looking for something great as a secondary option for your main tractor or for everyday use, or. The model is available in abundance numbers, so you can find the parts replacements easily. If you choose the diesel engine version, it is also fuel-efficient power equipment even if you use it for the optimum power possible.
