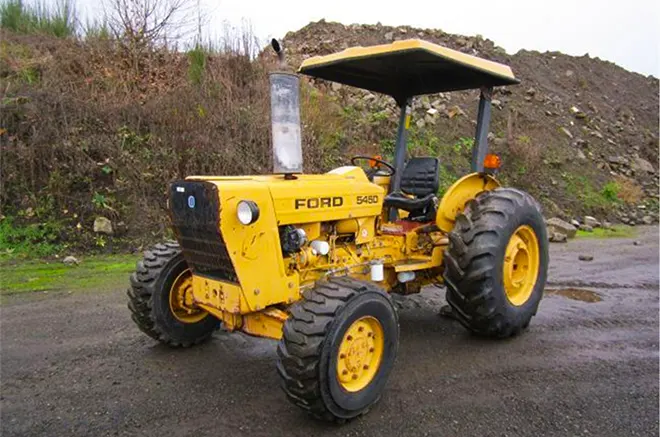

Powered by a Ford diesel3-cylinder liquid-cooled engine, the Ford 545D Industrial Tractor can reach speeds of up to 2200 rpm and produce 66 horsepower (49.2 kW).
Power steering, a Ford 3.3L 3-cyl diesel engine, four-wheel drive (42) and four-wheel drive (MFWD) options, as well as a lift capability of 3080 lbs. at the rear, as well as an oil capacity of 6.6 liters, make up the Ford 545D industrial tractor.
A front-end loader is one of the many options available for the Ford 545D Industrial tractor.
In this section, we’ll explore all you need to know about the Ford 545D Industrial Tractor.
Ford 545D Price
Ford 545D Original Price:
Ford 545D Serial Number
- Not Available
Ford 545D Specifications
Ford 545D Engine
| Engine | Engine Detail Ford diesel 3-cylinder liquid-cooled |
| Displacement | 201 ci 3.3 L |
| Bore/Stroke | 4.40×4.40 inches 112 x 112 mm |
| Power (gross) | 66 hp 49.2 kW |
| Compression | 16.3:1 |
| Rated RPM | 2200 |
| Torque | 180 lb-ft 244.1 Nm |
| Torque RPM | 1400 |
| Starter volts | 12 |
| Oil capacity | 7 qts 6.6 L |
| Coolant capacity | 11 qts 10.4 L |
Ford 545D Capacity
| Fuel | 16 gal 60.6 L |
| Hydraulic system | 9.1 gal 34.4 L |
| Steering | 0.63 qts 0.6 L |
Ford 545D 3 Point Hitch
| Rear Type | II/I |
| Control | position control and top-link draft sensing |
| Rear lift | 3080 lbs 1397 kg |
Ford 545D Power
| Engine (gross) | 66 hp 49.2 kW |
| Engine (net) | 62 hp 46.2 kW |
| Shuttle PTO (claimed) | 50 hp 37.3 kW |
| Gear PTO (claimed) | 54 hp 40.3 kW |
Ford 545D Mechanical
| Chassis | 4×2 2WD |
| 4×4 MFWD 4WD | |
| Steering | power |
| Brakes | wet multi-disc |
| Cab | Two-post ROPS. Optional four-post ROPS. Optional two-door cab with heater. |
Ford 545D Transmission
| Type | torque converter |
| Gears | 8 forward and reverse |
| Oil capacity | 17 qts 16.1 L |
| Type | torque converter |
| Gears | 4 forward and reverse |
| Oil capacity | 17 qts 16.1 L |
| Gears | 8 forward and 2 reverse |
| Oil capacity | 12.7 qts 12.0 L |
Ford 545D Hydraulics
| Type | open center |
| Capacity | 9.1 gal 34.4 L |
| Pressure | 2450 psi 168.9 bar |
| Valves | 1 or 2 optional |
| Pump flow | 26 gpm 98.4 lpm |
| Steering flow | 5.9 gpm 22.3 lpm |
| Steering cap. | 0.63 qts 0.6 L |
| Steering press. | 1600 psi 110.3 bar |
Ford 545D PTO
| Rear PTO | independent |
| Rear RPM | 540 |
Ford 545D Dimensions
| Wheelbase | 81 inches 205 cm |
| Length | 196 inches* 497 cm |
| Width | 78 inches* 198 cm |
| Height (ROPS) | 94 inches 238 cm |
| Height (cab) | 93 inches 236 cm |
| 2WD Ground clearance | 14 inches 35 cm |
| 4WD Ground clearance | 11 inches 27 cm |
| 2WD Front tread | 58 inches 147 cm |
| 4WD Front tread | 66.5 inches 168 cm |
| Rear tread | 61 inches 154 cm |
Ford 545D Tires
| Ag front | 7.50-16 (2WD) |
| 12.0-16.5 (4WD) | |
| Ag rear | 16.9-24 |
| 16.9-28 |
Ford 545D Electrical
| Ground | negative |
| Charging system | alternator |
| Charging amps | 55 |
| Battery CCA | 675 |
| Battery volts | 12 |
| Battery AH | 128 |
Ford 545D Weight
| 2WD ROPS | 5015 lbs 2274 kg |
| 2WD Cab | 5607 lbs 2543 kg |
| 4WD ROPS | 5633 lbs 2555 kg |
| 4WD Cab | 6225 lbs 2823 kg |
| 8998 lbs (2WD ROPS loader) 4081 kg | |
| 9616 lbs (4WD ROPS loader) 4361 kg | |
| 9698 lbs (2WD Cab loader) 4399 kg | |
| 10316 lbs (4WD Cab loader) 4679 kg | |
| 2WD Max front axle | 10000 lbs (static) 4536 kg |
| 2WD Max front axle | 40000 lbs (dynamic) 18144 kg |
| 4WD Max front axle | 13850 lbs (static) 6282 kg |
| 4WD Max front axle | 55440 lbs (dynamic) 25147 kg |
| Max rear axle | 11500 lbs (static) 5216 kg |
| 34500 lbs (dynamic) 15649 kg |
Ford 545D Attachments
Ford Loader
| Height (to pin) | 131 inches 332 cm |
| Clearance, dumped bucket | 103 inches 261 cm |
| Dump reach | 32 inches 81 cm |
| Dump angle | 45° |
| Rollback at ground | 40° |
| Breakout force (at pin) | 8000 lbs 3628 kg |
| Lift to full height (at pin) | 5000 lbs 2268 kg |
| Bucket width | 82 inches 208 cm |
| Raise time to height | 5.1 s |
| Bucket dump time | 2.0 s |
| Lowering time | 3.1 s |
