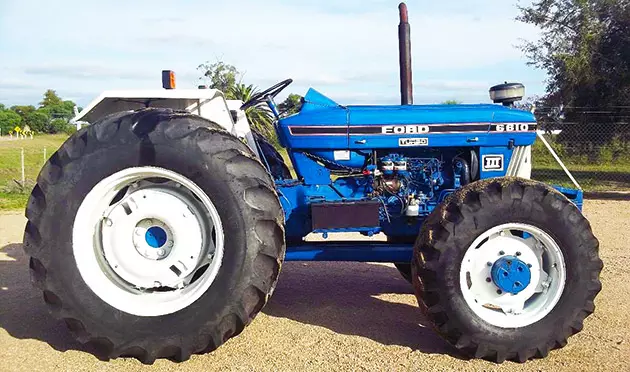

With blue as its main color Ford 6610 utility tractor can be your favorite old tractor to do any lawn jobs. It has a huge size—which will be pretty useful if you own a large size of land to work on. Manufactured by Ford, this tractor was a hit for eleven years (1982-1993) before it gets discontinued. The specifications of this antique tractor will be shown below.
First, let’s talk about the Ford 6610 utility tractor dimension. As mentioned, it is a big tractor with a height of 243 cm from bottom to its exhaust. If measured up to its cab, it is measured as 270 cm (106.6 inches). The 4WD length of this tractor is 388 cm—which is equal to 153.1 inches. Lastly, the width is 174 cm or is equal to 68.6 inches.
Talking about Ford 6610 utility tractor won’t be enough without talking about its engine. This tractor is fitted with a 4-cylinder engine that runs on diesel. Its displacement is 4.4 L (268 ci) and the engine can produce a solid power of 82 HP (gross) or 78.5 HP or measured as 61.1 kW and 58.5 kW. The engine works on rated RPM of 2,100 and typically starts with 12 volt.
The Ford engine is liquid-cooled—meaning that you’d need to add coolant into the tank (which has 12.8 L capacity).
Talking about transmission, Ford 6610 utility tractor has various kinds of transmission. You can have a synchromesh transmission complemented with 4 reverse 8 forward gears, synchromesh transmission with 2 reverse 8 forward gears, or partial power shift type of transmission with 4 reverse 16 forward gears. The partial power shift transmission also offers 8 reverse 16 forward gears.
Onto the chassis and braking system, this Ford utility tractor is equipped with 4×4 MFWD 4WD or 4×2 2WD. Moreover, power steering becomes the steering mode of this tractor. Not only that, but the tractor is also equipped with differential mechanical wet disc braking system. This will require you to add oil to the brake in order to keep the system maintain its temperature low.
What about the price? This utility tractor costs $24,500 on the last year of its manufacturing. As said earlier, this tractor is worth purchasing if you are planning to handle a huge area of lawn. Its fuel capacity is 21 gallons (79.5 L) which you can fill with diesel as the only option.
For further information, you can read this information of Ford 6610 utility tractor price, review, attachments, and other nitty-gritty below.
Ford 6610 Price
- Original Price: $24,500 (1993)
Related Post
Ford 6610 Serial Numbers
| 1982 | C682000 |
| 1983 | C694500 |
| 1984 | C707400 |
| 1985 | C732600 |
| 1986 | C750422 |
| 1987 | C763228 |
| 1988 | BB31777 |
| 1989 | BB80620 |
| 1990 | BC26239 |
| 1991 | BC77283 |
| 1992 | BD05700 |
| 1993 | BD37000 |
Ford 6610 Specification
| FORD 6610 ENGINE | |
| Engine | Forddiesel4-cylinderliquid-cooled |
| Displacement | 268 ci 4.4 L |
| Bore/Stroke | 4.4×4.4 inches 112 x 112 mm |
| Power | 78.5 hp 58.5 kW |
| Power (gross) | 82 hp 61.1 kW |
| Air cleaner | dual paper elements |
| Compression | 16.3:1 |
| Rated RPM | 2100 |
| Torque | 219 lb-ft 297.0 Nm |
| Starter volts | 12 |
| Oil capacity | 9 qts 8.5 L |
| Coolant capacity | 13.5 qts 12.8 L |
| FORD 6610 TRANSMISSION | |
| Transmission | |
| Transmission | Dual-range |
| Gears | 8 forward and 2 reverse |
| Oil capacity | 56 qts 53.0 L |
| Transmission | |
| Transmission | Dual-range |
| Type | synchromesh |
| Gears | 8 forward and 4 reverse |
| Transmission | Dual Power |
| Type | partial power shift |
| Gears | 16 forward and 4 reverse |
| The Dual Power adds a shift-on-the-move to an under-speed on the basic 8/2 gear transmission. | |
| Transmission | |
| Transmission | Dual Power |
| Type | synchromesh partial power shift |
| Gears | 16 forward and 8 reverse |
| A shift-on-the-move under-speed added to the 8/4 synchromesh transmission. | |
| FORD 6610 CAPACITY | |
| Fuel | 21 gal 79.5 L |
| Hydraulic system | 15 gal 56.8 L |
| FORD 6610 TRACTOR HITCH | |
| Rear Type | II |
| Rear lift (at 24″/610mm) | 4137 lbs 1876 kg |
| FORD 6610 HYDRAULICS | |
| Type | open center |
| Capacity | 15 gal 56.8 L |
| Pressure | 2500 psi 172.4 bar |
| Valves | 1 |
| Pump flow | 9.7 gpm 36.7 lpm (Series I) |
| 18.2 gpm 68.9 lpm (Series II) | |
| Steering flow | 3.6 gpm 13.6 lpm |
| FORD 6610 POWER | |
| Engine (gross) | 82 hp 61.1 kW |
| Engine | 78.5 hp 58.5 kW |
| PTO (claimed) | 72 hp 53.7 kW |
| Drawbar (tested) | 61.37 hp 45.8 kW |
| PTO (tested) | 72.30 hp 53.9 kW |
| FORD 6610 TIRES | |
| Ag front | 7.50-16 (2WD) |
| 11.2-24 (4WD) | |
| Ag rear | 16.9-30 |
| Ag front | 7.50-18 (2WD) |
| 10.00-16 (2WD) | |
| 12.4-24 (4WD) | |
| 13.6-24 (4WD) | |
| 14.9-24 (4WD) | |
| Ag rear | 18.4-30 |
| 16.9-34 | |
| 18.4-34 | |
| 15.5-38 | |
| 16.9-38 | |
| FORD 6610 PTO | |
| Rear PTO | independent |
| Rear RPM | 540 |
| 540/1000* | |
| FORD 6610 MECHANICAL | |
| Chassis | 4×2 2WD |
| 4×4 MFWD 4WD | |
| Differential lock | mechanical rear |
| Steering | power |
| Brakes | differential mechanical wet disc |
| Cab | Two-post ROPS. Cab optional with air-conditioning. |
| Transmissions | 8-speed |
| 8-speed synchromesh | |
| 16-speed partial power shift | |
| 16-speed synchromesh partial power shift | |
| FORD 6610 DIMENSIONS | |
| 2WD Wheelbase | 87.5 inches 222 cm |
| 4WD Wheelbase | 88.8 inches 225 cm |
| 2WD Length | 145.2 inches 368 cm |
| 4WD Length | 153.1 inches 388 cm |
| Width | 68.6 inches 174 cm |
| 2WD Clearance (front axle) | 18.4 inches 46 cm |
| 4WD Clearance (front axle) | 17.8 inches 45 cm |
| Clearance (rear axle) | 24.2 inches 61 cm |
| 2WD Front tread | 52 to 80.5 inches 132 to 204 cm |
| 4WD Front tread | 60 to 80 inches 152 to 203 cm |
| Rear tread | 60 to 80 inches 152 to 203 cm (manual) |
| Rear tread | 56 to 90 inches 142 to 228 cm (power) |
| FORD 6610 HEIGHT | |
| Steering wheel | 68.2 inches 173 cm |
| ROPS | 95.9 inches 243 cm |
| Cab | 106.6 inches 270 cm |
| Exhaust | 96 inches 243 cm |
| FORD 6610 WEIGHT | |
| Shipping | 5695 lbs 2583 kg |
| 2WD ROPS Operating | 6800 lbs 3084 kg |
| 4WD ROPS Operating | 7300 lbs 3311 kg |
| Ballasted | 9700 lbs 4399 kg |
| FORD 6610 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 32 (Series I) |
| 51 (Series II ROPS) | |
| 75 (Series II Cab) | |
| Battery volts | 12 |
| Battery AH | 128 |
Ford 6610 Attachments
| FORD 777B LOADER | |
| Loader weight | 1390 lbs 630 kg |
| Height (to pin) | 124 inches 314 cm |
| Clearance, dumped bucket | 100 inches 254 cm |
| Dump reach | 44.9 inches 114 cm |
| Dump angle | 47° |
| Reach at ground | 76 inches 193 cm |
| Rollback angle | 14° |
| Breakout force (lift) | 4550 lbs 2063 kg |
| Lift to full height (at pin) | 2500 lbs 1134 kg |
| Bucket width | 48 inches 121 cm |
| 60 inches 152 cm | |
| 72 inches 182 cm | |
| FORD 777D LOADER | |
| Loader weight | 1415 lbs 641 kg |
| Height (to pin) | 125.2 inches 318 cm |
| Clearance, dumped bucket | 100 inches 254 cm |
| Dump reach | 33.9 inches 86 cm |
| Dump angle | 47° |
| Reach at ground | 68.1 inches 172 cm |
| Rollback angle | 14° |
| Breakout force (lift) | 5500 lbs 2494 kg |
| Lift to full height (at pin) | 2900 lbs 1315 kg |
| Bucket width | 48 inches 121 cm |
| 60 inches 152 cm | |
| 72 inches 182 cm | |
| FORD 777F LOADER | |
| Loader weight | 1636 lbs 742 kg |
| Height (to pin) | 120.9 inches 307 cm |
| Clearance, dumped bucket | 98 inches 248 cm |
| Dump reach | 40.2 inches 102 cm |
| Dump angle | 40° |
| Reach at ground | 74 inches 187 cm |
| Rollback angle | 13° |
| Breakout force (lift) | 4800 lbs 2177 kg |
| Lift to full height (at pin) | 2900 lbs 1315 kg |
| Bucket width | 48 inches 121 cm |
| 60 inches 152 cm | |
| 72 inches 182 cm | |
Ford 6610 Review Video
Related Post
Conclusion
So, those are all about Ford 6610 utility tractor specifications. If you have any questions about the tractor, feel free to leave a comment in the comment section below. We will try to reach to you as soon as possible.
