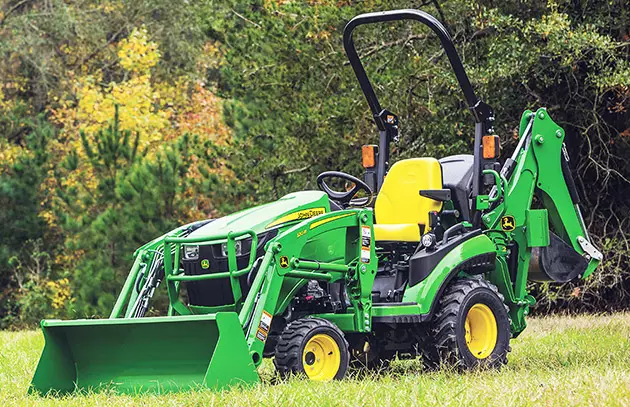

John Deere 1025r Sub-Compact Utility Tractor – John Deere 1025r Sub-Compact Utility Tractor is one of the best products from John Deere in the lineup of subcompact tractors. This utility vehicle has been designed with the same platform as the popular subcompact tractors from John Deere, but it also features a lot of improvements.

For instance, the owners will be able to get the Yanmar Diesel Engine that can produce up to 25 hp. This engine is a Tier 3 compliant engine that is friendly for the environment due to the low admission and exhaust outputs. The engine has also been equipped with features to reduce vibration and noise from the indirect fuel injection.

John Deere 1025r Sub-Compact Utility Tractor users will also get the power steering feature that can be used on both two-wheel-drive and four-wheel-drive mechanisms. The driver will be able to choose from the two modes to suit the usage of the tractor, whether it is for mowing or towing heavy loads. There is also a differential locking feature that will make it easier to get traction from the tractor tires especially when driving on rough terrains.

Meanwhile, there is also a wide selection of attachments that are available for the John Deere 1025r Sub-Compact Utility Tractor. This is the result of the availability of a 3-point hitch on the tractor that is compatible with various specialized attachments.

John Deere is an American company that provides various agricultural, forestry, and constructions along with heavy equipment products. Currently, the company is using the symbol DE as it is being listed on the NYSE. The company’s logo is a leaping deer with a slogan that says “Nothing Runs Like A Deere”.

Contents hide

1 John Deere 1025r Sub-Compact Utility Tractor Price

2 John Deere 1025r Specification

3 John Deere 1025r Sub-Compact Utility Tractor Specification

4 John Deere 1025r Sub-Compact Utility Tractor Accessories

5 Conclusion

John Deere 1025r Sub-Compact Utility Tractor Price

Price: $14,301.00 USD

Related Post

John Deere 1025r Specification

POWERFUL TIER 4-COMPLIANT DIESEL ENGINE
Powerful Engine	Tier-4-compliant isolated Yanmar
	24.2 gross hp
	3200 rpm rated speed
Strong Hydraulics	Standard dual mid
	Third-SCV kit
	Power-beyond kit
	Independent hydraulic
Comfortable Operator Station And Controls	Ag tractor family styling
	Folding rollover protective
	Deluxe-suspension seat
	Standard cruise control
Versatile Implements	D120 and H120 Loaders
	54D AutoConnect
	Material-collection
	260 Backhoe

John Deere 1025r Sub-Compact Utility Tractor Specification

KEY SPECS
Engine Power (Gross)	17.8 kW 23.9 hp 24.2 PS SAE J1995 rated power
Power Take-Off (PTO) Power	13.4 kW 18 hp
Steering Hydraulics	13.2 L/min 3.5 gpm
Implement Hydraulics	13.2 L/min 3.5 gpm
Hitch Type	Limited Category 1
Lift Capacity	309 kg 681 lb
Standard Transmission	Hydrostatic – 2 range
Cruise Control	Standard
Approximate Shipping Weight	655 kg 1444 lb
Wheelbase	145 cm 57.1 in.
ENGINE
Family	EYDXL1.27NS1 FYDXL1.27NS1 GYDXL1.27NS1
Manufacturer	Yanmar
Engine Model	3TNV80F-NCJT
Engine Power	17.8 kW 23.9 hp 24.2 PS SAE J1995 rated power
Power Take-Off	13.4 kW 18 hp
Rated Engine Speed	3200 rpm
Type	Diesel
Injection Pump Type	Indirect Injection
Aspiration	Natural
Emissions Compliance	Final Tier 4
Cylinders/Displacement	3 / 1.267 L 3 / 77.3 cu in.
Number of Cylinders	Three
Cylinder Liners	Cast-in-block
Bore and Stroke	80×84 mm 3.15×3.31 in.
Compression Ratio	23.0:1
Lubrication	Pressurized
Cooling System	Water pump
Air Cleaner	Dual element
Engine Torque at Rated Speed	55.2 Nm 40.7 lb-ft
Fuel Tank Capacity	21.2 L 5.6 U.S. gal.
ELECTRICAL
Battery Size	500 CCA
Alternator	40 amp
Starter Size	1.2 kW 1.6 hp
FUEL SYSTEM
Type	Indirect Injection
Fuel Consumption	5.8 L/hr 1.5 U.S. gal./hr
TRANSMISSION
Standard Transmission	Hydrostatic – 2 range
Left-Hand Reverser	No
Final Drive	Bull Gear
Brakes	Wet disc (left-hand pedal)
Steering	Power
Clutch, Wet/Dry	N/A
Axle Capacity	Front 612 kg 1349 lb Rear 715 kg 1576 lb
Creeper	No
Cruise Control	Standard
Differential Lock	Yes
HYDRAULICS
Type	Open center
Pump Rated Output	Steering 13.2 L/min 3.5 gpm Implement 13.2 L/min
Pump Type	Gear
Maximum Operating Pressure	137.9 bar 2000 psi
Draft Control Sensing	Position control
Remote Control Valves Available	Two
3-POINT HITCH
Type	Limited Category 1
Lift Capacity	309 kg 681 lb
POWER TAKE-OFF (PTO)
Standard	Rear – 540 rpm Mid – 2100 rpm
Control	Independent
Clutch	Wet disc
Brake	Wet disc
FLUID CAPACITIES
Crankcase with Filter	2.7 L 2.9 qt
Transmission and Hydraulic System	3.7 gal. 14 L
FINAL DRIVE
Type	Bull Gear
Differential Lock	Yes
OPERATOR STATION
Rollover Protective Structure	Type Foldable Yes
Platform	One-piece semi-flat
Gear Shift Location	Left-hand side
DIMENSIONS
Wheelbase	145 cm 57.1 in.
Front Axle Clearance	195 mm 7.7 in.
Turning Radius without Brakes	2.25 m 7.4 ft
Limited Slip Differential	No
Approximate Shipping Weight	655 kg 1444 lb
TIRES
Front	R4 – 18×8.5-10
Rear	R4 – 26×12-12
Front Tread Range	91.8 cm 36.1 in.
MISCELLANEOUS
Toolbox	Yes

John Deere 1025r Sub-Compact Utility Tractor Accessories

Magnetic hitch pin: 028BLVLP63768
Canopy Kit – Rigid Plastic: 028BLVLP64809
Bracket, Arm, RAM Double Socket: 028BLVPF80459
3-Point Hitch Tractor Receiver Hitch: 028BLVLP25001
38.1-mm (1.5–in.) ball mount and socket arm: 028BLVRE574454

Request Demo: www.deere.com/en/forms/demo-request/
John Deere Dealer: dealerlocator.deere.com/servlet/country=US?productGroup=59
Add To Cart John Deere 1025r Sub-Compact Utility Tractor: e-marketing.deere.com
Built your own John Deere 1025r Sub-Compact Utility Tractor: configure.deere.com

Related Post

Conclusion

We hope that you like this information about the John Deere 1025r Sub-Compact Utility Tractor. You can still use the comment box if you have any confusion about this subcompact tractor from John Deere. You will also find related information, such as the price and the complete specifications from this article.
