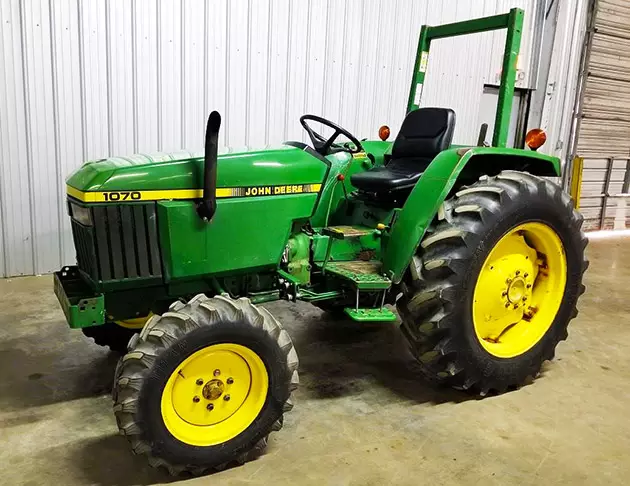

John Deere 1070 Compact Utility Tractor is another tractor manufactured by John Deere. This tractor is quite famous in its era (1989-1998) although it is already discontinued. If you are looking for this tractor’s specification, this article will be a good resource for you.
John Deere 1070 Compact Utility Tractor is a tractor that is powered by a Yanmar engine—a Japan-manufactured engine. This tractor is 4-cylindered, with 1.9 L of displacement that works mainly on diesel. The engine can produce 38.5 HP, which is equal to 28.7 kW if stated in another unit. This power is achievable when the machine is working at 2,600 rated rpm.
In addition, this tractor is equipped with a big fuel tank that can accommodate up to 10.6 gallons or equal to 40.1 L.
Regarding its mechanical aspect, John Deere 1070 Compact Utility Tractor has two kinds of chassis that you can choose from: 4×4 MFWD 4WD or 4×2 2WD. The tractor has power steering as its steering type, and it has two-post ROPS canopy that you can use or not up to your preference.
Next, let’s talk about John Deere 1070 Compact Utility Tractor transmission type. This tractor has a partially synchronized type of transmission. That said, the transmission type is equipped with 9 gears for forward movement and 3 gears for reversed movement.
With that amount of gears, you can go with various speed starting from 1.0-12.3 miles per hour or 1.6-19.8 km per hour for forward movement. As for the reverse movement, you can ‘go back’ with a speed of 1.6-7.9 miles per hour or is equal to 2.6-12.7 km per hour.
What about this tractor’s weight and braking system? Talking about weight, John Deere 1070 Compact Utility Tractor can be considered hefty and big with 916 kg (2,020 lbs). This makes the tractor becomes great for various lawn projects, especially for a big lawn. As for the braking system, John Deere 1070 tractor comes with wet disc braking system.
This tractor is popular within 1989-1998; and for the price—the tractor costs $18,000 at the last year of its manufacturing. Lastly, regarding its attachment, the tractor offers attachments such as mowing deck, front-end loader, backhoe, and blade. If you are curious about this tractor’s specification, you can read the complete information below.
John Deere 1070 Price
- Original Price: $18,000 (1998)
Related Post
- John Deere 2320
- John Deere 2555
- John Deere 4020
- John Deere 4110
- John Deere 4300
- John Deere 4310
- John Deere 5103
- John Deere 5105
- John Deere B
John Deere 1070 Serial Numbers
| 1989 | 001001 |
| 1990 | 001338 |
| 1991 | 100001 |
| 1992 | 115001 |
| 1993 | 120001 |
| 1994 | 130001 |
| 1995 | 140001 |
| 1996 | 150001 |
| 1997 | 160001 |
| 1998 | 170001 |
John Deere 1070 Specification
| JOHN DEERE 1070 HISTORY | |
| Distributor | John Deere |
| Manufacturer | Yanmar |
| Factory | Japan |
| Original price (USD) | $18,000 (1998 ) |
| JOHN DEERE 1070 DIESEL ENGINE | |
| Engine | Yanmar 4TN84 diesel 4-cylinder liquid-cooled 116.3 ci [1.9 L] |
| Bore/Stroke | 3.31×3.39 inches [84 x 86 mm] |
| Power (gross) | 38.5 hp [28.7 kW] |
| Fuel system | direct injection |
| Air cleaner | dry |
| Compression | 17.8:1 |
| Rated RPM | 2600 |
| Idle RPM | 800-2875 |
| Starter volts | 12 |
| Oil capacity | 5.6 qts [5.3 L] |
| Oil change | 200 h |
| Coolant capacity | 6.1 qts [5.8 L] |
| JOHN DEERE 1070 TRANSMISSION | |
| Type | partially synchronized |
| Gears | 9 forward and 2 reverse |
| Clutch | dry |
| Oil capacity | 22 qts [20.8 L] * |
| JOHN DEERE 1070 HYDRAULICS | |
| Type | open center |
| Capacity | 5.5 gal [20.8 L] |
| Pressure | 2250 psi [155.1 bar] |
| Total flow | 9 gpm [34.1 lpm] |
| JOHN DEERE 1070 CAPACITY | |
| Fuel | 10.6 gal [40.1 L] |
| Hydraulic system | 5.5 gal [20.8 L] |
| Front axle | 8.5 qts [8.0 L] |
| JOHN DEERE 1070 3 POINT HITCH | |
| Rear Type | I |
| Control | load and depth control |
| Rear lift (at 24″/610mm) | 2020 lbs [916 kg] |
| JOHN DEERE 1070 POWER | |
| Engine (gross) | 38.5 hp [28.7 kW] |
| Engine (net) | 35 hp [26.1 kW] |
| PTO (claimed) | 35 hp [26.1 kW] |
| JOHN DEERE 1070 TIRES | |
| 2WD Standard tires (ag) | Front: 6.00-16. Rear: 13.6-24 |
| 4WD Standard tires (ag) | Front: 8-16. Rear: 13.6-28 |
| Lawn/turf front | 27×8.50-15 |
| Lawn/turf rear | 13.6-28 |
| 44×18.00-20 | |
| JOHN DEERE 1070 PTO | |
| Rear PTO | live* |
| Rear RPM | 540 |
| Mid RPM | 2100 |
| JOHN DEERE 1070 MECHANICAL | |
| Chassis | 4×2 2WD |
| 4×4 MFWD 4WD | |
| Final drives | planetary |
| Differential lock | foot-activated standard |
| Steering | power |
| Brakes | differential wet disc |
| Cab | Two-post ROPS. Canopy optional. |
| JOHN DEERE 1070 DIMENSIONS | |
| 2WD Weight (operating) | 2980 lbs [1351 kg] |
| 4WD Weight (operating) | 3265 lbs [1481 kg] |
| Wheelbase | 68.9 inches [175 cm] |
| Length | 123 inches [312 cm] |
| Width | 64.8 inches [164 cm] |
| Height (hood) | 52.2 inches [132 cm] |
| Height (ROPS) | 83.7 inches [212 cm] |
| Height (exhaust) | 77.6 inches [197 cm] |
| 2WD Clearance (front axle) | 13.6 inches [34 cm] |
| 4WD Clearance (front axle) | 15.6 inches [39 cm] |
| 2WD [141 to 192 cm] 2WD} 49.2 inches [124 cm] {4WD} Front tread | 55.9 to 75.9 inches |
| Rear tread | 51.2 to 71.1 inches [130 to 180 cm] |
| JOHN DEERE 1070 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 20 |
| 35* | |
John Deere 1070 Attachments
| 72.8″ MOWER DECK | |
| Type | mid-mount John Deere 72 |
| 3-blade with hydraulic lift | |
| Cutting width | 72.8 inches [184 cm] |
| Weight | 448 lbs [203 kg] |
| Overall width | 85 inches [215 cm] |
| Cut height | 1.5 to 8.6 inch [3 to 21 cm] |
| BLADE | |
| Type | front-mount John Deere 390 |
| Width | 84 inches [213 cm] |
| Height | 25.5 inches [64 cm] |
| Lift height | 12 inches [30 cm] |
| Cut depth | 5.5 inches [13 cm] |
| Weight | 725 lbs [328 kg] |
| Lift | hydraulic |
| Angle | hydraulic |
| LOADER | |
| Loader type | John Deere 80 |
| Height (to pin) | 96.3 inches [244 cm] |
| Clearance, dumped bucket | 73.2 inches [185 cm] |
| Dump reach | 23.4 inches [59 cm] |
| Dump angle | 38 |
| Reach at ground | 51 inches [129 cm] |
| Rollback at ground | 20 |
| Breakout force (lift) | 2,375 lbs [1077 kg] |
| Breakout force (bucket) | 1,995 lbs [904 kg] |
| Lift to full height (at pin) | 1,175 lbs [532 kg] |
| Bucket width | 53 inches [134 cm] |
| Raise time to height | 3.5 s |
| Bucket dump time | 2.9 s |
| Lowering time | 2.4 s |
| Rollback time | 1.8 s |
| BACKHOE | |
| Backhoe type | John Deere 8A |
| Weight | 950 lbs [430 kg] |
| 2-Foot flat digging depth | 102 inches [259 cm] |
| Reach from pivot | 133 inches [337 cm] |
| Loading height | 82 inches [208 cm] |
| Bucket force | 3,200 lbs [1451 kg] |
John Deere 1070 Review Video
Related Post
- John Deere G110
- John Deere GT225
- John Deere GT262
- John Deere GX75
- John Deere GX335
- John Deere GX345
- John Deere L130
- John Deere LA100
- John Deere LA140
- John Deere LA175
Conclusion
That sums up the information regarding John Deere 1070 Compact Utility Tractor. If you have any inquiries regarding this product, never hesitate to fill the comment box with your inquiries. We will try to answer your queries as soon as possible. Make sure to stay tune to our website and thank you for visiting!
