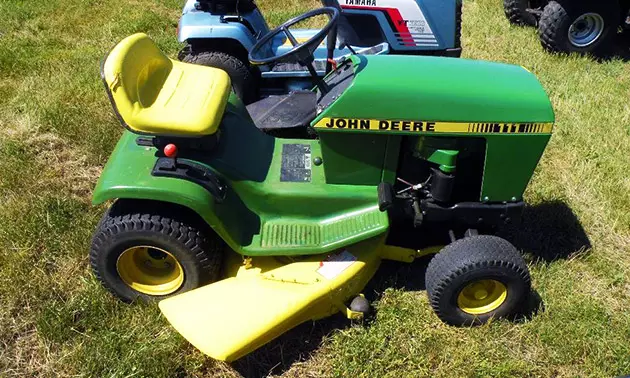

Outstanding with its green and yellow paint, John Deere 111 Lawn Tractor could be your next lawn tractor to help you with lawn jobs. This tractor, which is now discontinued, can be one of your choices if you are searching for old tractors that work best for your small-sized lawn. In this article, you will find the specification, price, and other aspects of this tractor.
Let’s start the talk of John Deere 111 Lawn Tractor specification from its engine. This tractor is equipped with Briggs & Stratton 252707 one-cylinder engine. The engine has a displacement of 399 cc and is air-cooled—it means you don’t have to add liquid coolant in order to cool the engine down.
This engine that John Deere 111 Lawn Tractor has will be able to produce 11 HP, which is equal to 8.2 kW. That rated power will be achievable if the engine works at 3,600 rpm. It has only one source of main combustion, which is gasoline. The engine is equipped with a 2.5-gallon fuel tank which capacity is equal to 9.5 L.
Onto the John Deere 111 Lawn Tractor mechanical aspect: there is its 4×2 2WD which is combined with manual steering type. Its braking system is disc brakes—a braking system in which it helps to enhance the stopping power. It also produces less heat compared to other tractor despite its noisy sound output.
This tractor has a transmission type of Peerless 801, belt-driven gear. It has 1 reverse and 5 forward gears, and each of them offer great difference in maximum speed (1.6 mph/2.6 kmph for reverse movement, while it is 1.4-4.9 mph/2.3-7.9 kmph for its forward movement).
As additional information, to use this peerless gear transmission, you will have to operate the tractor with dexter hand selector and left-foot clutch pedal. To change gears, you don’t have to stop; but you will have to use clutch. Then, to change direction, you have to stop the tractor first.
John Deere 111 Lawn Tractor, which was first introduced to public in 1979 and discontinued in 1985, has 100 cm height and 157 cm as its length. Just like other small tractors from John Deere, you can expect it to be a tractor with open operator station (no cab).
Regarding its price, on its last year of production, you will have to pay $2,100 for a unit. Quite standard for its class and you can expect a price difference for a unit these days.
John Deere 111 Price
- John Deere 111 Original Price: $2,100 (1985)
Related Post
- John Deere 160
- John Deere 1050
- John Deere Tractors Price List
- John Deere 1025r
- John Deere D140
- John Deere GT235
- John Deere GT275
- John Deere GX85
- John Deere L100
- John Deere LA110
John Deere 111 Serial Number
1979 | C111H095001M |
1980 | C111J120001M |
1981 | C111K155001M |
1982 | C111L190001M |
1983 | M0111S222001 |
1984 | M0111S295001 |
1985 | M0111S327001 |
Final | M0111S360000 |
John Deere 111 Specification
JOHN DEERE 111 ENGINE | |
Engine | Briggs & Stratton 252707 gasoline 1-cylinder air-cooled |
Displacement | 399 cc 24.4 ci |
Bore/Stroke | 3.4375×2.625 inches 87 x 67 mm |
Power | 11 hp 8.2 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug | AC CS-45 |
Champion CJ-8 | |
Autolite A79 | |
Sparkplug gap | 0.030 inches 0.762 mm |
JOHN DEERE 111 MECHANICAL | |
Chassis | 4×2 2WD |
Steering | manual |
Brakes | disc |
Cab | Open operator station. |
JOHN DEERE 111 TRANSMISSION | |
Transmission | Peerless 801 |
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Oil capacity | 1.125 qts 1.1 L |
JOHN DEERE 111 PTO | |
Mid PTO | independent |
Clutch | electric |
JOHN DEERE 111 DIMENSIONS | |
Wheelbase | 44.7 inches 113 cm |
Length | 61.9 inches 157 cm |
Height | 39.4 inches 100 cm |
Weight | 445 lbs 201 kg |
JOHN DEERE 111 TIRES | |
Lawn/turf front | 15×6.00-6 |
Lawn/turf rear | 18×8.50-8 |
JOHN DEERE 111 ELECTRICAL | |
Ground | negative |
Charging amps | 3 |
Battery volts | 12 |
John Deere 111 Attachments
ATTACHMENT OVERVIEW | |
38″ mid-mount mower deck | |
Snowblower | |
Blade | |
38″ MOWER DECK | |
Type | mid-mount John Deere |
manual lift | |
Cutting width | 38 inches 96 cm |
Overall width | 49.7 inches 126 cm |
Cut height | 1 to 4 inch 2 to 10 cm |
John Deere 111 Review Video
Related Post
- John Deere LA115
- John Deere LA125
- John Deere LT150
- John Deere RX75
- John Deere 5055E
- John Deere 102
- John Deere 116
- John Deere 185
- John Deere 190C
Conclusion
Well, that’s the information you may need about John Deere 111 Lawn Tractor. Hope you will find it useful. Feel free to ask anything through the comment section below, we’ll make sure to reach back to you ASAP. Thank you for visiting our site and stay tune for more contents alike.
