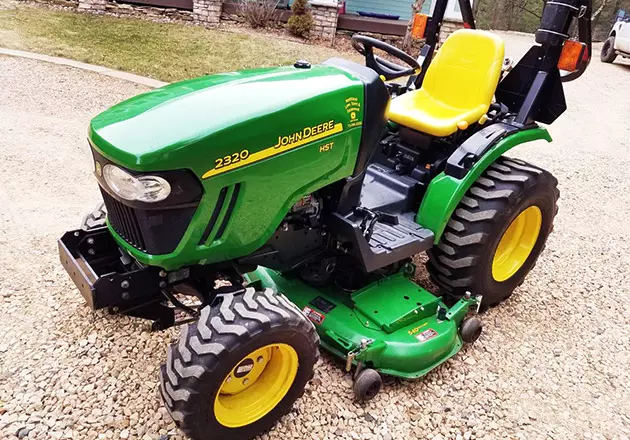

Curious about what John Deere 2320 Compact Utility Tractor can offer you? Make sure to read this article until the end—we will show you the specifications, price, and other related information regarding the product. Although, well, this tractor is already discontinued for almost ten years ago!
Let’s begin the talk of John Deere 2320 Compact Utility Tractor from its engine. Just like other John Deere’s product, you can expect it to have its engine manufactured by Yanmar. In this tractor, it’s the Yanmar 3TNV76 that will power up the tractor.
This engine is a 3-cylinder diesel engine with 1.1 L displacement (which is equal to 68 ci). Interestingly, this engine is capable to produce 24.1 HP which is equal to 18.0 kW. Completing its structure, this tractor has a relatively big fuel tank that can accommodate up to 6.1 gallons (equal to 23.1 L) of diesel as its only fuel type.
As for its mechanical aspect, John Deere 2320 Compact Utility Tractor is equipped with only 4×4 MFWD 4WD for its chassis. It has a wet disc braking system, and according to some source, the tractor has two-post folding RPOS as its cab type. This kind of cab will enable you to have hood on your operation station.
The talk for John Deere 2320 Compact Utility Tractor’s transmission system comes next. According to sources, the tractor’s transmission type is hydrostatic; completed with infinite forward and reverse gears. This enables the tractor’s users to freely move forward and speed up without the need to switch gears, either when going forward or backward.
John Deere 2320 Compact Utility Tractor can be considered well enough for big lawn. This is because the unit itself is a big one, which weighs 753 kg or is equal to 1,660 lbs for each unit. With such big ‘body’ and infinite gears installed to the system, moving with this tractor can be easier especially if you have a bigger land.
What about the attachment? According to sources, this tractor only offers loader. This loader is measured to be around 78.5”—which can be pretty big compared to other units from its class.
What about its price? Well, according to a source, the price for this tractor is typically around $15,000 these days. However, it can be higher or lower related to the tractor’s condition and hours used—given that many of the units are secondhand.
John Deere 2320 Price
- John Deere 2320 Original Price: $10,995 USD
- John Deere 2320 Serial Number: Not Available
Related Post
- John Deere 1070
- John Deere 2555
- John Deere 4020
- John Deere 4110
- John Deere 4300
- John Deere 4310
- John Deere 5103
- John Deere 5105
- John Deere B
John Deere 2320 Specification
| JOHN DEERE 2320 ENGINE | |
| Engine | Yanmar 3TNV76 diesel 3-cylinder liquid-cooled 68 ci [1.1 L] |
| Bore/Stroke | 2.99×3.23 inches [76 x 82 mm] |
| Rated Power (EC 97/98) | 24.1 hp [18.0 kW] |
| Air cleaner | dry dual element |
| Compression | 23.4:1 |
| Oil capacity | 3.4 qts [3.2 L] |
| Coolant capacity | 3.4 qts [3.2 L] |
| JOHN DEERE 2320 CAPACITY | |
| Fuel | 6.1 gal [23.1 L] |
| Hydraulic system | 2.6 gal [9.8 L] |
| JOHN DEERE 2320 3 POINT HITCH | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 1433 lbs [650 kg] |
| Rear lift (at 24″/610mm) | 1150 lbs [521 kg] |
| JOHN DEERE 2320 POWER | |
| Engine (gross) | 24.1 hp [18.0 kW] |
| PTO (claimed) | 18 hp [13.4 kW] |
| JOHN DEERE 2320 MECHANICAL | |
| Chassis | 4×4 MFWD 4WD |
| Final drives | spur gear |
| Steering | power |
| Brakes | wet disc |
| Cab | Two-post folding ROPS. |
| JOHN DEERE 2320 TRANSMISSION | |
| Type | hydrostatic |
| Gears | infinite (2-range) forward and reverse |
| Oil capacity | 10.4 qts [9.8 L] |
| JOHN DEERE 2320 HYDRAULICS | |
| Type | open center |
| Capacity | 2.6 gal [9.8 L] |
| Pressure | 2421 psi [166.9 bar] |
| Valves | 2 |
| Pump flow | 3.4 gpm [12.9 lpm] |
| Total flow | 5.6 gpm [21.2 lpm] |
| Steering flow | 2.2 gpm [8.3 lpm] |
| JOHN DEERE 2320 PTO | |
| Rear PTO | independent |
| Rear RPM | 540 |
| Mid PTO | independent |
| Mid RPM | 2100 |
| JOHN DEERE 2320 DIMENSIONS | |
| Weight (shipping) | 1660 lbs [752 kg] |
| Wheelbase | 63 inches [160 cm] |
| Length | 109.2 inches [277 cm] |
| Width | 37.1 inches [94 cm] (min) |
| 51 inches [129 cm] (max) | |
| Height (hood) | 53.3 inches [135 cm] |
| Height (ROPS) | 89 inches [226 cm] |
| 67.9 inches [172 cm] * | |
| 4WD turn radius | 6.7 feet [2.0 m] (with brakes) |
| 7.7 feet [2.3 m] | |
| JOHN DEERE 2320 TIRES | |
| Ag front | 23×8.5-12 |
| Ag rear | 31×12-16.5 |
| JOHN DEERE 2320 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 20 |
| JOHN DEERE 2320 BATTERY | |
| Number | 1 |
| Cold-cranking amps | 500 |
| Volts | 12 |
John Deere 2320 Attachments
| LOADER | |
| Loader type | John Deere 200CX |
| Height (to pin) | 78.5 inches [199 cm] |
| Dump reach | 29.5 inches [74 cm] |
| Dump angle | 38 |
| Rollback angle | 25 |
| Breakout force (at pin) | 2239 lbs [1015 kg] |
| Lift to full height (at pin) | 902 lbs [409 kg] |
| Raise time to height | 3.19 s |
| Bucket dump time | 3.19 s |
| Lowering time | 1.95 s |
| Rollback time | 1.95 s |
John Deere 2320 Review Video
Related Post
- John Deere G110
- John Deere GT225
- John Deere GT262
- John Deere GX75
- John Deere GX335
- John Deere GX345
- John Deere L130
- John Deere LA100
- John Deere LA140
- John Deere LA175
Conclusion
So, what do you think about John Deere 2320 Compact Utility Tractor? Will you go for a unit of this tractor? Before purchasing, make sure to understand what you can get from this tractor. That means you should know about its complete specifications. Kindly don’t hesitate to ask us questions through the comment box if you have queries regarding this product. We’ll try to reach you ASAP!
