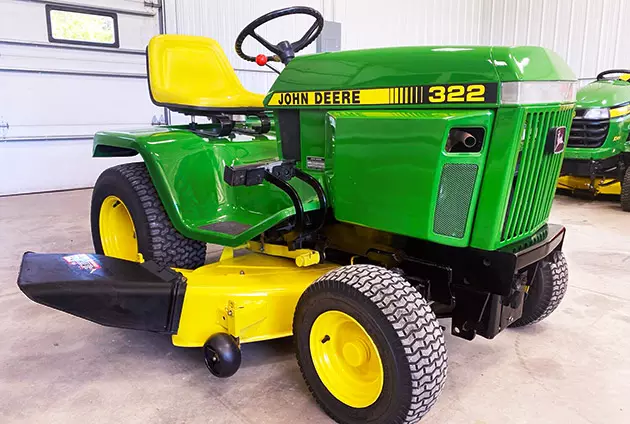

John Deere 322 Garden Tractor – John Deere 322 Garden Tractor is an outdoor equipment that features a Yanmar engine on the vehicle. This garden tractor is another variant of the more popular John Deere 318 garden tractor that uses the Onan Twin engine. But, this variant uses a liquid-cooling mechanism on the engine to maintain the temperature. With the horizontal-shaft inline engine, the vehicle can deliver up to 18 hp or about 13.4 kW of power. The operation can be pushed to the maximum speed rating at 3400 RPM.
On the mechanical side of the John Deere 322 Garden Tractor, this vehicle is equipped with power steering and mechanical drum brakes along with the conventional 4×2 2WD chassis. The 3-cylinder engine will burn gasoline as the main source of power with a displacement capacity of around 658cc. The oil capacity is around 2.7 L. The Yanmar engine used on the vehicle is the type 3TG66UJ.
The John Deere 322 Garden Tractor can also be used with various tractor attachments to make gardening jobs easier for the operator. For instance, the package will include three mower decks with different blade sizes, including the 38-inches, 48-inches, and 50-inches. All the mower decks will feature a mid-mount mechanism to attach the additional equipment to the vehicle. Aside from those, operators can also use a snowblower and other front-end loaders to finish other gardening jobs with ease. All in all, the vehicle is suitable for every type of gardening job on different types of terrains.
Therefore, now that you have found out about the basic specifications of the John Deere 322 Garden Tractor, you can begin to learn more about this vehicle by paying attention to more features offered with the garden tractor. All the aspects, including the user reviews, tractor price, available spare parts, serial numbers, and tractor images are important to find out more to ensure that the equipment is suitable for your needs.
John Deere is a manufacturer that produces various equipment in the agricultural and heavy equipment industries. Established around 184 years ago, it has turned into one of the most valuable heavy equipment companies in the world. The company was named after its founder and the main office is currently located in the city of Moline, Illinois. Aside from producing heavy equipment, they also have financial services to help farmers buy their products.
John Deere 322 Price
- John Deere 322 Original Price: $6,800 (1990)
Related Post
- John Deere LT160
- John Deere LT180
- John Deere LX172
- John Deere LX188
- John Deere LX279
- John Deere STX38 Black Deck
- John Deere X360
- John Deere X595
- John Deere 155C
- John Deere 175 Hydro
John Deere 322 Serial Number
| 1988 | 475001 |
| 1989 | 595001 |
| 1990 | 010001 |
| 1991 | 100001 |
| 1992 | 110001 |
| Final | 120000 |
John Deere 322 Specification
| JOHN DEERE 322 GASOLINE ENGINE | |
| Engine | Yanmar 3TG66UJ gasoline 3-cylinder liquid-cooled horizontal-shaft inline |
| Displacement | 658 cc 40.2 ci |
| Bore/Stroke | 2.60×2.53 inches 66 x 64 mm |
| Power | 18 hp 13.4 kW |
| Air cleaner | dry element |
| Compression | 8.7:1 |
| Idle RPM | 1300-3425 |
| Starter volts | 12 |
| Oil capacity | 2.9 qts 2.7 L |
| Coolant capacity | 2.9 qts 2.7 L |
| JOHN DEERE 322 CAPACITY | |
| Fuel | 4.5 gal 17.0 L |
| Hydraulic system | 1.625 gal 6.2 L |
| JOHN DEERE 322 MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | power |
| Brakes | mechanical drum |
| Cab | Open operator station. |
| JOHN DEERE 322 PTO | |
| Rear PTO | independent Opt |
| Clutch | electric |
| Rear RPM | 2000 |
| Front PTO | independent |
| Clutch | electric |
| Front RPM | 3425 |
| JOHN DEERE 322 TRANSMISSION | |
| Transmission | Sundstrand Series 15 Model 90 |
| Type | shaft-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 13 qts 12.3 L |
| JOHN DEERE 322 TRACTOR HITCH | |
| Rear Type | 0 Opt |
| Control | non-position control |
| JOHN DEERE 322 DIMENSIONS | |
| Wheelbase | 46 inches 116 cm |
| Length | 69.5 inches 176 cm |
| Width | 43.3 inches 109 cm |
| Height | 44.5 inches 113 cm |
| Shiping weight | 900 lbs 408 kg |
| Rear axle | Flange: 1.2 inch diameter 30 mm |
| Front tread | 32 inches 81 cm |
| Rear tread | 30.5/32.8 inches 77/83 cm |
| JOHN DEERE 322 HYDRAULICS | |
| Capacity | 1.625 gal 6.2 L |
| Valves | 2 |
| JOHN DEERE 322 TIRES | |
| Lawn/turf front | 16×6.50-8 |
| Lawn/turf rear | 23×10.50-12 |
| JOHN DEERE 322 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 20 |
| Battery volts | 12 |
| Battery Group | BCI U1 |
John Deere 322 Attachments
| ATTACHMENT OVERVIEW | |
| 38″ mid-mount mower deck | |
| 46″ mid-mount mower deck | |
| 50″ mid-mount mower deck | |
| Snowblower | |
| Blade | |
| Front-end loader | |
| JOHN DEERE 44 LOADER | |
| Loader weight | 500 lbs 226 kg |
| Height (to pin) | 71.5 inches 181 cm |
| Clearance, dumped bucket | 21 inches 53 cm |
| Dump angle | 50° |
| Reach at ground | 44 inches 111 cm |
| Rollback angle | 20° |
| Breakout force (bucket) | 575 lbs 260 kg |
| Lift to full height (at pin) | 400 lbs 181 kg |
| Bucket capacity | 0.21 cu yd 0.2 cu m |
| 0.24 cu yd 0.2 cu m | |
| Bucket width | 48 inches 121 cm |
| 54 inches 137 cm | |
Related Post
- John Deere 330
- John Deere 445
- John Deere 855
- John Deere 970
- John Deere 2010
- John Deere 2020
- John Deere D130
- John Deere GT245
- John Deere L108
Conclusion
We hope that the information about the John Deere 322 Garden Tractor can help you understand the vehicle more clearly. Ensure that you understand the complete features before buying the vehicle to achieve your gardening needs.
