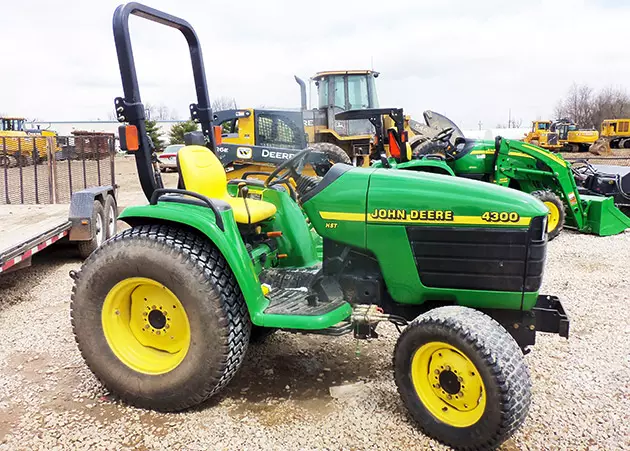

John Deere 4300 compact utility tractor is a two-wheel drive (2WD) or four-wheel drive (4WD) unit that was released as a part of the company’s 4000 Compact series. It was manufactured from 1998 to 2003 in Georgia, United States.
This particular has a dimension size of 116.9 inches (2970 mm) x 50 inches (1270 mm) for its length and width. Its fixed height is measured at 83.9 inches (2,130 mm) and the folding height is measured at 90 inches (2280 mm). It weighs 3000 lbs (1360 kg) with wheelbase size of 67.7 inches (1720 mm).
John Deere 4300 compact utility tractor comes with Japanese manufactured engine, Yanmar 3TNE84, which is a 1.5 L (91.3 cubic inch or 1496 mm2) 3-cylinder, naturally aspirated (NA) diesel engine, that’s capable of yielding 32.2 horsepower (24 kW or 32.6 PS). It has the piston stroke in the size 3.54 inches (90 mm) and the cylinder bore in the size of 3.31 inches (84 mm). The engine’s compression ratio is rated at 18:1.
There are three transmission types available for the 4300. You can either get a hydrostatic transmission with infinite 3 ranges F and R gears, a SyncReverser semi synchronized transmission with 12 F and 12 R gears, or a SyncShift semi-synchronized transmission with 9 F and 3 R gears.
The John Deere 4300 compact utility tractor comes with 2-post ROPS (Rollover Protective Structures) feature. It is a safety feature that offers protection for the operator in case a rollover happens, and it’s common on agricultural tractors. In addition, it also features differential wet disc brakes and power steering.
The fuel tank capacity of the John Deere 4300 compact utility tractor is 10 gallons (37.9 liters or 8.3 imperial gallons). With this large of a capacity, the fuel tank should be enough to supply the needs of this rugged tractor to help with your activities.
Several types of suitable attachments are feasible for this tractor model. There is a 60 inches (1520 mm) mid-mounted mower deck and 72 inches (1820 mm) mid-mounted mower deck. You can get loaders and backhoes as well.
Discover even more details about the John Deere 4300 compact utility tractor, including its features, specs, price, serial numbers, and others below.
John Deere 4300 Price
- John Deere 4300 Original Price: $8,400 (1999)
Related Post
- John Deere 1070
- John Deere 2320
- John Deere 2555
- John Deere 4020
- John Deere 4110
- John Deere 4310
- John Deere 5103
- John Deere 5105
- John Deere B
John Deere 4300 Serial Number
1998 | 130000 |
1999 | 230000 |
2000 | 330000 |
2001 | 430000 |
John Deere 4300 Specification
JOHN DEERE 4300 ENGINE | |||||
Engine | Yanmar 3TNE84 diesel 3-cylinder liquid-cooled | ||||
Displacement | 91.3 ci 1.5 L | ||||
Power (gross) | 32.2 hp 24.0 kW | ||||
Fuel system | direct injection | ||||
Air cleaner | dry | ||||
Pre-heating | air heat | ||||
Compression | 18:1 | ||||
Rated RPM | 2700 | ||||
Idle RPM | 950-2810 | ||||
Operating RPM | 950-2700 | ||||
Starter volts | 12 | ||||
Starter power | 1.9 hp 1.4 kW | ||||
Coolant capacity | 6.1 qts 5.8 L | ||||
JOHN DEERE 4300 POWER | |||||
Engine (gross) | 32.2 hp 24.0 kW | ||||
Engine (net) | 30.2 hp 22.5 kW | ||||
Gear PTO (claimed) | 27 hp 20.1 kW | ||||
Hydro PTO (claimed) | 25.5 hp 19.0 kW | ||||
JOHN DEERE 4300 CAPACITY | |||||
Fuel | 10 gal 37.9 L | ||||
Gear Hydraulic system | 6.3 gal 23.8 L | ||||
Hydro Hydraulic system | 6.8 gal 25.7 L | ||||
Front axle | 4.7 qts 4.4 L | ||||
JOHN DEERE 4300 MECHANICAL | |||||
Chassis | 4×2 2WD | ||||
4×4 MFWD 4WD | |||||
Differential lock | mechanical | ||||
Steering | power | ||||
Brakes | differential wet disc | ||||
Cab | Two-post ROPS | ||||
Transmissions | 9-speed partially synchronized | ||||
hydrostatic | |||||
12-speed partially synchronized | |||||
JOHN DEERE 4300 PTO | |||||
Rear PTO | independent | ||||
Clutch | wet disc | ||||
Rear RPM | 540 | ||||
Engine RPM | 540@2700 | ||||
Mid PTO | optional | ||||
Mid RPM | 2100 | ||||
Engine RPM | 2100@2700 | ||||
JOHN DEERE 4300 TRANSMISSION | |||||
Transmission | SyncShift | ||||
Type | partially synchronized | ||||
Gears | 9 forward and 3 reverse | ||||
Clutch | wet discs, one clutch pack with nine four-inch discs | ||||
Oil capacity | 25.2 qts 23.8 L | ||||
JOHN DEERE 4300 DIMENSIONS | |||||
Wheelbase | 68 inches 172 cm | ||||
Length | 117 inches 297 cm | ||||
Width | 50 inches 127 cm | ||||
Clearance (rear axle) | 13.4 inches 34 cm | ||||
JOHN DEERE 4300 WEIGHT | |||||
Max Drawbar | 562 lbs 254 kg | ||||
Max front axle | 3,197 lbs 1450 kg | ||||
Max rear axle | 4,409 lbs 1999 kg | ||||
JOHN DEERE 4300 HEIGHT | |||||
Hood | 53.3 inches 135 cm | ||||
ROPS | 84 inches 213 cm (fixed) | ||||
90 inches 228 cm (folding) | |||||
JOHN DEERE 4300 HYDRAULICS | |||||
Type | open center | ||||
Gear Capacity | 6.3 gal 23.8 L | ||||
Hydro Capacity | 6.8 gal 25.7 L | ||||
Pressure | 2500 psi 172.4 bar | ||||
Valves | 2 | ||||
Pump flow | 8.3 gpm 31.4 lpm | ||||
Total flow | 13.3 gpm 50.3 lpm | ||||
Oil type |
| ||||
Steering flow | 5 gpm 18.9 lpm | ||||
JOHN DEERE 4300 TIRES | |||||
2WD Standard tires (ag) | Front: 5-15. Rear: 11.2-24 | ||||
4WD Standard tires (ag) | Front: 7-14. Rear: 11.2-24 | ||||
2WD Optional tires (ag) | Front: 5-15. Rear: 12.4-24 | ||||
4WD Optional tires (ag) | Front: 7-16. Rear: 12.4-24 | ||||
Lawn/turf front | 25-10.50LLx15 | ||||
27×8.5-15 | |||||
7.00-14 (4WD) | |||||
Lawn/turf rear | 41LLx18.00-16 | ||||
11.2-24 | |||||
41×14.00-20 | |||||
Industrial front | 25×8.50-14 | ||||
Industrial rear | 15.00-19.5 | ||||
JOHN DEERE 4300 ELECTRICAL | |||||
Ground | negative | ||||
Charging system | alternator | ||||
Charging amps | 40 |
John Deere 4300 Attachments
60″ MOWER DECK | |
Type | mid-mount John Deere |
Cutting width | 60 inches 152 cm |
72″ MOWER DECK | |
Type | mid-mount John Deere |
Cutting width | 72 inches 182 cm |
JOHN DEERE 420 LOADER | |
Height (to pin) | 87.6 inches 222 cm |
Clearance, dumped bucket | 66.1 inches 167 cm |
Dump reach | 30.3 inches 76 cm |
Dump angle | 43° |
Reach at ground | 53.6 inches 136 cm |
Rollback angle | 23° |
Breakout force (at 800mm) | 2,693 lbs 1221 kg |
Lift to full height (at 800mm) | 1,195 lbs 542 kg |
Raise time to height | 2.9 s |
Bucket dump time | 1.6 s |
Lowering time | 2.4 s |
Rollback time | 2.2 s |
JOHN DEERE 430 LOADER | |
Height (to pin) | 101.4 inches 257 cm |
Clearance, dumped bucket | 78.3 inches 198 cm |
Dump reach | 25.6 inches 65 cm |
Dump angle | 45° |
Reach at ground | 57.5 inches 146 cm |
Rollback angle | 30° |
Breakout force (at 800mm) | 3,299 lbs 1496 kg |
Lift to full height (at 800mm) | 1,259 lbs 571 kg |
Raise time to height | 3.5 s |
Bucket dump time | 1.8 s |
Lowering time | 2.5 s |
Rollback time | 2.3 s |
JOHN DEERE 48 BACKHOE | |
Backhoe type | John Deere 48 Backhoe |
Weight | 1517 lbs 688 kg |
Transport height | 81 inches 205 cm |
2-Foot flat digging depth | 102 inches 259 cm |
Reach from pivot | 133 inches 337 cm |
Loading height | 82 inches 208 cm |
Bucket Rotation | 180 |
Swing Arc | 180 |
Bucket force | 3730 lbs 1691 kg |
Dipperstick force | 2435 lbs 1104 kg |
John Deere 4300 Tractor Review Video
Related Post
- John Deere G110
- John Deere GT225
- John Deere GT262
- John Deere GX75
- John Deere GX335
- John Deere GX345
- John Deere L130
- John Deere LA100
- John Deere LA140
- John Deere LA175
Conclusion
The best tractor for each user will depend entirely on their intended use. In the diverse world of compact tractors, the John Deere 4300 compact utility tractor is one of the more popular units with solid capability, high reliability, and versatility.
