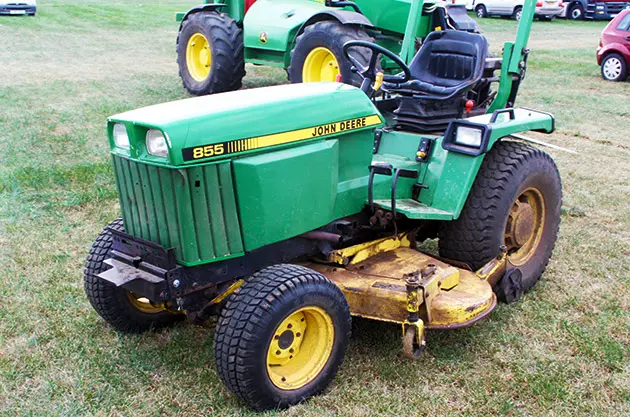

John Deere 855 Tractor – John Deere 855 Tractor is a popular tractor that is used frequently for landscaping and gardening business. A lot of users have said that the tractor has good reliability and construction material that can support heavy-duty works on the field. The vehicle itself is equipped with a diesel engine from Yanmar. The engine uses a 3-cylinder design with a 1.0 L of displacement capacity. The claimed power output is around 14.2 kW or about 19 hp.
There are two different chassis options for the John Deere 855 Tractor, including the conventional 4×2 2WD chassis and the 4×4 MFWD 4WD chassis. The vehicle also uses a mechanical rear differential lock. For the steering feature, it is also equipped with a power steering mode. Meanwhile, the braking system uses a differential hydraulic wet disc for the safety of operation. The transmission system uses hydrostatic transmission for the versatility of movement for the vehicle.
The capacity of the fuel tank from the John Deere 855 Tractor can store up to 25 L of fuel, which is about 6.6 US gallons. The hydraulic system also requires 17 L of fluid to work properly. Meanwhile, on the aspect of attachments, the vehicle can use the 60-inches and 72-inches mid-mount mower deck for various outdoor jobs. There are also different blade sizes available as well as backhoe and front-end loader.
Now, you can continue to find out more about the John Deere 855 Tractor and other aspects of the vehicle. For instance, the information below this article will tell you about the current price of the tractor, complete specifications, available attachments, vehicle weight, features, user reviews, and tractor images. Hopefully, you can use and learn those aspects to see if the tractor can meet your expectations.
Deere & Company is the producer of heavy machinery that is branded with John Deere. The company was founded in Grand Detour, Illinois, about 184 years ago. Currently, they have moved the headquarters to the city of Moline, Illinois. They produce various types of outdoor equipment, including harvesters, garden tractors, lawn tractors, drills, loaders, excavators, and others. As one of the most valuable heavy machinery companies in the world, the company’s stock is also being treated in the New York Stock Exchange.
John Deere 855 Price
- Original Price: $16,000 (1998)
Related Post
- John Deere LT160
- John Deere LT180
- John Deere LX172
- John Deere LX188
- John Deere LX279
- John Deere STX38 Black Deck
- John Deere X360
- John Deere X595
- John Deere 155C
- John Deere 175 Hydro
John Deere 855 Serial Numbers
| 1986 | M00855A360001 (2WD) |
| 1987 | M00855A420001 (2WD) |
| 1988 | M00855A475001 (2WD) |
| 1989 | M00855A595001 (2WD) |
| 1990 | M00855A010001 (2WD) |
| 1991 | M00855A100001 (2WD) |
| 1992 | LV0855A100700 (2WD) |
| 1993 | LV0855A130000 (2WD) |
| 1994 | LV0855A165001 (2WD) |
| 1995 | LV0855165211 (2WD) |
| 1986 | M00855B360001 (2WD SCV) |
| 1987 | M00855B420001 (2WD SCV) |
| 1988 | M00855B475001 (2WD SCV) |
| 1989 | M00855B595001 (2WD SCV) |
| 1990 | M00855B010001 (2WD SCV) |
| 1991 | M00855B105001 (2WD SCV) |
| 1992 | LV0855B105700 (2WD SCV) |
| 1993 | LV0855B135000 (2WD SCV) |
| 1994 | LV0855B170001 (2WD SCV) |
| 1995 | LV0855B170123 (2WD SCV) |
| 1986 | M00855C360001 (4WD) |
| 1987 | M00855C420001 (4WD) |
| 1988 | M00855C475001 (4WD) |
| 1989 | M00855C595001 (4WD) |
| 1990 | M00855C010001 (4WD) |
| 1991 | M00855C120001 (4WD) |
| 1992 | LV0855C120700 (4WD) |
| 1993 | LV0855C150000 (4WD) |
| 1994 | LV0855C175001 (4WD) |
| 1995 | LV0855C175141 (4WD) |
| 1986 | M00855D360001 (4WD SCV) |
| 1987 | M00855D420001 (4WD SCV) |
| 1988 | M00855D475001 (4WD SCV) |
| 1989 | M00855D010001 (4WD SCV) |
| 1990 | M00855D010001 (4WD SCV) |
| 1991 | M00855D125001 (4WD SCV) |
| 1992 | LV0855D125700 (4WD SCV) |
| 1993 | LV0855D160000 (4WD SCV) |
| 1994 | LV0855D180001 (4WD SCV) |
| 1995 | LV0855D181952 (4WD SCV) |
| 1996 | LV0855E190001 |
| 1997 | LV0855E200001 |
| 1998 | LV0855E300001 |
John Deere 855 Specification
| JOHN DEERE 855 DIESEL ENGINE | |
| Engine | Yanmar 3TN75RJ diesel 3-cylinder liquid-cooled 60.7 ci [1.0 L] |
| Bore/Stroke | 2.95×2.95 inches [75 x 75 mm] |
| Power | 24 hp [17.9 kW] |
| Air cleaner | dry element |
| Pre-heating | air heater |
| Compression | 17.8:1 |
| Rated RPM | 3200 |
| Operating RPM | 1400-3425 |
| Starter volts | 12 |
| Oil capacity | 3.8 qts [3.6 L] |
| Coolant capacity | 4 qts [3.8 L] |
| JOHN DEERE 855 TRANSMISSION | |
| Transmission | Sunstrand Series 17 |
| Type | hydrostatic |
| Gears | infinite (2-range) forward and reverse |
| Oil capacity | 18 qts [17.0 L] |
| Hydrostatic transmission controlled by two right-side foot pedals. Cruise control is standard. | |
| JOHN DEERE 855 CAPACITY | |
| Fuel | 6.6 gal [25.0 L] |
| Hydraulic system | 4.5 gal [17.0 L] |
| Front axle | 2.25 qts [2.1 L] |
| JOHN DEERE 855 TRACTOR 3 POINT HITCH | |
| Rear Type | I |
| Control | position control |
| Rear lift (at 24″/610mm) | 785 lbs [356 kg] |
| JOHN DEERE 855 HYDRAULICS | |
| Type | open center |
| Capacity | 4.5 gal [17.0 L] |
| Pressure | 2050 psi [141.3 bar] |
| Mid valves | 2* |
| Total flow | 5.6 gpm [21.2 lpm] |
| JOHN DEERE 855 POWER | |
| Engine | 24 hp [17.9 kW] |
| PTO (claimed) | 19 hp [14.2 kW] |
| JOHN DEERE 855 TIRES | |
| 2WD Standard tires (ag) | Front: 4.00×15. Rear: 9.5×16 |
| 4WD Standard tires (ag) | Front: 6-12. Rear: 9.5×16 |
| Lawn/turf front | 23×8.50-12 |
| Lawn/turf rear | 33×12.50-15 |
| JOHN DEERE 855 PTO | |
| Rear PTO | independent |
| Rear RPM | 540 |
| Engine RPM | 540@3200 |
| Mid PTO | independent |
| Mid RPM | 2100 |
| Engine RPM | 2100@3200 |
| JOHN DEERE 855 MECHANICAL | |
| Chassis | 4×2 2WD |
| 4×4 MFWD 4WD | |
| Differential lock | standard |
| Steering | power |
| Brakes | differential hydraulic wet disc |
| Cab | Two-post Roll-Gard ROPS. Optional canopy and high ROPS with extra headroom. Optional weather enclosure. |
| JOHN DEERE 855 DIMENSIONS | |
| 2WD Weight | 1790 lbs [811 kg] |
| 4WD Weight | 1870 lbs [848 kg] |
| Wheelbase | 64 inches [162 cm] |
| Length | 110.3 inches [280 cm] |
| Width | 42.6 inches [108 cm] * |
| 51.3 inches [130 cm] * | |
| Height (hood) | 52.3 inches [132 cm] |
| Height (ROPS) | 75.6 inches [192 cm] |
| 2WD Clearance (drawbar) | 12.68 inches [32 cm] |
| 4WD Clearance (drawbar) | 9.9 inches [25 cm] |
| 2WD turn radius | 8.5 feet [2.6 m] |
| 7.4 feet [2.3 m] (with brakes) | |
| 4WD turn radius | 8.8 feet [2.7 m] |
| 8.0 feet [2.4 m] (with brakes) | |
| JOHN DEERE 855 ELECTRICAL | |
| Ground | negative |
| Charging amps | 40 |
John Deere 855 Attachements
| 60″ MOWER DECK | |
| Type | mid-mount John Deere |
| 3-blade with hydraulic lift | |
| Cutting width | 60 inches [152 cm] |
| Weight | 325 lbs [147 kg] |
| Overall width | 72.5 inches [184 cm] |
| Cut height | 1.5 to 7.8 inch [3 to 19 cm] |
| 72″ MOWER DECK | |
| Type | mid-mount John Deere |
| 3-blade with hydraulic lift | |
| Cutting width | 72 inches [182 cm] |
| Overall width | 85 inches [215 cm] |
| Cut height | 1.5 to 8.6 inch [3 to 21 cm] |
| LOADER | |
| Loader type | John Deere 70A |
| Height (to pin) | 77.3 inches [196 cm] |
| Clearance, dumped bucket | 62 inches [157 cm] |
| Dump reach | 27.5 inches [69 cm] |
| Dump angle | 45 |
| Reach at ground | 47.8 inches [121 cm] |
| Rollback at ground | 22 |
| Breakout force (lift) | 1,300 lbs [589 kg] |
| Breakout force (bucket) | 1,570 lbs [712 kg] |
| Lift to full height (at pin) | 700 lbs [317 kg] |
| Bucket width | 48 inches [121 cm] |
| Raise time to height | 3.2 s |
| Bucket dump time | 2.2 s |
| Lowering time | 2.0 s |
| Rollback time | 2.2 s |
| BACKHOE | |
| Backhoe type | John Deere 7 |
| Weight | 787 lbs [356 kg] |
| 2-Foot flat digging depth | 90 inches [228 cm] |
| Reach from pivot | 114 inches [289 cm] |
| Loading height | 70 inches [177 cm] |
| Bucket force | 1,945 lbs [882 kg] |
| Dipperstick force | 1,095 lbs [496 kg] |
John Deere 855 Review Video
Related Post
- John Deere 322
- John Deere 330
- John Deere 445
- John Deere 970
- John Deere 2010
- John Deere 2020
- John Deere D130
- John Deere GT245
- John Deere L108
Conclusion
Hopefully, the information about the John Deere 855 Tractor along with the complete specifications of the vehicle can help you understand the tractor even more. We also hope that the tractor can manage your needs on your lawn and gardening management business.
