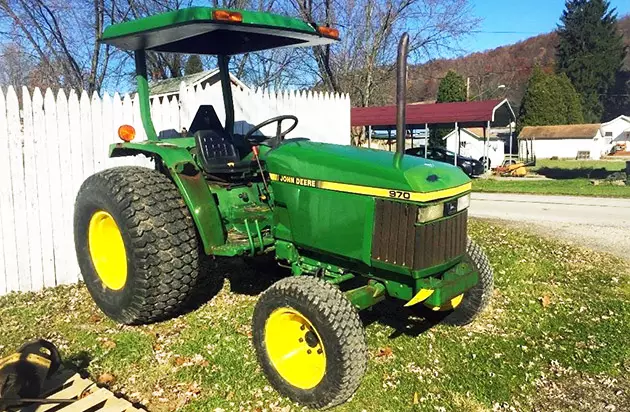

John Deere 970 Compact Utility Tractor – John Deere 970 Compact Utility Tractor is an outdoor equipment from John Deere that is equipped with a diesel engine from Yanmar. The diesel engine itself has the 4-cylinder design as well as a liquid-cooling feature to maintain a low temperature when the vehicle is being operated. The capacity of the engine is around 1.8 L and it can produce up to 33 hp or about 24.6 kW of power. The power output can be reached at the maximum speed rating of 2600 RPM.
The chassis options for the John Deere 970 Compact Utility Tractor include the 4×2 2WD and a 4×4 MFWD 4WD. The transmission system has 9 forward gears as well as 2 reverse gears for the movement versatility of the vehicle. Meanwhile, the oil capacity is around 20.8 L or about 22qts. The weight of the vehicle ranges from 2670 to 3045 pounds depending on the variant.
There are also a lot of aftermarket attachments that can be used for the John Deere 970 Compact Utility Tractor. For instance, the manufacturer has made backhoe, front-end loader, and mower deck available to make the outdoor jobs easier. Meanwhile, the vehicle also has a fuel tank that can contain up to 32.2 L of liquid fuel. The hydraulic system requires at least 20.8 L of fluid.
Therefore, all you need do now to understand more about the John Deere 970 Compact Utility Tractor is to read about the specific points of the vehicle and see if the tractor can be suitable for your business needs. You can also find out about the current price, available spare parts, available attachments, and other aspects of the vehicle. All those aspects are important to understand since they will tell you if the tractor can meet your expectations.
John Deere is the brand of heavy equipment produced by Deere & Company. John Deere is also the name of the businessman that founded the company in 1837. Currently, the company has more than 69,000 employees working for the company and has gained a revenue of more than US$39 billion. Their products range from lawn tractors to harvesters and excavators. There is a lot of different tractor series offered by the company for their customers around the world.
John Deere 970 Tractor Price in the USA
- Original Price: $16,500 USD
Related Post
- John Deere LT160
- John Deere LT180
- John Deere LX172
- John Deere LX188
- John Deere LX279
- John Deere STX38 Black Deck
- John Deere X360
- John Deere X595
- John Deere 155C
- John Deere 175 Hydro
John Deere 970 Tractor Serial Numbers
| 1989 | 1001 |
| 1990 | 1338 |
| 1990 | 2242 (Power steer) |
| 1991 | 100001 |
| 1992 | 110001 |
| 1993 | 120001 |
| 1994 | 130001 |
| 1995 | 140001 |
| 1996 | 150001 |
| 1997 | 160001 |
| 1998 | 170001 |
John Deere 970 Specification
| JOHN DEERE 970 HISTORY | |
| Distributor | John Deere |
| Manufacturer | Yanmar |
| Factory | Japan |
| Original price (USD) | $16,500 (1998) |
| JOHN DEERE 970 GASOLINE ENGINE | |
| ENGINE | Yanmar 4TN82 diesel 4-cylinder liquid-cooled 110.8 ci [1.8 L] |
| Bore/Stroke | 3.22×3.39 inches [82 x 86 mm] |
| Fuel system | direct injection |
| Air cleaner | dry |
| Compression | 18.1:1 |
| Rated RPM | 2600 |
| Operating RPM | 800-2775 |
| Starter volts | 12 |
| Oil capacity | 5.6 qts [5.3 L] |
| Oil change | 200 h |
| Coolant capacity | 6.1 qts [5.8 L] |
| JOHN DEERE 970 TRANSMISSION | |
| Transmission | collar-shift |
| Gears | 9 forward and 2 reverse |
| Clutch | dry |
| Oil capacity | 22 qts [20.8 L] |
| JOHN DEERE 970 3 POINT HITCH | |
| Rear Type | I |
| Control | position control |
| Rear lift | 2020 lbs [916 kg] |
| JOHN DEERE 970 PTO | |
| Rear PTO | live (two-stage clutch) |
| Rear RPM | 540 |
| Mid PTO | optional |
| Mid RPM | 2100 |
| JOHN DEERE 970 POWER | |
| Engine (net) | 33 hp [24.6 kW] |
| PTO (claimed) | 30 hp [22.4 kW] |
| JOHN DEERE 970 HYDRAULICS | |
| Type | open center |
| Capacity | 5.5 gal [20.8 L] |
| Pressure | 2250 psi [155.1 bar] |
| Pump flow | 8.7 gpm [32.9 lpm] |
| JOHN DEERE 970 CAPACITY | |
| Fuel | 8.5 gal [32.2 L] |
| Hydraulic system | 5.5 gal [20.8 L] |
| JOHN DEERE 970 MECHANICAL | |
| Chassis | 4×2 2WD |
| 4×4 MFWD 4WD | |
| Final drives | planetary |
| Steering | manual |
| Brakes | wet disc |
| Cab | Two-post ROPS. |
| JOHN DEERE 970 DIMENSIONS | |
| 2WD Weight | 2,670 lbs [1211 kg] |
| 4WD Weight | 3,045 lbs [1381 kg] |
| Wheelbase | 68.9 inches [175 cm] |
| Length | 123 inches [312 cm] |
| Min Width | 57.8 inches [146 cm] |
| Max Width | 71.5 inches [181 cm] |
| Height (hood) | 53.2 inches [135 cm] |
| Height (ROPS) | 84.8 inches [215 cm] |
| Height (exhaust) | 77.2 inches [196 cm] |
| Clearance (front axle) | 14.6 inches [37 cm] |
| Front tread | 47.7 to 63.6 inches (2WD) [121 to 161 cm] (2WD) 48.7 inches [123 cm] (4WD) |
| Rear tread | 45.3 to 59 inches [115 to 149 cm] |
| JOHN DEERE 970 TIRES | |
| Standard tires (ag) | Front: 5.50-16. Rear: 12.4-28 (2WD) |
| Front: 7-16. Rear: 13.6-24 (4WD) | |
| Lawn/turf front | 27×8.50-15 |
| Lawn/turf rear | 44×18.00-20 |
| JOHN DEERE 970 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 20 |
| JOHN DEERE 970 BATTERY | |
| Number | 1 |
| Cold-cranking amps | 550 |
| Volts | 12 |
John Deere 970 Attachments
| 72.8″ MOWER DECK | |
| Type | mid-mount John Deere 72 |
| 3-blade with hydraulic lift | |
| Cutting width | 72.8 inches [184 cm] |
| Weight | 448 lbs [203 kg] |
| Overall width | 85 inches [215 cm] |
| Cut height | 1.5 to 8.6 inch [3 to 21 cm] |
| BLADE | |
| Type | front-mount John Deere 390 |
| Width | 84 inches [213 cm] |
| Height | 25.5 inches [64 cm] |
| Lift height | 12 inches [30 cm] |
| Cut depth | 5.5 inches [13 cm] |
| Weight | 725 lbs [328 kg] |
| Lift | hydraulic |
| Angle | hydraulic |
| LOADER | |
| Loader type | John Deere 80 |
| Height (to pin) | 95.9 inches [243 cm] |
| Clearance, dumped bucket | 78 inches [198 cm] |
| Dump reach | 22.8 inches [57 cm] |
| Dump angle | 37 |
| Reach at ground | 51.4 inches [130 cm] |
| Rollback at ground | 22 |
| Breakout force (lift) | 2,340 lbs [1061 kg] |
| Breakout force (bucket) | 2,045 lbs [927 kg] |
| Lift to full height (at pin) | 1,195 lbs [542 kg] |
| Bucket width | 53 inches [134 cm] |
| Raise time to height | 3.6 s |
| Bucket dump time | 3.0 s |
| Lowering time | 2.5 s |
| Rollback time | 1.9 s |
| BACKHOE | |
| Backhoe type | John Deere 8A |
| Weight | 950 lbs [430 kg] |
| 2-Foot flat digging depth | 102 inches [259 cm] |
| Reach from pivot | 133 inches [337 cm] |
| Loading height | 82 inches [208 cm] |
| Bucket force | 3,200 lbs [1451 kg] |
John Deere 970 Tractor Review Video
Related Post
- John Deere 322
- John Deere 330
- John Deere 445
- John Deere 855
- John Deere 2010
- John Deere 2020
- John Deere D130
- John Deere GT245
- John Deere L108
Conclusion
We hope that the information about the John Deere 970 Compact Utility Tractor along with the specifications can make you understand the vehicle and whether it can be used for your needs. Make sure to compare this tractor to other products from other manufacturers to get the one that really suits you best.
