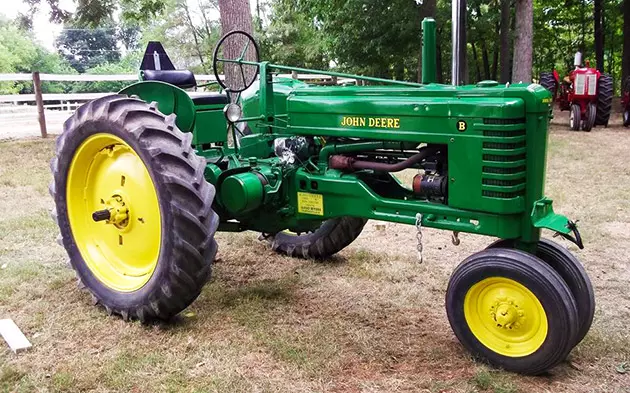

John Deere B Row-Crop tractor is the product you will most likely found in a farm or in small-scaled plantation. The tractor is specifically designed to be the “mini version” of John Deere A, which was essentially larger and more powerful. The John Deere B is basically smaller, but has the same function, and the features are almost identical. The tractor has a long production history to explain, though.
Before eventually hitting the market, this particular tractor had gone through more than 17 years of production and development. Essentially, the tractor is divided into three different types. The first one is the original John Deere B Row-Crop tractor, which was first manufactured back in the 1938. The tractor was considered as the “unstyled” one as it does not have a lot of additional features, and it had a very simple, straight-forward design.
The evolution of John Deere B Row-Crop tractor continued to the second type in the late 1930s to early 1940s. There was a production for John Deere B tractor with the number 60000, and this product was labeled as the “early-styled” B tractor. The product was certainly a better version than the previous unstyled John Deere B, in term of its design and function as well.
After the war was over, probably around 1947, the third generation of John Deere B Row-Crop tractor is launched. The tractor number was 201000, and this unit was dubbed as the “late-styled” John Deere B product. With all the evolution and progressed technology over the year, this latest version of the tractor was considered to be the best of all.
Of course, there will be a lot of people who are interested in this John Deere B Row-Crop tractor after finding out its manufacture history and evolution. The information about the price, the dimension, weight, features, specs, and many more should be found on this post. There will be also some images of the tractor to help you find the detailed look of its design.
John Deere B Tractor Price
- Original Price: $7,995 USD (1995)
Related Post
- John Deere 1070
- John Deere 2320
- John Deere 2555
- John Deere 4020
- John Deere 4110
- John Deere 4300
- John Deere 4310
- John Deere 5103
- John Deere 5105
John Deere B Tractor Serial Numbers
| 1935 | 1000 |
| 1936 | 12012 |
| 1937 | 27389 |
| 1938 | 46175 |
| 1939 | 60000 |
| 1940 | 81000 |
| 1941 | 96000 |
| 1942 | 118721 |
| 1943 | 136315 |
| 1944 | 149219 |
| 1945 | 167700 |
| 1946 | 179788 |
| 1947 | 191303 |
| 1948 | 209295 |
| 1949 | 230044 |
| 1950 | 253025 |
| 1951 | 275242 |
| 1952 | 293030 |
| Final | 310772 |
John Deere B Tractor Specification
| JOHN DEERE B GASOLINE ENGINE | |
| Displacement | 149 ci 2.4 L |
| Bore/Stroke | 4.25×5.25 inches 108 x 133 mm |
| Fuel system | Marvel-Schebler DLTX-10 |
| Cooling system | thermo-siphon |
| Air cleaner | oil bath |
| Compression | 4.71:1 |
| Rated RPM | 975 |
| Firing order | 1-2 |
| Starter type | hand-crank |
| Oil capacity | 7 qts 6.6 L |
| Coolant capacity | 22 qts 20.8 L |
| Sparkplug gap | 0.030 inches 0.762 mm |
| Point gap | 0.015 inches 0.381 mm |
| Intake valve clearance | 0.020 inches 0.508 mm hot |
| Exhaust valve clearance | 0.020 inches 0.508 mm hot |
| JOHN DEERE B POWER | |
| Drawbar (claimed) | 12 hp 8.9 kW |
| Belt (claimed) | 16 hp 11.9 kW |
| Plows | 2 (10-inch) |
| Drawbar (tested) | 11.80 hp 8.8 kW |
| Belt (tested) | 16.01 hp 11.9 kW |
| JOHN DEERE B TRANSMISSION | |
| Manufacturer | John Deere |
| Type | unsynchronized gear |
| Gears | 4 forward and 1 reverse |
| Clutch | dry disc |
| JOHN DEERE B TIRES | |
| Ag front | 22×3.25 (steel) |
| Ag rear | 48×5.25 (steel) |
| JOHN DEERE B BELTY PULLEY | |
| Diameter | 9.6875 inches 24 cm |
| Width | 7.25 inches 18 cm |
| RPM | 1250 |
| Speed | 3110 ft/min 947.93 meters/min |
| JOHN DEERE B PTO | |
| Rear PTO | transmission |
| Rear RPM | 540 |
| JOHN DEERE B MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | manual |
| Brakes | differential mechanical expanding shoe |
| Cab | Open operator station with pressed steel seat. |
| Transmission | 4-speed unsynchronized gear |
| JOHN DEERE B DIMENSIONS | |
| Length | 120.5 inches 306 cm |
| Width | 85 inches 215 cm |
| Height (hood) | 56 inches 142 cm |
| Weight | 3,275 lbs 1485 kg |
| Rear tread | 56 to 84 inches 142 to 213 cm |
John Deere B Tractor Review Video
Related Post
- John Deere G110
- John Deere GT225
- John Deere GT262
- John Deere GX75
- John Deere GX335
- John Deere GX345
- John Deere L130
- John Deere LA100
- John Deere LA140
- John Deere LA175
Conclusion
Well, that is basically all about John Deere B Row-Crop tractor, including the information about the price, specs, attachment, as well as the review. There is a comment box below that you can use to inform us about your inquiries or questions related to the post. We will certainly answer your questions and reach out back to you as soon as possible. Thank you for reading this post.
