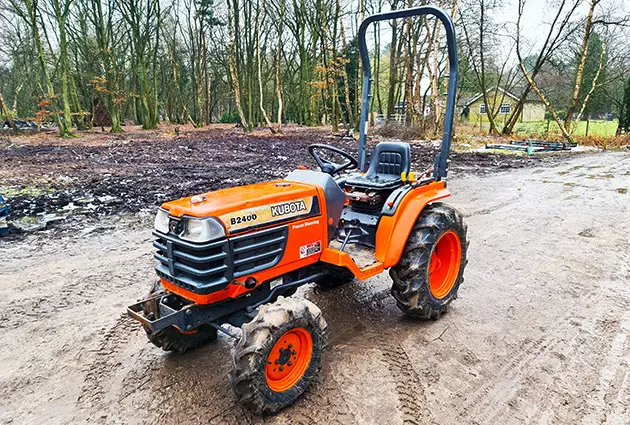

Orange as its color, Kubota B2400 Compact Utility Tractor seems nothing but so dazzling as a tractor. It may not be designed for heavy duties, but you will never be disappointed with the manufacturer’s effort to make this Kubota tractor becomes what it is required by the market. Wondering what is the specification of this tractor? Make sure you read this article. You will find the answer.
First of all, let’s talk about the engine of Kubota B2400 Compact Utility Tractor. This Kubota tractor equips a self-made D1105-D10 Kubota engine. The engine is equipped with 3 cylinders and is using liquid coolant to cool down the temp. Its displacement is 68.5 ci or equal to 1.1 L.
It is a tractor that operates on diesel, and to accommodate the user, a 6.3 gallon fuel tank is prepared (equal to 23.8 L). With such capacity of fuel tank, the engine can produce a powerful 24 HP (equal to 17.9 kW) at rated RPM of 2,600.
Talking about its mechanical aspects, Kubota B2400 Compact Utility Tractor is equipped with 4×2 2WD or 4×4 MFWD 4WD as its chassis. It uses power steering type and wet disc mode is used for its braking system. To protect you from rolling over, the ROPS (Roll Over Protection System) cab is presented as a feature.
As for the transmission, this tractor is working with hydrostatic transmission type. In its gear box you will have 2-range infinite transmission gears for both forward and reverse movement. Hence, you can get “Low” and “High” speed for both movements.
For “Low” speed, your Kubota B2400 Compact Utility Tractor will be ready to go forward up to 3.5 miles per hour (equal to 5.6 km per hour). While for the reversed movement, it also has the same maximum speed as mentioned.
The tractor weighs around 580 kg. This will be measured as 1,280 lbs. too. Quite hefty for its class, but that means this Kubota will be ready to tackle heavier duties than other tractors within the same class.
Regarding its attachments, if you purchase Kubota B2400 Compact Utility Tractor you will get a 54” and 60” mower deck which can be mounted in the medium part of the tractor. Aside from that, you will also get a snowblower, backhoe, and a front-end loader. Indeed, this is a complete package.
Kubota B2400 Price
- Original Price: $9,850 USD
Related Post
- Kubota B7100
- Kubota B7800
- Kubota L185
- Kubota L3010
- Kubota ZD21
- Kubota B2710
- Kubota B7500
- Kubota L4701
- Kubota B2920
Kubota B2400 Specification
| KUBOTA B2400 DIESEL ENGINE | |
| Engine | Kubota D1105-D10 diesel 3-cylinder liquid-cooled |
| Displacement | 68.5 ci 1.1 L |
| Bore/Stroke | 3.07×3.09 inches 78 x 78 mm |
| Power (gross) | 24 hp 17.9 kW |
| Fuel system | indirect injection |
| Rated RPM | 2600 |
| Torque | 50 lb-ft 67.8 Nm |
| Starter volts | 12 |
| Oil capacity | 3.6 qts 3.4 L |
| Coolant capacity | 3.6 qts 3.4 L |
| KUBOTA B2400 TRANSMISSION | |
| Type | hydrostatic |
| Gears | infinite (2-range) forward and reverse |
| Oil capacity | 6.34 qts 6.0 L |
| KUBOTA B2400 HYDRAULICS | |
| Type | open center |
| Capacity | 3.2 gal 12.1 L |
| Pump flow | 5.8 gpm 22.0 lpm |
| KUBOTA B2400 CAPACITY | |
| Fuel | 6.3 gal 23.8 L |
| Hydraulic system | 3.2 gal 12.1 L |
| KUBOTA B2400 TRACTOR HITCH | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 1,280 lbs 580 kg |
| Rear lift (at 24″/610mm) | 1,015 lbs 460 kg |
| KUBOTA B2400 POWER | |
| Engine (gross) | 24 hp 17.9 kW |
| PTO (claimed) | 18 hp 13.4 kW |
| KUBOTA B2400 TIRES | |
| Ag front | 6.50-10 (2WD) |
| 7.00-12 (4WD) | |
| Ag rear | 11.2-16 |
| KUBOTA B2400 PTO | |
| Rear PTO | live |
| Rear RPM | 540 (1.375) |
| Engine RPM | 540@2584 |
| Mid RPM | 2537* |
| Engine RPM | 2537@2600 |
| KUBOTA B2400 MECHANICAL | |
| Chassis | 4×2 2WD |
| 4×4 MFWD 4WD | |
| Steering | power |
| Brakes | wet disc |
| Cab | Two-post ROPS. |
| Transmission | hydrostatic |
| KUBOTA B2400 DIMENSIONS | |
| Wheelbase | 59.4 inches 150 cm |
| Length | 91.7 inches 232 cm |
| Width | 46.3 inches 117 cm |
| Height | 52.9 inches 134 cm * |
| Height (ROPS) | 77.4 inches 196 cm |
| Weight | 1570 lbs 712 kg |
| Ground clearance | 12.8 inches 32 cm |
| 4WD Front tread | 32.9 inches 83 cm |
| Rear tread | 35 to 41.9 inches 88 to 106 cm |
| KUBOTA B2400 ELECTRICAL | |
| Ground | negative |
| Battery CCA | 390 |
| Battery volts | 12 |
Kubota B2400 Attachments
| 54″ MOWER DECK | |
| Type | mid-mount Kubota |
| Cutting width | 54 inches 137 cm |
| 50″ SNOW BLOWER | |
| Type | front-mount Kubota B2650 |
| Clearing width | 50 inches 127 cm |
| 60″ SNOW BLOWER | |
| Type | front-mount Kubota B2660 |
| Clearing width | 60 inches 152 cm |
| KUBOTA LA301 LOADER | |
| Height (to pin) | 70.5 inches 179 cm |
| Clearance, dumped bucket | 52 inches 132 cm |
| Dump reach | 25.4 inches 64 cm |
| Dump angle | 45° |
| Reach at ground | 51 inches 129 cm |
| Rollback angle | 24° |
| Breakout force (lift) | 1150 lbs 521 kg |
| Lift to full height (at pin) | 660 lbs 299 kg |
| KUBOTA LA351 LOADER | |
| Height (to pin) | 70.5 inches 179 cm |
| Clearance, dumped bucket | 51.6 inches 131 cm |
| Dump reach | 25 inches 63 cm |
| Dump angle | 45° |
| Reach at ground | 52 inches 132 cm |
| Rollback angle | 24° |
| Breakout force (lift) | 1335 lbs 605 kg |
| Lift to full height (at pin) | 770 lbs 349 kg |
| KUBOTA B4672 BACKHOE | |
| Backhoe type | Kubota B4672 Backhoe |
Kubota B2400 Review Video
Related Post
Conclusion
That’s the details and specs of Kubota B2400 Compact Utility Tractor. If you have any inquiries, feel free to ask us through the comment section below. We will try to reach to you back as soon as possible. Thank you for visiting this website!
