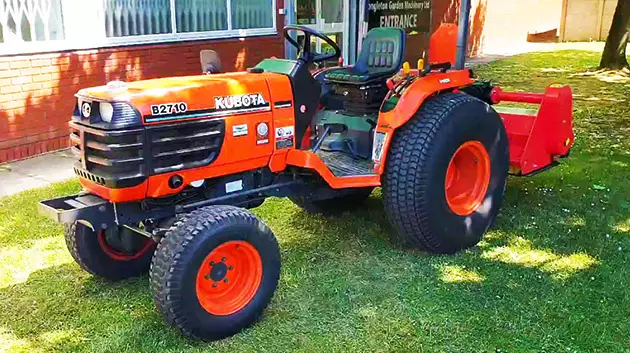

Kubota B2710 compact utility tractor is Kubota-manufactured four-wheel drive (4WD) power equipment. It is included in the company’s B series, which production years span from 2000 to 2005. This particular series is intended to provide high comfort, great versatility, and outstanding power. Available with easily attachable and detachable attachments, this tractor makes an ideal unit for farmers and operators who want capable machinery to help them execute a wide range of farming, landscaping, and gardening tasks.
In line with its power and capability, Kubota B2710 has quite a large dimension. It is measured at 99.2 inch (2,520 mm) of length, 53.7 inch (1,365 mm) of width, and 91.9 inch (1,665 mm) of height. It weighs approximately 1,857 pounds (842 kg) and has a wheelbase of 65.6 inch (1,665 mm).
Kubota B2710 compact utility tractor comes with 1.3 L (81.5 cubic inch or 1,335 cm2) 4-cylinder naturally aspirated (NA) Kubota V1305-D18 diesel engine. The engine is equipped with cylinder bore in the size of 2.99 inch (76 mm) and piston stroke in the size of 2.9 inch (73.6 mm). The amount of gross power it can produce is 27 horsepower (20.1 kW or 27.3 PS), while the amount of PTO power it can generate is 20.1 horsepower (15 kW or 20.4 PS).
Kubota B2710 compact utility tractor features trademarked ‘Bi-Speed Turn’ system, wet disc type brakes, and integral power steering system (linkage type) steering. Its open operator station (OOS) platform is equipped with safety feature of 2-post ROPS. The fuel tank of this tractor has capacity of 6.9 gallons (26 L or 5.7 imperial gallons. Additionally, the unit has hydrostatic type transmission that offers infinite 3-range F and R gears.
With the engine specs and features listed above, the Kubota B2710 compact utility tractor is known to provide long-lasting workable value. Even the second-hand unit of this tractor model generally maintains their value well, so most of the reasonably used ones are worth to purchase. The most significant factor in buying a second-hand Kubota tractor, and other power equipment machines in general, is the seller – so make sure if you do purchase one, you are given guarantee and service support from the dealer.
To discover more about the Kubota B2710 compact utility tractor, read the information and details about its specs, features, price, and more below.
Kubota B2710 Price
- Kubota B2710 Original Price: $10,950 USD
- Kubota B2710 Serial Number: Not Available
Related Post
- Kubota B7100
- Kubota B7800
- Kubota L185
- Kubota L3010
- Kubota ZD21
- Kubota B7500
- Kubota L4701
- Kubota B2400
- Kubota B2920
Kubota B2710 Specification
| KUBOTA B2710 ENGINE | |
| Engine | Kubota V1305-E-D12 diesel 4-cylinder liquid-cooled |
| Displacement | 81.5 ci 1.3 L |
| Bore/Stroke | 2.99×2.90 inches 76 x 74 mm |
| Power (gross) | 27 hp 20.1 kW |
| Air cleaner | dry |
| Rated RPM | 2600 |
| Starter volts | 12 |
| Oil capacity | 4.3 qts 4.1 L |
| Coolant capacity | 4.7 qts 4.4 L |
| KUBOTA B2710 TRACTOR HITCH | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 1655 lbs 750 kg |
| Rear lift (at 24″/610mm) | 1300 lbs 589 kg |
| KUBOTA B2710 POWER | |
| Engine (gross) | 27 hp 20.1 kW |
| PTO (claimed) | 20 hp 14.9 kW |
| KUBOTA B2710 MECHANICAL | |
| Chassis | 4×4 MFWD 4WD |
| Final drives | spur gear |
| Differential lock | mechanical rear |
| Steering | power |
| Brakes | wet disc |
| Cab | Two-post folding ROPS. |
| Transmission | hydrostatic |
| KUBOTA B2710 TRANSMISSION | |
| Type | hydrostatic |
| Gears | infinite (3-range) forward and reverse |
| Oil capacity | 3.8 qts 3.6 L |
| KUBOTA B2710 HYDRAULICS | |
| Type | open center |
| Valves | 2 |
| Pump flow | 6.4 gpm 24.2 lpm |
| Total flow | 9.5 gpm 36.0 lpm |
| Steering flow | 3.1 gpm 11.7 lpm |
| KUBOTA B2710 PTO | |
| Rear PTO | live |
| Rear RPM | 540 (1.375) |
| Engine RPM | 540@2600 |
| Mid PTO | live |
| Mid RPM | 2500 (Kubota 10-spline) |
| Engine RPM | 2500@2578 |
| KUBOTA B2710 DIMENSIONS | |
| Wheelbase | 65.6 inches 166 cm |
| Length | 99.2 inches 251 cm |
| Width | 53.8 inches 136 cm |
| Height (ROPS) | 78.5 inches 199 cm |
| Weight | 1741 lbs 789 kg |
| Ground clearance | 14.6 inches 37 cm |
| KUBOTA B2710 TIRES | |
| Ag front | 7-12 |
| Ag rear | 12.4-16 |
| Lawn/turf front | 24×8.50-14 |
| Lawn/turf rear | 13.6-16 |
| Industrial front | 23×8.50-14 |
| Industrial rear | 12.4-16 |
| KUBOTA B2710 ELECTRICAL | |
| Ground | negative |
| Battery CCA | 443 |
| Battery volts | 12 |
Kubota B2710 Attachments
| KUBOTA LA402 LOADER | |
| Height (to pin) | 81.5 inches 207 cm |
| Clearance, dumped bucket | 65.5 inches 166 cm |
| Dump reach | 26 inches 66 cm |
| Dump angle | 40° |
| Reach at ground | 54.1 inches 137 cm |
| Rollback angle | 26° |
| Breakout force (lift) | 1684 lbs 763 kg |
| Lift to full height (at pin) | 1060 lbs 480 kg |
| Bucket width | 54 inches 137 cm |
Kubota B2710 Review Video
Related Post
Conclusion
The Kubota B2710 compact utility tractor offers larger buckets and higher capacity. It can be worth to consider if you want machinery that can provides wide range of functionality to complete your jobs in shorter time.
