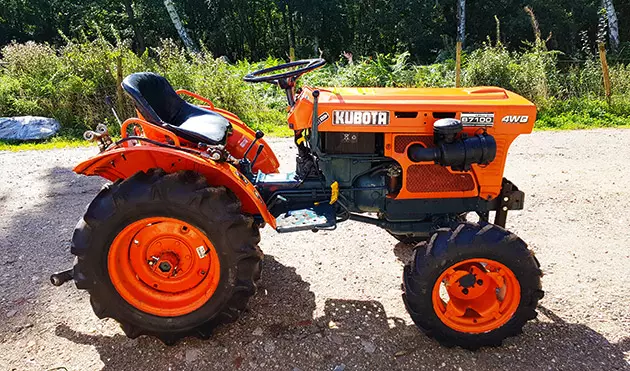

Kubota B7100 compact utility tractor is power equipment produced by Kubota for nine years, from 1976 to 1985. This tractor comes with 0.8 L (46.5 cubic inch) Kubota D750-A diesel engine non-synchronous transmission with 6 F and 2 R gears. It is suitable with different types of attachment such as snowblower, lawnmower, and front loader. In general, it is a well-favored tractor model by public and there are a lot of secondhand units available nowadays.
There are two variants available of Kubota B7100: first is the two-wheel drive (2WD) version, and second is the four-wheel drive (4WD) version. The model has dimensions of 78.7 inch (2,000 mm) for the length, 40 inch (1,010 mm) for its width, and 45.5 inch (1,150 mm) for the height. The wheelbase is measured at 49.5 inch (1,250 mm). The unit weighs approximately 1,080 pounds (489 kg).
Kubota B7100 compact utility tractor, as mentioned above, comes with a liquid-cooling, 3-cylinder, 46.5 cubic inch (762 ml) Kubota D750-A engine. The lengths of its cylinder bore and stroke are 2.68 inch (68 mm) and 2.76 inch (70 mm) respectively. It is capable generating 16 horsepower (11.8 kW) of maximum power @ 3,000 rpm and 31.1 pounds feet (42.2 Nm) of torque @ 1,800 rpm, as well as 22:1 compression ratio rating.
Kubota B7100 compact utility tractor features dry clutch, non-synchronous transmission. This transmission provides 6 F (0.6-8.3 mph or 1.0-13.4 km/h) and 2 R (0.9-4.2 mph or 1.5-6.7 km/h) gears. It comes with manual steering, hydraulic open-center system, internal expanding brake, and foot-operated hydrostatic diff lock, as well as open operator station (OOS) platform.
Considering the model’s production age, you should be aware of its engine condition and mileage if you’re interested in buying one. Before you make any purchase, double check the specification details, attachments, and parts. It’s necessary because a unit can be modified in several parts through the years of production. You may read all the technical information related to Kubota B7100 compact utility tractor beforehand, but remember that the actual unit offered may differ slightly.
Read more about Kubota B7100 compact utility tractor details, including the specs, features, review, and more below.
Kubota B7100 Tractor Price
- Original Price: $5,447 USD
Related Post
- Kubota B7800
- Kubota L185
- Kubota L3010
- Kubota ZD21
- Kubota B2710
- Kubota B7500
- Kubota L4701
- Kubota B2400
- Kubota B2920
Kubota B7100 Tractor Serial Numbers
| 1976 | 10001 |
| 1977 | 13931 |
| 1978 | 36646 |
| 1979 | 54221 |
| 1980 | 64448 |
| 1981 | 70678 |
| 1982 | 74217 |
| 1983 | 76009 |
| 1984 | 77309 |
| 1985 | 78435 |
Kubota B7100 Tractor Specification
| KUBOTA B7100 DIESEL ENGINE | |
| Engine | Kubota D750-A diesel 3-cylinder liquid-cooled 46.5 ci [0.8 L] |
| Bore/Stroke | 2.625×2.75 inches [67 x 70 mm] |
| Power | 16 hp [11.9 kW] |
| Air cleaner | dry |
| Pre-heating | glow plugs |
| Rated RPM | 2800 |
| Starter volts | 12 |
| Starter power | 1.1 hp [0.8 kW] |
| Oil capacity | 4.1 qts [3.9 L] |
| Coolant capacity | 4.9 qts [4.6 L] |
| KUBOTA B7100 POWER | |
| Engine | 16 hp [11.9 kW] |
| PTO (claimed) | 13 hp [9.7 kW] |
| Plows | 1* |
| KUBOTA B7100 TRANSMISSION | |
| Type | unsynchronized gear |
| Gears | 6 forward and 2 reverse |
| Clutch | dry plate |
| Oil capacity | 12.2 qts [11.5 L] |
| KUBOTA B7100 CAPACITY | |
| Fuel | 3.4 gal [12.9 L] |
| Hydraulic system | 3.6 gal [13.6 L] |
| KUBOTA B7100 HYDRAULICS | |
| Type | open center |
| Capacity | 3.6 gal [13.6 L] |
| Pump flow | 3 gpm [11.4 lpm] |
| KUBOTA B7100 3 POINT HITCH | |
| Rear Type | I |
| Rear lift | 400 lbs [181 kg] |
| KUBOTA B7100 TIRES | |
| Standard tires (ag) | Front: 6-12. Rear: 8-16 (4WD) |
| Lawn/turf front | 20.5×8.00-10 |
| Lawn/turf rear | 29×12.00-15 |
| KUBOTA B7100 PTO | |
| Rear PTO | transmission |
| Rear RPM | 540/750/1000 |
| Front RPM | 2800 |
| KUBOTA B7100 BATTERY | |
| Number | 1 |
| Volts | 12 |
| Amp-hours | 45 |
| KUBOTA B7100 MECHANICAL | |
| Chassis | 4×2 2WD (B7100E) |
| 4×4 MFWD 4WD (B7100D) | |
| Differential lock | foot pedal |
| Steering | manual |
| Brakes | differential mechanical expanding shoe |
| Cab | Open operator station. Two-post ROPS. |
| KUBOTA B7100 DIMENSIONS | |
| Weight | 1080 lbs [489 kg] |
| Wheelbase | 49.5 inches [125 cm] |
| Length | 78.75 inches [200 cm] |
| Width | 40 inches [101 cm] |
| Height | 45.5 inches [115 cm] |
| Ground clearance | 11.375 inches [28 cm] (transmission case) |
| Clearance (front axle) | 9.5 inches [24 cm] |
| Front tread | 32.5 inches [82 cm] |
| Rear tread | 26/28/30 inches [66/71/76 cm] |
aKubota B7100 Tractor Review Video
https://www.youtube.com/watch?v=-eLgYV4jP6s
Related Post
Conclusion
When it comes to a used tractor buying such as Kubota B7100 compact utility tractor, you have to consider about the dealer and the price. It is also necessary to determine in advance of its details by reading about technical data related to this particular model, as provided above.
