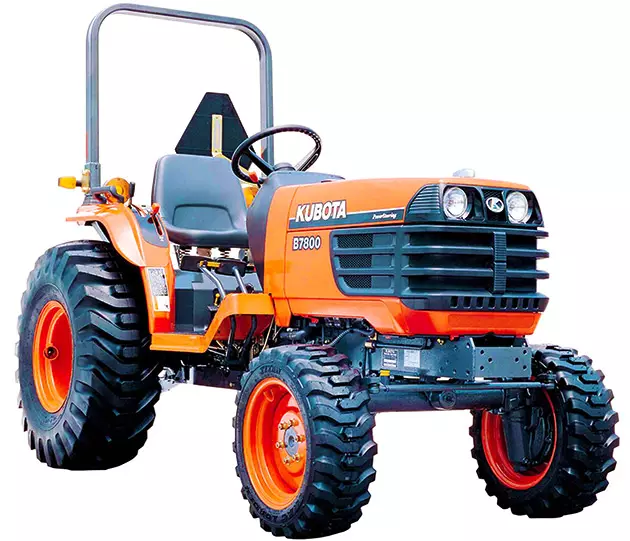

Kubota B7800 compact utility tractor is a four-wheel drive (4WD) machine made by Kubota under its B series. The production years for this model span for five years, from 2003 to 2008. The unit comes with 1.5 L 4-cylinder diesel engine, along with hydro transmission that has infinite 3 ranges F and R gears.
The dimension of this power equipment is measured at 98.8 inch (2,510 mm) x 53.5 inch (1,360 mm). The wheelbase spreads on 65.4 inch (1,660 mm). It weighs around 1,742 pounds (790 kg). It is equipped with various beneficial features such as 2-post ROPS (optional foldable ROPS), open operator station (OOS) platform, oil cooled brakes, and power steering. Its fuel tank capacity is 6.9 gallons (26 L or 5.7 imperial gallons).
The Kubota B7800 compact utility tractor, as mentioned previously, features 1.5 L (91.4 cubic inch or 498 cm2) 4-cylinder Kubota V1505-E-D16 engine. It has 3.07 inch (78 mm) of cylinder bore, which is also the exact size of its stroke. The engine is capable of yielding optimum output power of 30 horsepower (22.4 kW or 30.5 PS) @ 2,900 rpm.
Although Kubota B7800 compact utility tractor is suitable with a number of attachment types to support various activities with different intensity level, most of the units use loader and backhoe. There are several different types of loaders available. That being said, there are several crucial considerations that have to be taken into account when it comes to choosing the attachment, such as loader height, dumped bucket, dump angle, dump reach, bucket width, and rollback angle.
As the production of Kubota B7800 compact utility tractor had already ceased, it is essential to examine any structural problem if you are interested in purchasing it. You don’t want to encounter with unwanted problems that happen simply because the model is quite old and that you have bought a second-hand unit.
If you want to learn more about Kubota B7800 compact utility tractor, then continue to read the information below. It will tell you further about the features, specifications, attachments, and other related details about this particular tractor model.
Kubota B7800 Price
- Original Price: $16,500 USD
Related Post
- Kubota B7100
- Kubota L185
- Kubota L3010
- Kubota ZD21
- Kubota B2710
- Kubota B7500
- Kubota L4701
- Kubota B2400
- Kubota B2920
Kubota B7800 Specification
KUBOTA B7800 DIESEL ENGINE | |
Engine | Kubota V1505-E-D16 diesel 4-cylinder liquid-cooled |
Displacement | 91.5 ci 1.5 L |
Bore/Stroke | 3.07×3.09 inches 78 x 78 mm |
Power (gross) | 30 hp 22.4 kW |
Air cleaner | dry |
Rated RPM | 2600 |
Starter volts | 12 |
Oil capacity | 4.3 qts 4.1 L |
Coolant capacity | 4.7 qts 4.4 L |
KUBOTA B7800 TRANSMISSION | |
Type | hydrostatic |
Gears | infinite (3-range) forward and reverse |
Oil capacity | 3.8 qts 3.6 L |
KUBOTA B7800 HYDRAULICS | |
Type | open center |
Pump flow | 6.4 gpm 24.2 lpm |
Total flow | 9.5 gpm 36.0 lpm |
Steering flow | 3.1 gpm 11.7 lpm |
KUBOTA B7800 TRACTOR HITCH | |
Rear Type | I |
Control | quarter-inching valve |
Rear lift (at ends) | 1655 lbs 750 kg |
Rear lift (at 24″/610mm) | 1300 lbs 589 kg |
KUBOTA B7800 POWER | |
Engine (gross) | 30 hp 22.4 kW |
PTO (claimed) | 22 hp 16.4 kW |
KUBOTA B7800 TIRES | |
Ag front | 7-12 |
Ag rear | 12.4-16 |
Lawn/turf front | 24×8.50-14 |
Lawn/turf rear | 13.6-16 |
Industrial front | 23×8.50-14 |
Industrial rear | 12.4-16 |
KUBOTA B7800 PTO | |
Rear PTO | live |
Rear RPM | 540 (1.375) |
Engine RPM | 540@2600 |
Mid PTO | live* |
Mid RPM | 2500 (Kubota 10-spline) |
Engine RPM | 2500@2578 |
KUBOTA B7800 MECHANICAL | |
Chassis | 4×4 MFWD 4WD |
Final drives | spur gear |
Differential lock | mechanical rear |
Steering | power |
Brakes | wet disc |
Cab | Two-post fixed ROPS. Foldable ROPS optional. |
Transmission | hydrostatic |
KUBOTA B7800 DIMENSIONS | |
Wheelbase | 65.6 inches 166 cm |
Length | 99.2 inches 251 cm |
Width | 53.8 inches 136 cm |
Height (ROPS) | 78.5 inches 199 cm |
Weight | 1741 lbs 789 kg |
Ground clearance | 14.6 inches 37 cm |
KUBOTA B7800 ELECTRICAL | |
Ground | negative |
Battery CCA | 443 |
Battery volts | 12 |
Kubota B7800 Attachments
KUBOTA LA402 LOADER | |
Height (to pin) | 81.5 inches 207 cm |
Clearance, dumped bucket | 65.5 inches 166 cm |
Dump reach | 26 inches 66 cm |
Dump angle | 40° |
Reach at ground | 54.1 inches 137 cm |
Rollback angle | 26° |
Breakout force (lift) | 1684 lbs 763 kg |
Lift to full height (at pin) | 1060 lbs 480 kg |
Bucket width | 54 inches 137 cm |
Kubota B7800 Review Video
Related Post
Conclusion
Considering how easy you can find Kubota B7800 compact utility tractor in today’s second-hand market, it is indeed an undeniably long-lasting and popular model amongst many that were produced by Kubota. You may search for the local communities or online offerings if you are interested in buying this powerful and versatile unit.
