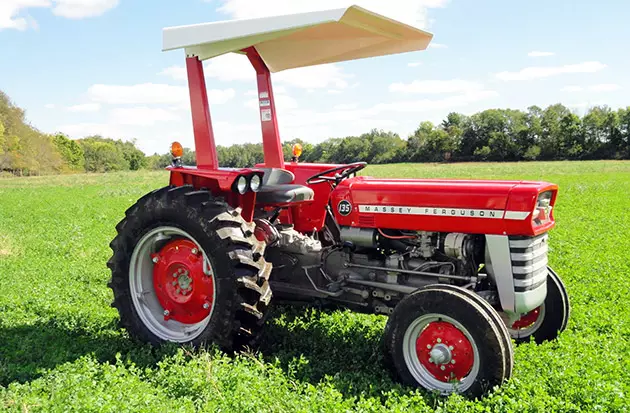

The Massey Ferguson 135 tractor, or also known as MF135, was a tractor model unit made by Massey Ferguson. It was the initial manufacturing model in the lineup of MF100, following the MF35. The production period took place in 1964 to 1975, until it was replaced by MF235. Arguably, this model is the most sought- after second-hand tractor unit nowadays, beside Massey Ferguson 165.
As mentioned before, the production years of Massey Ferguson 135 tractor spanned for 11 years. During the last production year, its price sat at around nearly $4,400. The manufacturer put out several hundred thousand units. Even until these days in the 21st century, it is still plausibly the most popular unit model in the market. It is not hard to wonder why – the MF135 are really affordable and amongst the most powerful ones in the range of 30 – 40 HP tractors. It also has simple mechanical construction and provides great reliability. Moreover, the familiarity factor makes it a favorite between the farmers.
There are a lot of claims stating that the Massey Ferguson 135 tractor is amongst the best tractor this manufacturer ever produced. However, a lot of people as well have emphasized the importance in choosing the right engine. MF 135 was provided with a Perkins engine (that used gas or diesel as the fuel) or Continental engine (that used gas as the fuel).
Most of the Massey Ferguson 135 tractor units you’d see probably use 2.5 L Perkins 3-cylinder diesel engines that can yield 45 Horsepower. It was a 2-wheel drive unit, with mechanical clutch and 6 forward plus 2 reserve gearboxes.
From 1970 and onwards, the later versions were equipped with 8-speed transmission. They also used 4 forward plus 1 reserve gearbox. They came with options of multi-power as well with hydraulic clutch, and 12 forward plus 4r reverse gearbox.
Either way, these units receive so much popularity across the world, mainly because of their simple design that’s easy to maintain and repair. These days, it is not so hard to find one in an affordable price range, even if they come in disassembled units and use worldwide shipping. You can easily find inexpensive replacement parts resources, with better manufacturing compared to the models prior to war.
Although it has been several decades since the Massey Ferguson 135 tractor is no longer being produced, it still seems to be a treasure and important equipment for farmers in various countries.
Familiarity factor, as stated before, is one of the main reasons why the model is still popular. Plenty of farmers remember how to operate them back then. There are also cases where it becomes a special unit that’s sought by obscure tractor collectors.
All in all, there is no doubt that the Massey Ferguson 135 tractor was well-designed and manufactured pieces. More than a standard tractor unit, they offered extreme reliability. If you are interested in knowing more about it, then continue to read the following information about its specs list and other related details.
Massey Ferguson 135 Tractor Overview
Type | Agricultural, industrial |
Manufacturer | Massey Ferguson |
Production | 1964–1975 |
Weight | 3,565–3,810 pounds (1,617–1,728 kg) |
Propulsion | Wheels |
Gross Power | 45.5 horsepower (33.9 kW) |
Preceded By | Massey Ferguson 35 |
Succeeded By | Massey Ferguson 235 |
Related Post
- Massey Ferguson 1010
- Massey Ferguson Tractors Price List In USA
- Massey Ferguson 241 DI Tonner
- Massey Ferguson 65
- Ferguson TO-30
- Massey Ferguson 165
- Massey Ferguson 240
- Massey Ferguson 255
- Massey Ferguson 1030

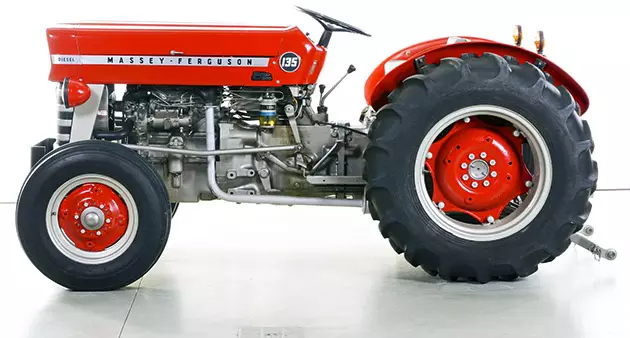

Massey Ferguson 135 Tractor Price
- Original Price: $4,385 (1975 )
Massey Ferguson 135 Serial Number
YEAR | SERIAL NUMBER |
1964 | 641000001 |
1965 | 641001909 |
1966 | 641014871 |
1967 | 9A10001 |
1968 | 9A39836 |
1969 | 9A63158 |
1970 | 9A87325 |
1971 | 9A107519 |
1972 | 9A128141 |
1973 | 9A152025 |
1974 | 9A182761 |
1975 | 9A207681 |

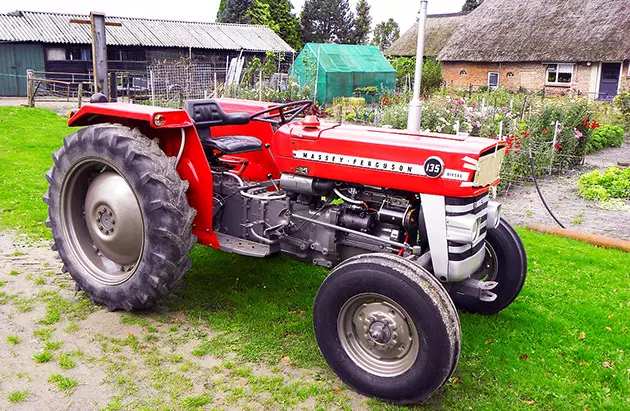

Massey Ferguson 135 Tractor Specifications
MASSEY FERGUSON 135 ENGINE
Gasoline | |
Model | Perkins – AG3. 152 |
No. Of Cylinders | 3 |
Bore | 3. 6 inches |
Piston Stroke | 5 inches |
Total Displacement | 152. 7 cu. ins. |
Compression Ratio | 7. 5 to 1 |
Firing Order | 1-2-3 |
Lubrication (at 2000 RPM) | Pressure fed at 40-55 psi |
Valve Clearance: Hot- | Intake 0. 012 inch – Exhaust 0. 015 inches |
Idle Speed | 750 ± 25 RPM |
Maximum Speed (no load) | 2225-2275 RPM |
Governor | Variable speed centrifugal, fly weight |
Diesel | |
Model | Perkins – AD3. 152 |
No. Of Cylinders | 3 |
Bore | 3.6 inches |
Piston Stroke | 5 inches |
Total Displacement | 152. 7 cu. ins. |
Compression Ratio | 18. 5 to 1 |
Firing Order | 1-2-3 |
Lubrication (at 2000 RPM) | Pressure fed at 40-55 psi |
Valve Clearance: | |
· Hot – Intake & Exhaust | 0. 010” |
· Cold – Intake & Exhaust | 0. 012” |
Idle Speed | 725-775 RPM |
Maximum Speed (no load) | 2135-2185 RPM |
Governor | Built-in injection pump |
MASSEY FERGUSON 135 COOLING SYSTEM
Type | Circulated by a centrifugal pump, with a bypass system. Flow thermostatically controlled through the radiator |
Pressure Cap | 7 psi |
POWER TRAIN |
MASSEY FERGUSON 135 CLUTCH
Tractors with ”Independent” PTO or Transmission PTO Type | Single dry-disc – 11″ DIA. |
Tractors with” Live” PTO Type | Dual dry-disc |
Primary Clutch | Coil spring-loaded, 11″ DIA. |
Secondary Clutch | Belleville spring-loaded, 9″ DIA. |
MASSEY FERGUSON 135 FUEL SYSTEM
Gasoline | |
Type | Gravity flow |
Carburetor | Up Draft dust proof type |
Diesel | |
Type | Pressure-fed |
Primary Fuel Pump | Diaphragm type |
Fuel Filter | One filter, full flow, w /replaceable element |
Injection Pump | CA V distributor type |
Fuel Injectors | CA V multi-hole type |
Injection Timing | 240 B. T. D. C. |
MASSEY FERGUSON 135 POWER TAKE-OFF
Shaft | Spline, 1-3/8” DIA. ASAE STD. |
Control: | |
· “Live” PTO | 3-position shift lever (Engine) (Neutral) (Ground) |
· ”Independent” PTO | 2-position shift lever (“On”) (“Off”) |
· Transmission, PTO | 2-position shift lever (Neutral) (Engine) |
Shaft Speed: | |
· “Live” PTO – Engine | 540 RPM at 1700 engine RPM |
· Ground | 1 revolution per approx. 20” of forward travel |
· “Independent” PTO – “On” | 540 RPM at 1700 engine RPM |
· Transmission, PTO – Engine | 540 RPM at 1500 engine RPM |
MASSEY FERGUSON 135 HYDRAULIC SYSTEM
Lift Pump | Constantly running, scotch yoke, piston-type |
Maximum Pressure | 2800 psi |
Delivery | 4. 8gpm at 2000 engine RPM and 1500 psi |
Control | Oscillating control valve on inlet side of pump |
MASSEY FERGUSON 135 BRAKES
Type | Mechanical, double expanding shoe, self-energizing |
Shoe Dimension | 14 inch diameter, 2 inches wide, 118 square inch area |
Pedal Free Travel | 3/4 inch |
MASSEY FERGUSON 135 ELECTRICAL SYSTEM
Gasoline | |
Battery: | |
· Make | Massey-Ferguson – negative ground |
· Volts | 12 |
· Amp/Hour Rate | 60 |
Alternator: | |
· Make | Delco-Remy |
· Voltage | 12 |
· Charging Rate | 25 amps. |
Regulator: | |
· Make | Delco-Remy |
Distributor: | |
· Make | Delco-Remy |
· Recommended Timing – Max Engine Speed – 2250 rpm | 270 B. T.D. C. |
· Contact Point Gap | Set at . 021 inches |
Starter Motor: | |
· Make | Delco-Remy |
Spark Plugs: | |
· Make(STD. Factory equip.) | Champion N12Y |
· Size | 14mm |
· Gap | 0. 025 inches |
Diesel | |
Battery: | |
· Make | Massey-Ferguson – negative ground |
· Volts | 12 |
· Amp/Hour Rate – “Independent” PT Models | 95 |
· ”Live” PTO Models | 60 |
Generator: | |
· Make | Delco-Remy |
· Voltage | 12 |
· Charging Rate | 25 amps. |
Regulator: | |
· Make | Delco-Remy |
Starter Motor: | |
· Make | Delco-Remy |
MASSEY FERGUSON 135 CAPACITIES
Fuel Tank | 10.2 U.S. – 8.3 Imp. Gals. |
Cooling System | 10. 5 U.S. – 8. 7 Imp qts. |
Crankcase – w /o Filter Change | 6 U.S. – 5 Imp qts. |
Crankcase – w/Filter Change | 6.5 U.S. – 5.4 Imp. qts. |
Transmission, Differential, and Hydraulic System | 8 U.S. – 6. 7 Imp. gals. |
Power Steering Reservoir | l U.S. – . 8 Imp. qts. |
MASSEY FERGUSON 135 TIRE SIZE
Rear | 12.4/11-28, 4-Ply Rating, Rl |
13. 6/12-28, 4-Ply Rating, Rl | |
14. 9/13-24, 4-Ply Rating, Rl | |
18.4/15-16A, 6–Ply Rating, Rl, R3 | |
Front | 5.50-16, 4-PlyRating, F2 |
6.00-16, 4-PlyRating, F2 | |
6.50-16, 4-Ply Rating, F2 | |
7. 50-10, 6-Ply Rating, F3 |
MASSEY FERGUSON 135 DIMENSIONS
Wheel Base | 72-3/8 inches |
Minimum Width: | |
· Deluxe, Special, Orchard Tractors | 68-7/16 inches |
· Vineyard Tractor | 51-7 /8 inches |
Ground Clearance – Minimum – 14. 9/13-24 Tires | 12-5/8 inches |
Ground Clearance – Front Axle | 20-1/2 inches |
Turning Radius – w /Brakes | 9 feet |
Massey Ferguson 135 Tractor Review Video
Related Post
Conclusion
There are still plentiful usages of Massey Ferguson 135 tractor available in the market, even some new parts. If you have experience or develop interest in owning one of the units, simply share your thoughts below.
