Massey Ferguson 255 row-crop tractor is surely a tractor that you need to buy because the product is complete, and it is available in several different versions. Well, row-crop is one of them, and the other two become the standard tractor and the low-profile tractor. Each and every single one of them is certainly easy and great to use.

For the Massey Ferguson 255 row-crop tractor alone, the specs and engine are pretty great. They are equipped with grand engine which can produce massive power. The engine is the one from Perkins, and the base of engine is diesel. It is the type of 4-cylinder engine, and it is already completed by large capacity, which is around 3.9 liter.

The chassis used in Massey Ferguson 255 row-crop tractor is 4×2 2WD. It has been completed with advanced power steering feature as well to help you operate the tractor easier. The gears are available in both forward and reverse gears with approximately 8 gears on the forward, and 2 gears reversed.

To help enhancing the safety feature, this Massey Ferguson 255 row-crop tractor has dry disc brake. Surely, it will help the operation of the tractor more easily. This tractor is compact, not too heavy, and its overall weight is no more than 6415 lbs of weight.

You will certainly get lots of attachments to bring home when buying this tractor. Those attachments include the 236 front-end loader from Massey Ferguson. With this attachment, loading the dirt, cultivating residue or anything else will be easier.

If you like to find out further about the specs, price, serial number, reviews and more about Massey Ferguson 255 row-crop tractor, do not forget to continue reading this post as everything you need to know will be shown below. It will help you figuring out the goodness about this tractor and what you should know more about it.

Contents hide
1 Massey Ferguson 255 Tractor Price
2 Massey Ferguson 255 Tractor Serial Numbers
3 Massey Ferguson 255 Specification
4 Massey Ferguson 255 Attachments
5 Massey Ferguson 255 Tractor Review Video
6 Conclusion

Massey Ferguson 255 Tractor Price

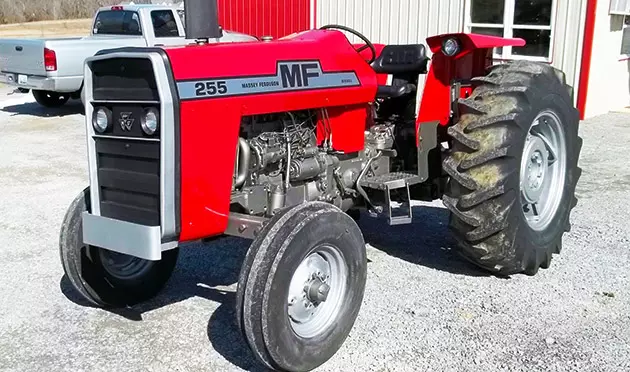

Massey Ferguson 255 row-crop tractor

  • Original Price: $8,100 (1981)

Related Post

Massey Ferguson 255 Tractor Serial Numbers

19749A202190
19759A207681
19769A232539
19779A254045
19789A276935
19799A296946
19809A326169
19819A339343
19829A350584
19839A354679

Massey Ferguson 255 Specification

MASSEY FERGUSON 255 DIESEL ENGINE
EnginePerkins diesel 4-cylinder liquid-cooled
Displacement236 ci
3.9 L
Bore/Stroke3.875×5.00 inches
98 x 127 mm
Air cleanerpaper and felt
Compression16:1
Rated RPM2000
Starter volts12
EnginePerkins AG4.212 gasoline 4-cylinder liquid-cooled
Displacement212 ci
3.5 L
Bore/Stroke3.875×4.50 inches
98 x 114 mm
Compression7:1
Rated RPM2000
Starter volts12
Oil capacity6 qts
5.7 L
Coolant capacity11 qts
10.4 L
MASSEY FERGUSON 255 DIESEL ENGINE
EnginePerkins AD4.203 diesel 4-cylinder liquid-cooled
Displacement203 ci
3.3 L
Bore/Stroke3.60×5.00 inches
91 x 127 mm
Compression18.51
Rated RPM2000
Starter volts12
Oil capacity8.5 qts
8.0 L
Coolant capacity11 qts
10.4 L
MASSEY FERGUSON 255 TRACTOR HITCH
Rear TypeI/II
Rear lift3800 lbs
1723 kg
MASSEY FERGUSON 255 TRANSMISSION
Transmission
Typegear
Gears8 forward and 2 reverse
Transmission
TransmissionMulti-Power
Typepartial power shift
Gears12 forward and 4 reverse
MASSEY FERGUSON 255 CAPACITY
Fuel18.5 gal
70.0 L
Hydraulic system8 gal
30.3 L
MASSEY FERGUSON 255 HYDRAULICS
Capacity8 gal
30.3 L
Pressure2300 psi
158.6 bar
Valves0 to 2
Pump flow10 gpm
37.9 lpm
4.5 gpm
17.0 lpm (3-point)
Total flow19.5 gpm
73.8 lpm
Steering flow5 gpm
18.9 lpm
MASSEY FERGUSON 255 PTO
Rear PTOlive (two-stage clutch)
Rear RPM540
MASSEY FERGUSON 255 POWER
Drawbar (claimed)42 hp
31.3 kW
PTO (claimed)50 hp
37.3 kW
Drawbar (tested)43.49 hp
32.4 kW
PTO (tested)52.68 hp
39.3 kW
MASSEY FERGUSON 255 MECHANICAL
Chassis4×2 2WD
Differential lockmechanical rear
Steeringpower
Brakesdifferential dry disc
CabTwo-post ROPS. Canopy optional.
Transmissions8-speed gear
12-speed partial power shift
MASSEY FERGUSON 255 DIMENSIONS
Wheelbase82 inches
208 cm
Height (hood)57.6 inches
146 cm (low-profile)
63.1 inches
160 cm (standard) 69.6 (row-crop)
Ground clearance10.4 inches
26 cm (low-profile)
16 inches
40 cm (standard)
19.6 inches
49 cm (row-crop)
Front tread48 to 72 inches
121 to 182 cm
Front tread52 to 76 inches
132 to 193 cm (row-crop)
Rear tread56 to 90 inches
142 to 228 cm
Rear tread55 to 87 inches
139 to 220 cm (low-profile)
MASSEY FERGUSON 255 WEIGHT
Gas Shipping5600 lbs
2540 kg
Diesel Shipping5850 lbs
2653 kg
Gas Operating6140 lbs
2785 kg
Diesel Operating6415 lbs
2909 kg
Ballasted7310 lbs
3315 kg
MASSEY FERGUSON 255 TYRES
Ag front6.00-16
6.50-16
7.5L-15
Ag rear16.9-24
16.9-26
16.9-28
16.9-30
18.4-26
Ag front5.50-16 (row-crop)
7.50-10 (low-profile)
9.5L-10 (low-profile)
Ag rear14.9-38 (row-crop)
15.5-38 (row-crop)
13.6-38 (row-crop)
14.9-24 (low-profile)
18.4-16.1 (low-profile)
21.5-16.1 (low-profile)
MASSEY FERGUSON 255 ELECTRICAL
Charging systemalternator
Charging amps37
Battery volts12
Battery AH95

Massey Ferguson 255 Attachments

MASSEY FERGUSON 236 LOADER
Height (to pin)144 inches
365 cm
Breakout force (lift)3250 lbs
1474 kg
Lift to full height (at pin)2500 lbs
1134 kg

Massey Ferguson 255 Tractor Review Video

https://www.youtube.com/watch?v=uFhpPO9PrDg

Related Post

Conclusion

Well, what do you think about this tractor after knowing the details about it? There are actually so many great things to find out about Massey Ferguson 255 row-crop tractor indeed. For now, that was it, and if you like to say something about the tractor or the post, simply hit the comment box and write something there. We will try to reply to your comment as soon as we can. Thank you for reading the post, and do not forget to come back for more.
