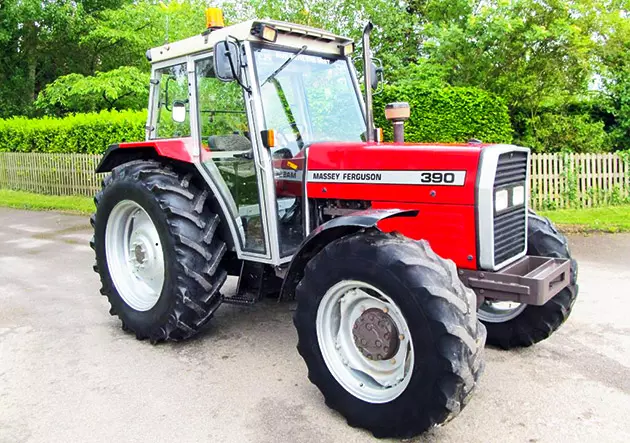

Massey Ferguson 390 Utility Tractor may not be as famous as Kubota or other brands of tractor. But when we talk about its specs, it has quite similar specs with other famous names as mentioned earlier. Despite being discontinued already (it was released in 1987 and discontinued after 10 years (1997)), what makes this tractor has quite many ‘fans’ admiring this unit?
First, let’s talk about the engine details. Massey Ferguson 390 Utility Tractor is using a Perkins engine which has 4 cylinders and 4.1 L of displacement (equals to 248 ci). The unit is working on diesel which can help you to produce a gigantic power at 81 HP (equal to 60.4 kW) at PTO HP of 70 HP (52.2 kW).
Massey Ferguson 390 Utility Tractor is equipped with a fuel tank with a capacity as huge as 28.5 gallon, which is equal to 107.9 L. Hence, this unit is great for heavy duty projects on your lawn since it can produce a huge power.
Talking about its mechanical aspects, Massey Ferguson 390 Utility Tractor is using either 4×2 2WD or 4×4 MFWD 4WD chassis. As for the steering type, the tractor is using a hydrostatic power steering. Differential wet disc is used as its braking system. As for its cab system, you can have this cab uses two-post ROPS. Its canopy is optional to use.
What about its transmissions? Turns out this unit is using two kinds of transmissions—which are the 12-speed synchromesh and 12-speed partial power shift. This said, you can get various options of speed.
If you are using synchromesh transmission type, you can rely on the unit to produce 12 forward range of speed and 4 for the reversed movement. The partial power shift transmission also produces the same speed ranges. Unfortunately, there is no data about how fast this unit could go for both types of movement.
Regarding the attachments, it’s unfortunate that Massey Ferguson 390 Utility Tractor isn’t equipped with any attachments. However, a source mentioned that this unit is only compatible with a 838-type loader which comes from the same manufacturer as well.
Massey Ferguson 390 Price
- Massey Ferguson 390 Original Price: $32,000 (1997)
Related Post
- Massey Ferguson 1010
- Massey Ferguson Tractors Price List In USA
- Massey Ferguson 241 DI Tonner
- Massey Ferguson 135
- Massey Ferguson 65
- Ferguson TO-30
- Massey Ferguson 165
- Massey Ferguson 240
- Massey Ferguson 255
- Massey Ferguson 1030
Massey Ferguson 390 Serial Number
| 1986 | U01001 |
| 1987 | V01001 |
| 1988 | N01001 |
| 1989 | P01001 |
| 1990 | R01001 |
| 1991 | S01001 |
| 1992 | A01001 |
| 1993 | B01001 |
| 1994 | C01001 |
| 1995 | D01001 |
| 1996 | E01001 |
| 1997 | F01001 |
Massey Ferguson 390 Specification
| MASSEY FERGUSON 390 ENGINE | |
| Engine | Perkins A4.248 diesel 4-cylinder liquid-cooled 248 ci [4.1 L] |
| Bore/Stroke | 3.975×5.00 inches [101 x 127 mm] |
| Power | 81 hp [60.4 kW] |
| Air cleaner | dual dry element |
| Compression | 15.5:1 |
| Rated RPM | 2200 |
| Torque | 210 lb-ft [284.8 Nm] |
| Torque RPM | 1400 |
| Firing order | 1-3-4-2 |
| Starter volts | 12 |
| Oil capacity | 8 qts [7.6 L] |
| Coolant capacity | 16 qts [15.1 L] |
| MASSEY FERGUSON 390 3 POINT HITCH | |
| Rear Type | II |
| Rear lift | 4,250 lbs [1927 kg] |
| MASSEY FERGUSON 390 POWER | |
| Engine | 81 hp [60.4 kW] |
| PTO (claimed) | 70 hp [52.2 kW] |
| MASSEY FERGUSON 390 MECHANICAL | |
| Chassis | 4×2 2WD |
| 4×4 MFWD 4WD | |
| Steering | hydrostatic power |
| Brakes | differential wet disc |
| Cab | Two-post ROPS. Canopy optional |
| MASSEY FERGUSON 390 TRANSMISSION | |
| Transmission | |
| Type | synchromesh |
| Gears | 12 forward and 4 reverse |
| Transmission | |
| Transmission | Multi-Power |
| Type | partial power shift |
| Gears | 12 forward and 4 reverse |
| MASSEY FERGUSON 390 HYDRAULICS | |
| Type | open center |
| Capacity | 12.5 gal [47.3 L] |
| Pressure | 3000 psi [206.8 bar] |
| Valves | 2 |
| Pump flow | 9.5 gpm [36.0 lpm] |
| 4.4 gpm [16.7 lpm] (3-point) | |
| Total flow | 13.9 gpm [52.6 lpm] |
| MASSEY FERGUSON 390 PTO | |
| Rear PTO | independent |
| live (optional) | |
| Rear RPM | 540 (1.375) |
| 540/1000 (1.375) | |
| MASSEY FERGUSON 390 DIMENSIONS | |
| Weight | 6,055 lbs [2746 kg] (2WD) |
| 7,266 lbs [3295 kg] (4WD) | |
| Wheelbase | 84.1 inches [213 cm] (2WD) |
| 92.5 inches [234 cm] (4WD) | |
| Length | 144.4 inches [366 cm] (2WD) |
| 152.8 inches [388 cm] (4WD) | |
| Width | 77.7 inches [197 cm] |
| Height | 101.2 inches [257 cm] |
| Ground clearance | 10 inches [25 cm] (2WD) |
| 13 inches [33 cm] (4WD) | |
| 2WD turn radius | 24.6 feet [7.5 m] |
| 4WD turn radius | 27.9 feet [8.5 m] |
| MASSEY FERGUSON 390 TIRES | |
| Ag front | 7.50-16 |
| Ag rear | 18.4-30 |
Massey Ferguson 390 Attachments
| LOADER | |
| Loader type | Massey Ferguson 236 |
| Height (to pin) | 125 inches [317 cm] |
| Clearance, dumped bucket | 102 inches [259 cm] |
| Dump reach | 33.5 inches [85 cm] |
| Dump angle | 36 |
| Reach at ground | 74 inches [187 cm] |
| Rollback at ground | 10 |
| Breakout force (at pin) | 3420 lbs [1551 kg] |
| Lift to full height (at pin) | 2500 lbs [1134 kg] |
| Bucket width | 72 inches [182 cm] |
| Raise time to height | 8.7 s |
| Bucket dump time | 5.6 s |
| Lowering time | 4.2 s |
| Rollback time | 3.2 s |
| LOADER | |
| Loader type | Massey Ferguson 838 |
| Height (to pin) | 129 inches [327 cm] |
| Clearance, dumped bucket | 102.5 inches [260 cm] |
| Dump reach | 31.5 inches [80 cm] |
| Dump angle | 36 |
| Reach at ground | 77 inches [195 cm] |
| Rollback at ground | 20 |
| Breakout force (at pin) | 4100 lbs [1859 kg] |
| Lift to full height (at pin) | 3000 lbs [1360 kg] |
| Bucket width | 72 inches [182 cm] |
| Raise time to height | 4 s |
| Bucket dump time | 3.25 s |
| Lowering time | 2.5 s |
| Rollback time | 2.25 s |
Massey Ferguson 390 Review Video
Related Post
Conclusion
After knowing the details, is Massey Ferguson 390 Utility Tractor a good piece to purchase? Well, if you think it fits well for your lawn needs, then it can be a great investment to have. This will be great for ones owning huge land that requires a quick tractor to work with.
