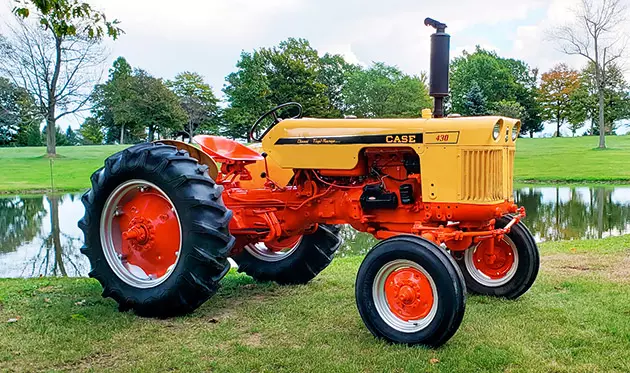

Case 430 Tractor – Case 430 Tractor is a utility tractor that is equipped with a diesel engine from J.I. Case. The engine itself has been designed using the 4-cylinder mechanism as well as an overhead valve. With a liquid-cooling mechanism to maintain a proper operating temperature, the engine also has a capacity of around 3.1 L. With a maximum speed rating of 1750 RPM, the engine is capable to produce up to 34 hp at tested PTO.
The fuel tank of the Case 430 Tractor is capable to hold up to 49.2 L of diesel fuel. Meanwhile, the chassis that is used on the vehicle is the 4×2 2WD design with a manual steering mechanism. Users can also get a power steering feature on a higher variant of this tractor. An open operator station is used for the driver cab while the mechanical discs are used for the braking system. The transmission system offers three different mechanical gear systems, including the four-speed, twelve-speed, and eight-speed mechanical shuttle.
There are 5 variants that are being offered from the lineup of the Case 430 Tractor. The first one is the standard-front diesel with the 430 variant. The 431 variant is a row-crop diesel while the 440 variant uses a gasoline engine for the vehicle. The 441 is similar to the 431 variant but uses gasoline as the source of power. The last variant is the industrial variant with the number 445.
So, now that you have found out about the basic mechanical specifications along with the available variants of the Case 430 Tractor, you can now understand more about the pricing and other points from this vehicle. Before buying the unit, it is important to understand each specification so that you can be sure that it can meet your expectations.
Case IH is a popular brand that was created in 1985 for various equipment marketed towards the agricultural industry. The brand was a result of a merger between a division of International Harvester and G.I. Case Company. Aside from producing agricultural equipment, the company also has businesses in financial services and customer support. They also produce other products related to farming, including harvesters, combines, hay equipment, planting systems, sprayers, and other more specific farming tools.
Case 430 Tractor Price
- Original Price: $4,400 (1969)
Related Post
Case 430 Tractor Serial Numbers
| 1960 | 6144001 |
| 1961 | 6162601 |
| 1962 | 8190001 |
| 1963 | 8208001 |
| 1964 | 8229001 |
| 1965 | 8253501 |
| 1966 | 8279001 |
| 1967 | 8306501 |
| 1968 | 8332101 |
| 1969 | 8356251 |
Case 430 Specification
| CASE 430 HISTORY | |
| Manufacturer | J.I. Case |
| Factory | Rock Island, Illinois, USA |
| Racine, Wisconsin, USA | |
| Original price (USD) | $4,400 (1969 ) |
| CASE 430 DIESEL ENGINE | |
| Engine | J.I. Case diesel 4-cylinder liquid-cooled overhead valve 188.4 ci [3.1 L] |
| Bore/Stroke | 3.8125×4.125 inches [97 x 105 mm] |
| Air cleaner | oil bath |
| Compression | 17.5:1 |
| Rated RPM | 1750 |
| Starter volts | 12 |
| Oil capacity | 5 qts [4.7 L] |
| Coolant capacity | 13.5 qts [12.8 L] |
| CASE 430 TRANSMISSION | |
| Type | unsynchronized gear |
| Gears | 4 forward and 1 reverse |
| Clutch | 254mm dry disc |
| CASE 430 BELT PULLEY | |
| Diameter | 10.25 inches [26 cm] |
| Width | 6 inches [15 cm] |
| RPM | 1190 |
| CASE 430 3 POINT HITCH | |
| Rear Type | I |
| Control | Draft-o-Matic draft control |
| CASE 430 PTO | |
| Rear PTO | live |
| independent* | |
| Rear RPM | 540 |
| 540/1000 | |
| CASE 430 POWER | |
| PTO (claimed) | 34 hp [25.4 kW] |
| Plows | 3 |
| CASE 430 HYDRAULICS | |
| Type | Dual-Control |
| Valves | 1 |
| Pump flow | 8.5 gpm [32.2 lpm] |
| CASE 430 CAPACITY | |
| Fuel | 13 gal [49.2 L] |
| CASE 430 MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | manual |
| power* | |
| Brakes | mechanical band/disc |
| Cab | Open operator station |
| CASE 430 DIMENSIONS | |
| Weight (shipping) | 3125 lbs [1417 kg] |
| Wheelbase | 75.25 inches [191 cm] |
| Length | 130.2 inches [330 cm] |
| Width | 61.375 inches [155 cm] |
| Height (hood) | 50.5 inches [128 cm] |
| Front tread | 47.5 inches [120 cm] |
| Rear tread | 48 to 76 inches [121 to 193 cm] 58/66 inches [147/167 cm] |
| CASE 430 TIRES | |
| Ag front | 6.00×16 |
| 7.50×16 | |
| Ag rear | 11×24 |
| 13×24 | |
| CASE 430 ELECTRICAL | |
| Number | 2 |
| Volts | 6 |
Case 430 Tractor Review Video
Conclusion
We hope that this article about the Case 430 Tractor meets your expectations and can help you decide if you need the unit. Always make sure to compare the features offered from this unit to other products so that you can get the best one for your money.
