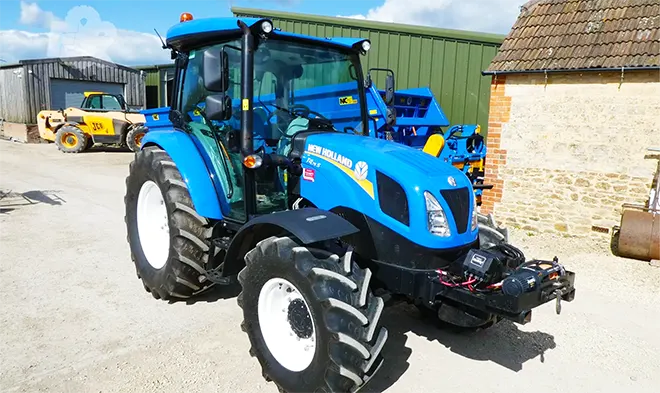

T4.75 Utility Tractor is powered by an FPT F5C turbocharged diesel 4-cylinder 8-valve cooled 195ci [3.2 L] FPT F5C turbocharged diesel 4-cylinder 8-valve liquid-cooled engine, which generates 55.2kW [74hp].
There are 12 forward and reverse gears, 4960 to 6172 pounds weight capacity, and an electronic starter on the New Holland T4.75 Utility Tractor. It has an FPT 3.2L 4-cyl diesel engine, 4×2 2WD and 4×4 MFWD 4WD.
Front-end loader attachments for the New Holland T4.75 Utility Tractor include the New Holland 655TL.
The next step is to learn more about the New Holland T4.75 Utility Tractor, so keep reading for details on its cost, specs, reviews, and serial numbers.
New Holland T4.75 Price
New Holland T4.75 Original Price: $57,900 USD
New Holland T4.75 Serial Number
New Holland T4.75 Specifications
New Holland T4.75 Engine
| Engine | FPT F5C turbocharged diesel 4-cylinder 8-valve liquid-cooled 195 ci [3.2 L] |
| Bore/Stroke: | 3.898×4.094 inches [99 x 104 mm] |
| Emissions: | Tier 3 |
| Rated Power (ECE R120): | 74 hp [55.2 kW] |
| Rated RPM: | 2300 |
| Torque: | 228.6 lb-ft [310.0 Nm] |
| Torque RPM: | 1200 |
| Starter: | electric |
| Starter volts: | 12 |
| Oil change: | 500 h |
New Holland T4.75 Capacity
New Holland T4.75 3 Point Hitch
| Rear Type: | 2/1 |
| Control: | mechanical draft control |
| Rear lift (at ends): | 4,883 lbs [2214 kg] |
| Rear lift (at 24″/610mm): | 3,664 lbs [1661 kg] |
New Holland T4.75 Power
| Engine (gross): | 74 hp [55.2 kW] |
New Holland T4.75 Mechanical
| Chassis: | 4×2 2WD |
| 4×4 MFWD 4WD |
| Differential lock: | limited slip 4WD front axle |
| Steering: | hydrostatic power |
| Trailer brakes: | hydraulic optional |
| Cab: | Two-post foldable ROPS. Optional PowerStar cab with optional air-conditioning. EZ-Guide 250 and 500 capable. |
New Holland T4.75 Transmission
| Transmission: | Synchro Shuttle |
| Gears: | 12 forward and reverse |
| Transmission: | Power Shuttle |
| Gears: | 12 forward and reverse |
| Transmission: | Synchro Shuttle creeper |
| Gears: | 20 forward and reverse |
| Transmission: | Power Shuttle creeper |
| Gears: | 20 forward and reverse |
New Holland T4.75 Hydraulics
| Type: | fixed displacement |
| Rear valves: | 3 |
| Mid valves: | 2 |
| Pump flow: | 12.55 gpm [47.5 lpm] |
| Steering flow: | 7.3 gpm [27.6 lpm] |
| 9.5 gpm [36.0 lpm] (power shuttle) |
New Holland T4.75 PTO
| Rear PTO: | independent |
| Rear RPM: | 540 |
| 540E |
| ground |
| Engine RPM: | 540@1958
540E@1592 |
New Holland T4.75 Dimensions
| 2WD ROPS Weight (shipping): | 4,960 lbs [2249 kg] |
| 4WD ROPS Weight (shipping): | 5,886 lbs [2669 kg] |
| 2WD cab Weight (shipping): | 5,556 lbs [2520 kg] |
| 4WD cab Weight (shipping): | 6,173 lbs [2800 kg] |
| 2WD Weight (max capacity): | 9,921 lbs [4500 kg] |
| 4WD Weight (max capacity): | 10,580 lbs [4799 kg] |
| 2WD Wheelbase: | 84.7 inches [215 cm] |
| 4WD Wheelbase: | 82.8 inches [210 cm] |
| Length: | 149.3 inches [379 cm] |
| Width: | 79.1 inches [200 cm] |
| Height (cab): | 97.6 inches [247 cm] |
| Ground clearance: | 16.7 inches [42 cm] |
| Rear tread: | 60.2 to 75.9 inches
[152 to 192 cm] |
| 2WD turn radius: | 12 feet [3.7 m] |
| 4WD turn radius: | 12.5 feet [3.8 m] |
New Holland T4.75 Tires
New Holland T4.75 Electrical
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 120 |
| Charging volts: | 12 |
New Holland T4.75 Battery
New Holland T4.75 Attachments
Loader
| Loader type: | New Holland 655TL |
| Height (to pin): | 126.3 inches [320 cm] |
| MSL Height (to pin): | 125.9 inches [319 cm] |
| Clearance, dumped bucket: | 90.24 inches [229 cm] |
| MSL Clearance, dumped bucket: | 89.96 inches [228 cm] |
| Dump reach: | 33.5 inches [85 cm] |
| MSL Dump reach: | 32.5 inches [82 cm] |
| Dump angle: | 60 |
| Reach at ground: | 90.7 inches [230 cm] |
| MSL Reach at ground: | 90.6 inches [230 cm] |
| Rollback angle: | 45 |
| Breakout force (at 800mm): | 3,730 lbs [1691 kg] |
| MSL Breakout force (at 800mm): | 4,652 lbs [2110 kg] |
| Lift to full height (at 800mm): | 2,478 lbs [1124 kg] |
| MSL Lift to full height (at 800mm): | 3,179 lbs [1441 kg] |
