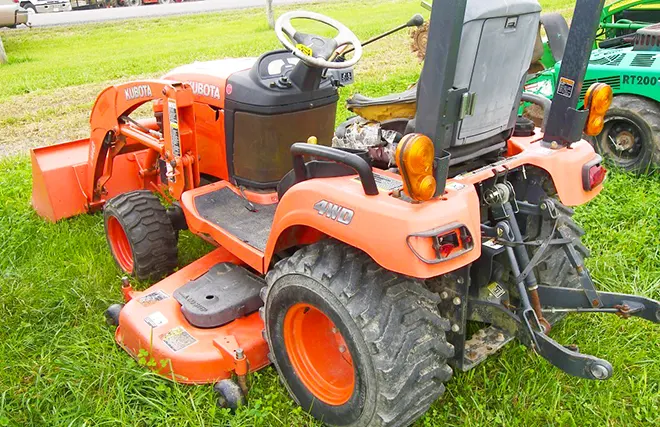

At rated revs of 3200, the diesel 3-cylinder liquid-cooled 61.1 ci [1.0 L] engine of the Kubota BX2660 Compact Utility Tractor produces 25.5 horsepower (19.0 kW).
This compact Kubota utility tractor has a Kubota 3-cylinder diesel engine, 44 MFWD 4WD and hydraulic power steering. Its rear lift capacity is 1,210 pounds (548 kilograms), and its oil capacity is 12.4 quarts (11.7 liters), and its weight is 1,389 pounds (630 kilograms).
To go along with the Kubota BX2660 Compact Utility Tractor, Kubota also makes the Kubota LA243 loader and two mower decks, each measuring 54 inches.
So let’s see how much it costs to run the Kubota BX2660 Compact Utility Tractor and what it can do.
Kubota BX2660 Price
Kubota BX2660 Original Price: $12,484 (2013)
Kubota BX2660 Serial Number
Kubota BX2660 Specifications
Kubota BX2660 Engine
| Engine | Kubota D1005 diesel 3-cylinder liquid-cooled 61.1 ci [1.0 L] |
| Bore/Stroke: | 3.00×2.90 inches [76 x 74 mm] |
| Power (gross): | 25.5 hp [19.0 kW] |
| Rated RPM: | 3200 |
| Starter volts: | 12 |
| Oil capacity: | 3.3 qts [3.1 L] |
| Coolant capacity: | 2.8 qts [2.6 L] |
Kubota BX2660 Capacity
| Fuel: | 6.6 gal [25.0 L] |
| Hydraulic system: | 3.1 gal [11.7 L] |
Kubota BX2660 3 Point Hitch
| Rear Type: | 1 |
| Rear lift (at ends): | 1,210 lbs [548 kg] |
| Rear lift (at 24″/610mm): | 670 lbs [303 kg] |
Kubota BX2660 Power
| Engine (gross): | 25.5 hp [19.0 kW] |
| PTO (claimed): | 19.5 hp [14.5 kW] |
Kubota BX2660 Mechanical
| Chassis: | 4×4 MFWD 4WD |
| Differential lock: | rear standard |
| Steering: | hydrostatic power |
| Brakes: | wet disc |
| Cab: | Two-post fixed ROPS. Canopy optional. |
Kubota BX2660 Transmission
| Type: | hydrostatic |
| Gears: | infinite (2-range) forward and reverse |
| Oil capacity: | 12.4 qts [11.7 L] |
Kubota BX2660 Hydraulics
| Type: | open center |
| Capacity: | 3.1 gal [11.7 L] |
| Total flow: | 6.3 gpm [23.8 lpm] |
Kubota BX2660 PTO
| Rear PTO: | independent |
| Rear RPM: | 540 |
| Engine RPM: | 540@3120 |
| Mid PTO: | independent |
| Mid RPM: | 2500 |
| Engine RPM: | 2500@3043 |
Kubota BX2660 Dimensions
| Weight: | 1,389 lbs [630 kg] |
| Wheelbase: | 55.1 inches [139 cm] |
| Length: | 95.5 inches [242 cm] |
| Width: | 44.5 inches [113 cm] |
| Height (ROPS): | 70.4 inches [178 cm] |
| Clearance (front axle): | 8.7 inches [22 cm] |
| Front tread: | 36.6 inches [92 cm] |
| Rear tread: | 32.2 inches [81 cm] |
| 4WD turn radius: | 7.2 feet [2.2 m] |
Kubota BX2660 Tires
| Ag front: | 18×8.5-10 |
| Ag rear: | 26×12-12 |
| Lawn/turf front: | 18×8.5-10 |
| Lawn/turf rear: | 26×12-12 |
| Industrial front: | 18×8.5-10 |
| Industrial rear: | 26×12-12 |
Kubota BX2660 Electrical
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 40 |
Kubota BX2660 Battery
| Number: | 1 |
| Cold-cranking amps: | 535 |
| Volts: | 12 |
Kubota BX2660 Attachments
54″ Mower Deck
| Type: | 209-mount Kubota RCK54 |
| 3-blade |
| Cutting width: | 54 inches [137 cm] |
| Weight: | mid lbs [0 kg] |
| Cut height: | 1 to 4 inch [2 to 10 cm] |
60″ Mower Deck
| Type: | mid-mount Kubota RCK60B23BX |
| 3-blade |
| Cutting width: | 60 inches [152 cm] |
| Weight: | 250 lbs [113 kg] |
| Cut height: | 1 to 4 inch [2 to 10 cm] |
Loader
| Loader type: | Kubota LA243 |
| Height (to pin): | 71.3 inches [181 cm] |
| Clearance, dumped bucket: | 52.4 inches [133 cm] |
| Dump reach: | 28.9 inches [73 cm] |
| Dump angle: | 45 |
| Rollback angle: | 29 |
| Breakout force (lift): | 992 lbs [449 kg] |
| Lift to full height (at pin): | 745 lbs [337 kg] |
| Lift to full height (at 500mm): | 518 lbs [234 kg] |
| Bucket capacity: | 0.18 cu yd [0.1 cu m] |
| Bucket width: | 48 inches [121 cm] |
