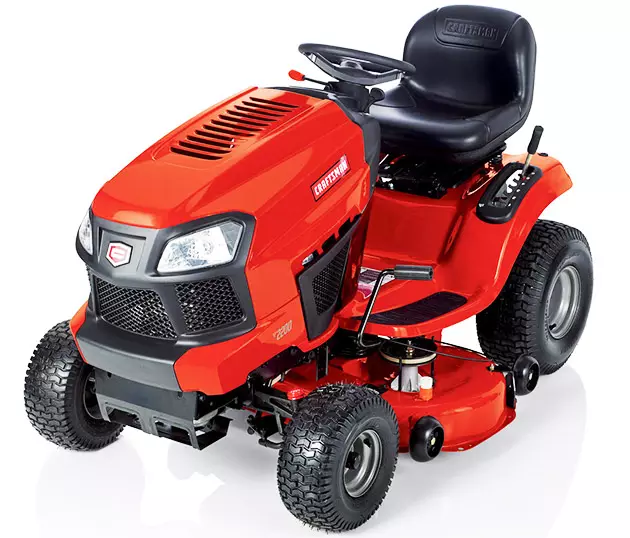

Craftsman T2200 Lawn Tractor – The Craftsman T2200 Lawn Tractor is an outdoor equipment that features the Intek Platinum engine produced by Briggs & Stratton. The amazing engine uses the 1-cylinder design as well as an air-cooling mechanism for the 2 valves and vertical shaft mechanism. The displacement capacity is measured at around 540cc. The maximum power output from the engine is around 19 hp or 14.2 kW.
The transmission system of Craftsman T2200 Lawn Tractor uses the conventional hydrostatic transmission that makes it possible for operators to move the vehicle with infinite gears for forward and reverse maneuvers. The ignition system uses a 12 V battery for the electric starter. The chassis for the 19HP Briggs & Stratton 1-cylinder engine is the 4×2 2WD chassis. This type of engine also burns gasoline as the main type of fuel.
Aftermarket attachments for Craftsman T2200 Lawn Tractor are also available alongside the OEM attachment that includes a mid-mount mower deck with a 42-inches blade. Users can also opt to hitch a snowblower to clean up falling snow from lawns and gardens. There are also various sizes for the blades that can be used along with the default mower deck.
So, now that you have understood the basic specifications of the Craftsman T2200 Lawn Tractor, you will be able to find more information below about the price, user reviews, serial numbers, spare parts, and tractor images. We do hope that you can use the information to decide whether this tractor is useful for your needs.
Craftsman is a line of products of outdoor equipment, work clothing, and hand tools as well as various power tools that were originally started by Sears. In 2017, the company was acquired by Stanley Black & Decker but the brand is still being used to produce various tools and equipment. Since the introduction of the brand on May 20, 1927, every product of Craftsman has always been under an unlimited warranty. This means that customers can get Craftsman equipment and tools to get repaired without any additional cost.
Craftsman T2200 Price
- Craftsman T2200 Original Price: $1750 (2014)
- Craftsman T2200 Serial Number: Not Available
Related Post
- Craftsman DLT 3000
- Craftsman DYT 4000
- Craftsman GT6000
- Craftsman YS4500
- Craftsman T1000
- Craftsman T2400
- Craftsman T310
- Craftsman T110
Craftsman T2200 Specification
| CRAFTSMAN T2200 ENGINE | |
| Engine | Briggs & Stratton Intek Platinum gasoline 1-cylinder 2-valve air-cooled vertical-shaft |
| Displacement | 540 cc 33.0 ci |
| Bore/Stroke | 3.7×3.06 inches 94 x 78 mm |
| Power (gross) | 19 hp 14.2 kW |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug | Champion RC12YC |
| Sparkplug gap | 0.030 inches 0.762 mm |
| CRAFTSMAN T2200 CAPACITY | |
| Fuel | 2.5 gal 9.5 L |
| CRAFTSMAN T2200 MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | manual |
| Cab | Open operator station. |
| Transmission | hydrostatic |
| CRAFTSMAN T2200 TRANSMISSION | |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil change | sealed unit, service not recommended |
| CRAFTSMAN T2200 PTO | |
| Front PTO | independent |
| Clutch | manual |
| CRAFTSMAN T2200 DIMENSIONS | |
| Wheelbase | 48 inches 121 cm |
| Length | 72.75 inches 184 cm |
| Width | 45 inches 114 cm |
| Height | 46 inches 116 cm |
| Front axle | Cast-iron |
| CRAFTSMAN T2200 TIRES | |
| Lawn/turf front | 15X6-6 |
| Lawn/turf rear | 20X8-8 |
| CRAFTSMAN T2200 ELECTRICAL | |
| Ground | negative |
| Charging amps | 3 (battery) |
| 5 (headlights) | |
| CRAFTSMAN T2200 BATTERY | |
| Number | 1 |
| Cold-cranking amps | 230 |
| Volts | 12 |
| Amp-hours | 28 |
| Group | U1R |
Craftsman T2200 Attachments
| 42″ MOWER DECK | |
| Type | mid-mount Craftsman |
| 2-blade with Manual lift | |
| Cutting width | 42 inches 106 cm |
| Cut height | 1 to 4 inch 2 to 10 cm |
| Cut positions | 6 |
| BLADE | |
| Type | front-mount Craftsman |
| Width | 42 inches 106 cm |
| 42″ SNOW BLOWER | |
| Type | front-mount Craftsman |
| Clearing width | 42 inches 106 cm |
Craftsman T2200 Review Video
Conclusion
The specifications and features of the Craftsman T2200 Lawn Tractor are important to be understood especially if you want to get this vehicle either for your personal or business use. Make sure that you pay attention to each aspect of the tractor and decide whether the power and the features of the vehicle can support your personal and business needs. You should also compare the features of this tractor with other products in the lineup to get the best one.
