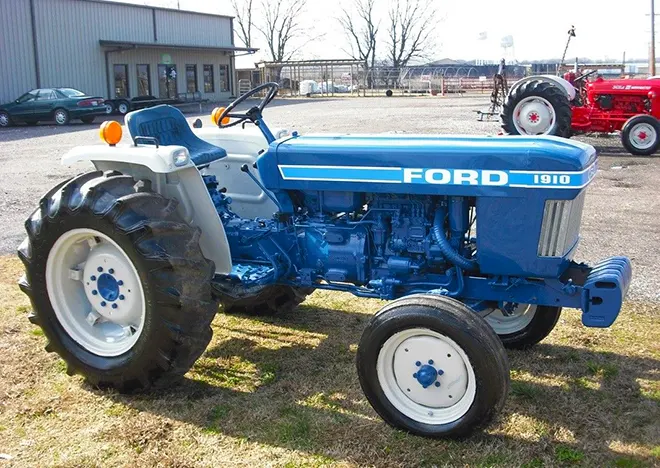

When it comes to horsepower, the Ford 1910 Tractor is powered by the Shibaura diesel 3-cylinder liquid-cooled 103.8 ci [1.7 L].
There are 12 forward gears and 4 backward gears on this Ford 1910 tractor, which has a Shibaura 1.7L 3-cyl diesel engine and a lift capability of 3813 pounds (1729 kilograms). It is available in 2WD or 4WD MFWD 4WD configurations.
There are mowing deck, snowblower, front-end loader and backhoe attachments for the 1910 tractor.
Check out the Ford 1910 Tractor specs, features, and pricing right now. I really hope you find it beneficial.
Ford 1910 Tractor Price
Original Price: $10,000 (1986)
Ford 1910 Tractor Serial Numbers
| 1983 | UP0001 |
| 1984 | UP01089 |
| 1985 | UP04638 |
| 1986 | UP08193 |
Ford 1910 Specifications
Ford 1910 History
| Distributor: | Ford |
| Manufacturer: | Shibaura |
| Factory: | Japan |
| Original price (USD) |
| $10,000 (1986 ) |
Ford 1910 Diesel Engine
| Engine | Shibaura diesel 3-cylinder liquid-cooled 103.8 ci [1.7 L] |
| Bore/Stroke: | 3.346×3.947 inches [85 x 100 mm] |
| Power: | 32 hp [23.9 kW] |
| Fuel use: | 2.236 gal/hour [8.5 l/hour] |
| Air cleaner: | dry |
| Pre-heating: | glow plugs |
| Compression: | 21:1 |
| Rated RPM: | 2500 |
| Torque: | 70.9 lb-ft [96.1 Nm] |
| Torque RPM: | 2000 |
| Starter volts: | 12 |
| Oil capacity: | 6.9 qts [6.5 L] |
| Coolant capacity: | 7.4 qts [7.0 L] |
Ford 1910 3 Point Hitch
| Rear Type: | I |
| Control: | position control |
| draft control* |
| Rear lift (at ends): | 3813 lbs [1729 kg] |
| Rear lift (at 24″/610mm): | 1584 lbs [718 kg] |
Ford 1910 Transmission
| Type: | unsynchronized gear |
| Gears: | 12 forward and 4 reverse |
| Clutch: | 239mm dry disc |
| Oil capacity: | 29.6 qts [28.0 L] |
| Three gears, plus reverse, in four ranges. |
Ford 1910 Capacity
| Fuel: | 9.2 gal [34.8 L] |
| Hydraulic system: | 7.4 gal [28.0 L] |
Ford 1910 Hydraulics
| Type: | open center |
| Capacity: | 7.4 gal [28.0 L] |
| Pressure: | 2133 psi [147.1 bar] |
| Total flow: | 8.6 gpm [32.6 lpm] |
Ford 1910 PTO
| Rear PTO: | live |
| Rear RPM: | 540 |
Ford 1910 Power
| Engine: | 32 hp [23.9 kW] |
| PTO (claimed): | 28.5 hp [21.3 kW] |
| Drawbar (tested): | 24.76 hp [18.5 kW] |
| PTO (tested): | 28.60 hp [21.3 kW] |
Ford 1910 Mechanical
| Chassis: | 4×2 2WD |
| 4×4 MFWD 4WD |
| Final drives: | spur gear |
| Differential lock: | mechanical rear |
| Steering: | manual |
| power (4WD) |
| Brakes: | differential mechanical drum |
| Cab: | Two-post fixed ROPS. |
Ford 1910 Dimensions
| 2WD Weight: | 2980 lbs [1351 kg] |
| 4WD Weight: | 3246 lbs [1472 kg] |
| Weight (ballasted): | 4250 lbs [1927 kg] * |
| 2WD Wheelbase: | 66.3 inches [168 cm] |
| 4WD Wheelbase: | 66.9 inches [169 cm] |
| 2WD Length: | 122.6 inches [311 cm] |
| 4WD Length: | 123.2 inches [312 cm] |
| Width: | 57.8 inches [146 cm] |
| 2WD Height (steering wheel): | 61.6 inches [156 cm] |
| 4WD Height (steering wheel): | 60.5 inches [153 cm] |
| Height (ROPS): | 87 inches [220 cm] |
| 2WD Height (exhaust): | 77.4 inches [196 cm] |
| 4WD Height (exhaust): | 76.7 inches [194 cm] |
| 2WD Ground clearance: | 13.7 inches [34 cm] |
| 4WD Ground clearance: | 13.1 inches [33 cm] |
| Front tread: | 44.9 to 59.5 inches
[114 to 151 cm] |
| Rear tread: | 45.7 to 61 inches
[116 to 154 cm] |
Ford 1910 Electrical
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 35 |
| Charging volts: | 12 |
Ford 1910 Battery
| Number: | 1 |
| Volts: | 12 |
| Amp-hours: | 100 |
Ford 1910 Tyres
| 2WD Standard tires (ag): | Front: 5.50-16. Rear: 13.6-24 |
| 4WD Standard tires (ag): | Front: 6.00-16. Rear: 13.6-24 |
| Lawn/turf front: | 25×8.50-14 (2WD) |
| 27×8.50-15 (4WD) |
| Lawn/turf rear: | 18.4×16.1 |
Ford 1910 Attachments
60″ Mower Deck
| Type: | mid-mount Ford 915 |
| 3-blade |
| Cutting width: | 60 inches [152 cm] |
60″ Snow Blower
| Type: | rear-mount Ford 715 |
| two-stage with hydraulic lift |
| Clearing width: | 60 inches [152 cm] |
Loader
| Loader type: | Ford 770A/B |
| Weight: | 800 lbs [362 kg] |
| Height (to pin): | 94 inches [238 cm] |
| Clearance, dumped bucket: | 75 inches [190 cm] |
| Dump reach: | 22 inches [55 cm] |
| Dump angle: | 40 |
| Reach at ground: | 54 inches [137 cm] |
| Rollback angle: | 10 |
| Breakout force (lift): | 1,860 lbs [843 kg] |
| Lift to full height (at pin): | 1,130 lbs [512 kg] |
| Bucket capacity: | 0.26 cu yd [0.2 cu m] |
| 0.30 cu yd [0.2 cu m] |
| Bucket width: | 48 inches [121 cm] |
| 60 inches [152 cm] |
| Raise time to height: | 4.4 s |
| Bucket dump time: | 2.6 s |
| Lowering time: | 2.0 s |
Backhoe
| Backhoe type: | Ford 757A |
| Bucket width: | 8 inches [20 cm] |
| 13 inches [33 cm] |
| 16 inches [40 cm] |
| Digging depth: | 76.5 inches [194 cm] |
| 2-Foot flat digging depth: | 74.5 inches [189 cm] |
| 8-Foot flat digging depth: | 40.3 inches [102 cm] |
| Reach from pivot: | 107 inches [271 cm] |
| Loading height: | 70 inches [177 cm] |
| Dipperstick force: | 719 lbs [326 kg] |
Conclusion
That’s all there is to know about the Ford 1910 Tractor Cost, Features, and Specifications. However, if you have any issues with this content, please let us know in the comment section below. I’ll do all I can to get to the bottom of this as quickly as possible. Thanks.
