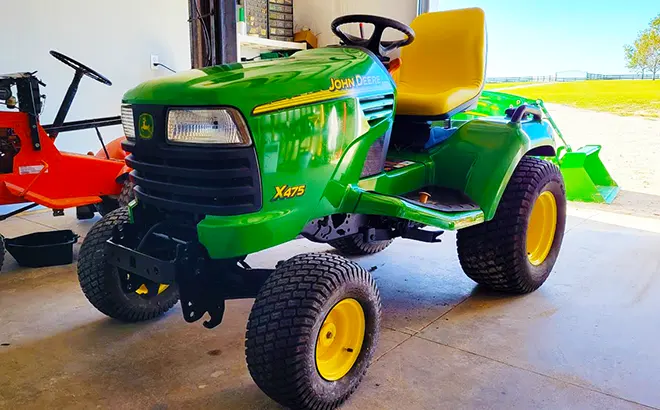

For the John Deere X475 Garden Tractor, Kawasaki has supplied it with a 745cc gasoline 2-cylinder liquidcooled horizontal-shaft V-Twin, 23 horsepower, 17.2 kW of power at rated rpm of 3550.
It has a 23HP Kawasaki 745cc 2-cylinder gasoline engine, 4WD, hydrostatic power steering, 450 lbs rear lift, limitless forward and backward gears, 840 to 900 lbs weight, and 2.0 L of oil capacity.
Snowblower blades, front-end loaders, and 48′′ mid-mount mower decks are all available as John Deere X475 Garden tractor attachments.
John Deere X475 Garden Tractor Price, Parts Specifications, Reviews, Serial numbers & Images are now available for your review.
John Deere X475 Price
John Deere X475 Original Price: $9,199 USD
John Deere X475 Serial Number
| 2002 | 010001 |
| 2003 | 020001 |
| 2004 | 030001 |
John Deere X475 Specifications
John Deere X475 Engine
| Engine | Kawasaki FD671D gasoline 2-cylinder liquid-cooled horizontal-shaft V-Twin |
| Displacement | 745 cc 45.5 ci |
| Bore/Stroke | 3.07×3.07 inches 78 x 78 mm |
| Power | 23 hp 17.2 kW |
| Fuel system | carburetor |
| Air cleaner | dual paper element |
| Compression | 8.0:1 |
| Rated RPM | 3550 |
| Starter volts | 12 |
| Starter power | 1.07 hp 0.8 kW |
| Oil capacity | 2.1 qts 2.0 L |
| Oil change | 50 h |
| Coolant capacity | 4.2 qts 4.0 L |
John Deere X475 Tractor Hitch
| Rear Type | 0 Opt |
| 1-limited Opt | |
| Rear lift | 450 lbs 204 kg |
John Deere X475 Mechanical
| Chassis | 4×2 2WD |
| Differential lock | mechanical rear |
| Steering | hydrostatic power |
| four-wheel steering on AWS | |
| Brakes | integral wet disc |
| Cab | Open operator station. Optional hard and soft-sided cabs. Optional vinyl weather enclosure. |
John Deere X475 Transmission
| Transmission | Tuff Torq K92 |
| Type | shaft-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 7 qts 6.6 L |
| 6 qts (X465 AWS) 5.7 L | |
| Oil type | Low-viscosity HY-GARD |
John Deere X475 PTO
| Rear PTO | independent Opt |
| Rear RPM | 540 |
| Mid PTO | independent |
| Clutch | electric |
John Deere X475 Dimensions
| Wheelbase | 54.5 inches 138 cm |
| Length | 78.8 inches 200 cm |
| Width | 46.8 inches 118 cm |
| Height | 47 inches 119 cm |
| 2WD Weight | 840 lbs 381 kg |
| AWS Weight | 900 lbs 408 kg |
John Deere X475 Tires
| Lawn/turf front | 18×8.5-8 |
| Lawn/turf rear | 26×12-12 |
John Deere X475 Electrical
| Ground | negative |
| Charging system | alternator |
| Charging amps | 20 |
| Battery CCA | 340 |
| Battery volts | 12 |
John Deere X475 Attachments
Attachment Overview
| 48″ mid-mount mower deck |
| 54″ mid-mount mower deck |
| 62″ mid-mount mower deck |
| Snowblower |
| Blade |
| Front-end loader |
John Deere 45 Loader
| Loader weight | 515 lbs 233 kg |
| Height (to pin) | 73 inches 185 cm |
| Clearance, dumped bucket | 57 inches 144 cm |
| Dump reach | 23 inches 58 cm |
| Dump angle | 45° |
| Reach at ground | 43.3 inches 109 cm |
| Rollback at ground | 25° |
| Breakout force (at pin) | 1,105 lbs 501 kg |
| Breakout force (at 500mm) | 770 lbs 349 kg |
| Breakout force (bucket) | 740 lbs 335 kg |
| Lift to full height (at pin) | 365 lbs 165 kg |
| Bucket capacity | 0.19 cu yd 0.1 cu m |
| Bucket width | 48 inches 121 cm |
