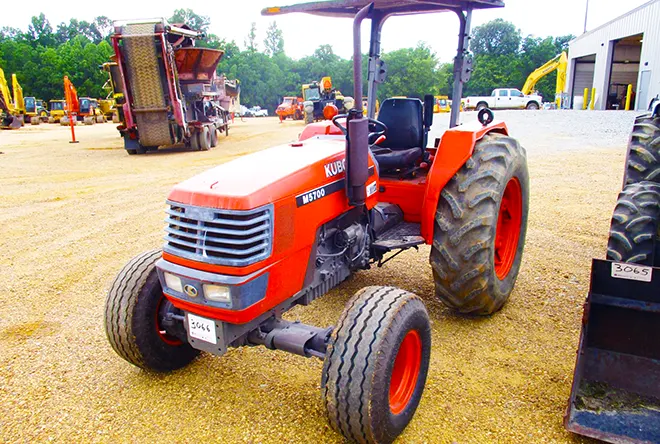

The Kubota F2803 diesel 5-cylinder liquid-cooled engine of the Kubota M5700 utility tractor produces 61.6 horsepower (45.9 kW) at a rated rpm of 2800.
This utility tractor has a Kubota 2.7L 5-cyl diesel engine, 4×2 2WD/4×4 MFWD 4×4 with Power steering, wet disc brakes, 2840 lbs Rear lift (at 24′′/610mm), 3858 to 4608 pounds weight, 8.5 qts 8.0 L engine oil capacity, 8 forward and backward gears. It weighs 3858 to 4608.
A front-end loader is one of the Kubota M5700 Utility tractor attachments.
In the meanwhile, let’s find out how much the Kubota M5700 Utility Tractor costs.
Kubota M5700 Price
Kubota M5700 Original Price: –
Kubota M5700 Serial Number
- Not Available
Kubota M5700 Specifications
Kubota M5700 Engine
Engine | Kubota F2803 diesel 5-cylinder liquid-cooled |
Displacement: | 167.5 ci 2.7 L |
Bore/Stroke: | 3.43×3.64 inches 87 x 92 mm |
Power: | 61.6 hp 45.9 kW |
Fuel system: | indirect injection |
Air cleaner: | two paper elements |
Compression: | 23:1 |
Rated RPM: | 2800 |
Starter volts: | 12 |
Oil capacity: | 8.5 qts 8.0 L |
Coolant capacity: | 8.5 qts 8.0 L |
Kubota M5700 Capacity
ROPS Fuel: | 17.2 gal 65.1 L |
Cab Fuel: | 25.1 gal 95.0 L |
Hydraulic system: | 13.7 gal 51.9 L |
Kubota M5700 Tractor Hitch
Rear Type: | II/I |
Control: | position control and top-link draft sensing |
Rear lift (at 24″/610mm): | 2840 lbs 1288 kg * |
Kubota M5700 Power
Engine: | 61.6 hp 45.9 kW |
PTO (claimed): | 52 hp 38.8 kW |
Drawbar (tested): | 48.1 hp 35.9 kW |
PTO (tested): | 52.6 hp 39.2 kW |
Kubota M5700 Mechanical
Chassis: | 4×2 2WD |
4×4 MFWD 4WD | |
Steering: | power |
Brakes: | wet disc |
Cab: | Two-post folding ROPS. Cab optional with air-conditioning. |
Transmission: | 8-speed synchronized shuttle |
Kubota M5700 Transmission
Type: | synchronized shuttle |
Gears: | 8 forward and reverse |
Kubota M5700 Hydraulics
Type: | open center |
Capacity: | 13.7 gal 51.9 L |
Valves: | 1 to 3 |
Pump flow: | 11 gpm 41.6 lpm |
Kubota M5700 PTO
Rear PTO: | independent |
Rear RPM: | 540 |
Kubota M5700 Dimensions
ROPS Wheelbase: | 78.7 inches 199 cm |
Cab Wheelbase: | 81.7 inches 207 cm |
2WD ROPS Length: | 137.6 inches 349 cm |
4WD ROPS Length: | 134.1 inches 340 cm |
2WD Cab Length: | 140.6 inches 357 cm |
4WD Cab Length: | 137 inches 347 cm |
Width: | 72.8 inches 184 cm * |
Height (ROPS): | 93.5 inches 237 cm |
Height (cab): | 99.0 inches 251 cm |
2WD Front tread: | 55.9 to 71.7 inches 141 to 182 cm |
4WD Front tread: | 52.3 to 56.3 inches 132 to 143 cm |
Rear tread: | 55.9 to 67.7 inches 141 to 171 cm |
Kubota M5700 Tires
Standard tires (ag): | Front: 7.50-16. Rear: 16.9-28 |
Front: 9.5-22. Rear: 16.9-28 (4WD) |
Kubota M5700 Electrical
Ground: | negative |
Charging system: | alternator |
ROPS Charging amps: | 45 |
Cab Charging amps: | 60 |
Battery volts: | 12 |
Kubota M5700 Weight
2WD ROPS Shipping: | 3858 lbs 1749 kg |
4WD ROPS Shipping: | 4078 lbs 1849 kg |
2WD Cab Shipping: | 4453 lbs 2019 kg |
4WD Cab Shipping: | 4608 lbs 2090 kg |
Ballasted: | 7070 lbs 3206 kg |
Kubota M5700 Attachments
Kubota LA1002 Loader
Height (to pin): | 115.6 inches 293 cm |
Clearance, dumped bucket: | 89.2 inches 226 cm |
Dump reach: | 34.6 inches 87 cm |
Dump angle: | 39° |
Rollback angle: | 25° |
Breakout force (lift): | 3330 lbs 1510 kg |
Lift to full height (at pin): | 2579 lbs 1169 kg |
Bucket width: | 72 inches 182 cm |
Conclusion
