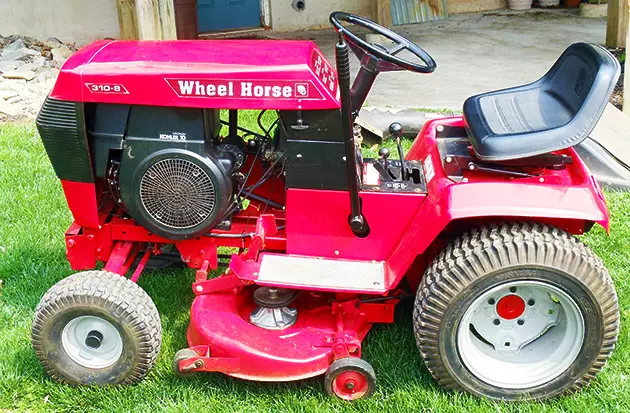

With its red color, Wheel Horse 310-8 Garden Tractor is ready to surprise you with lots of nice features. It is not big, but it is strong enough to deal with various jobs in your lawn. Not to mention, it has various attachments ready to use. Ready to learn about its specifications? You can see that on this description below.
Wheel Horse 310-8 Garden Tractor is a tractor that owns 1-cylinder engine only. However, that doesn’t make this piece bad whatsoever. The engine featured in this tractor is Kohler machine with 390 cc displacement. When it works on its maximum 3,600 rpm, it produces 10 HP or is equal to 7.5 kW. Not that much, but it is pretty strong for a small- to medium-sized lawn.
Wheel Horse 310-8 Garden Tractor is using gasoline as its main fuel type (and the only one). The engine is equipped with 2.25 gallon (equal to 8.5 L) of fuel tank capacity. Such a huge tank for the machine, isn’t it?
This tractor is using 4×2 2WD as its chassis type and is using manual steering. As for the cab, it has an open operator station—meaning that the tractor doesn’t have a cab to roof the operator.
Wheel Horse 310-8 Garden Tractor works with 6-speed gears with Wheel Horse belt-driven gear as its transmission system. Not only it has 6 forward gears, but it is also equipped with 2 reverse gears as well. That makes this tractor has a wide range of speed, which is from 0.5 miles per hour to 5.5 miles per hour (equal to 0.8-8.8 km per hour) for forward movement.
As for the reversed movement, you can move your tractor backward with the maximum power of 0.7 miles per hour – 2.6 miles per hour (1.1 km per hour – 4.2 km per hour).
Just like other tractors, it is a general trait to have several types of attachments as part of the purchase. For Wheel Horse 310-8 Garden Tractor, you will get a 36”, 37”, and a 42” mower deck (mid mounted), a snowblower, and a blade. You will be able to use this tractor with plows and tillers.
Wheel Horse 310-8 Price
- Wheel Horse 310-8 Original Price: NA
Related Post
Wheel Horse 310-8 Serial Number
| 1985 | 21-10K801 |
| 1986 | 21-10K802 |
| 1986 | 21-10K803 |
| 1987 | 21-10K804 |
| 1988 | 21-10K805 |
| 1989 | 21-10K806 |
| 1990 | 31-10K801 |
| 1991 | 31-10K802 |
| 1992 | 31-10K803 |
| 1993 | 73320 |
Wheel Horse 310-8 Specification
| WHEEL HORSE 310-8 GASOLINE ENGINE | |
| Engine | Kohler K241S gasoline 1-cylinder air-cooled |
| Displacement | 390 cc 23.85 ci |
| Bore/Stroke | 3.25×2.875 inches 83 x 73 mm |
| Power | 10 hp 7.5 kW |
| Rated RPM | 3600 |
| Starter volts | 12 |
| WHEEL HORSE 310-8 GASOLINE ENGINE | |
| Displacement | 390 cc 23.85 ci |
| Bore/Stroke | 3.25×2.875 inches 83 x 73 mm |
| Power | 10 hp 7.5 kW |
| Compression | 6.2:1 |
| Rated RPM | 3600 |
| Starter volts | 12 |
| Sparkplug | Champion RH10 |
| Sparkplug gap | 0.025 inches 0.635 mm |
| WHEEL HORSE 310-8 MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | manual |
| Cab | Open operator station. |
| Transmission | 6-speed gear |
| WHEEL HORSE 310-8 TRANSMISSION | |
| Manufacturer | Wheel Horse |
| Type | belt-driven gear |
| Gears | 6 forward and 2 reverse |
| Oil capacity | 2 qts 1.9 L |
| Oil type | SAE 90 GL5 |
| WHEEL HORSE 310-8 PTO | |
| Front PTO | independent |
| Clutch | mechanical |
| WHEEL HORSE 310-8 DIMENSIONS | |
| Wheelbase | 45.5 inches 115 cm |
| Length | 65 inches 165 cm |
| Width | 36.5 inches 92 cm |
| Height | 40.5 inches 102 cm |
| Weight | 529 lbs 239 kg |
| Shiping weight | 634 lbs 287 kg * |
| WHEEL HORSE 310-8 TIRES | |
| Lawn/turf front | 15×6.00-6 |
| Lawn/turf rear | 23×8.50-12 |
| WHEEL HORSE 310-8 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 15 |
Wheel Horse 310-8 Attachments
| 36″ MOWER DECK | |
| Type | mid-mount Wheel Horse |
| manual lift | |
| Cutting width | 36 inches 91 cm |
| Weight | 102 lbs 46 kg |
| 37″ MOWER DECK | |
| Type | mid-mount Wheel Horse |
| manual lift | |
| Cutting width | 37 inches 93 cm |
| Weight | 91 lbs 41 kg |
| 42″ MOWER DECK | |
| Type | mid-mount Wheel Horse |
| 3-blade with manual lift | |
| Cutting width | 42 inches 106 cm |
| Weight | 135 lbs 61 kg |
| BLADE | |
| Type | front-mount Wheel Horse |
| Width | 48 inches 121 cm |
| 42″ SNOW BLOWER | |
| Type | Wheel Horse |
| Clearing width | 42 inches 106 cm |
| Weight | front lbs 0 kg |
| 44″ SNOW BLOWER | |
| Type | front-mount Wheel Horse |
| two-stage | |
| Clearing width | 44 inches 111 cm |
Wheel Horse 310-8 Review Video
Conclusion
Well, that’s the specification of Wheel Horse 310-8 Garden Tractor. Although this machine had been discontinued for a long time, knowing its specification before purchasing is important. So, if you think there is something you need to ask, don’t hesitate to write it down on the comment box below. Thank you for visiting and stay tuned for more contents alike.
