Wheel Horse 312-8 Garden Tractor – Wheel Horse 312-8 Garden Tractor is a tractor to manage gardens that feature a Kohler K301S engine. This is a gasoline engine that has a 1-cylindr design along with an air-cooling mechanism to keep the temperature low. The engine capacity is 476cc, which is capable to push the vehicle to produce up to 12 hp, which can be translated to about 8.9 kW of power. The total weight of the vehicle is around 656lbs.

The Wheel Horse 312-8 Garden Tractor uses the 4×2 2WD chassis to transfer all those power from the engine to the wheel. Meanwhile, the transmission system has 6 gears for forward and reverse movements. The transmission type uses a belt-driven mechanism for the gear shifting method, with the engine’s oil capacity of around 1.9 L. The steering uses manual steering method and the driver seat is equipped with an open operator station design. The fuel tank can store up to 8.5 L of gasoline.

On the aspects of available attachments for the Wheel Horse 312-8 Garden Tractor, you will be able to get mower decks with various blade sizes, ranging from 36-inches blades to 48-inches blade. The choice can be based on the garden size or the terrain type. Aside from those, you can also get a snow blower. With the various attachment, the tractor is also capable to be turned into a plower, a tiller, or to achieve any type of farming works that you want to do with the vehicle.

So, now that we have informed you about the basics of Wheel Horse 312-8 Garden Tractor, it is also wise to know more about the price, user reviews, key features, and other specifications of this tractor before buying it. You should also consult the specifications to find out if the tractor can handle to manage your garden.

Wheel Horse was a producer of various power equipment for garden and other outdoor machineries from South Bend, Indiana, USA. The company was acquired by The Toro Company. The manufactured various types of tractors that offer the latest technology in the industry. Aside from gardening tractors, they also made snowmobiles and other power equipment.

Wheel Horse 312-8 Price

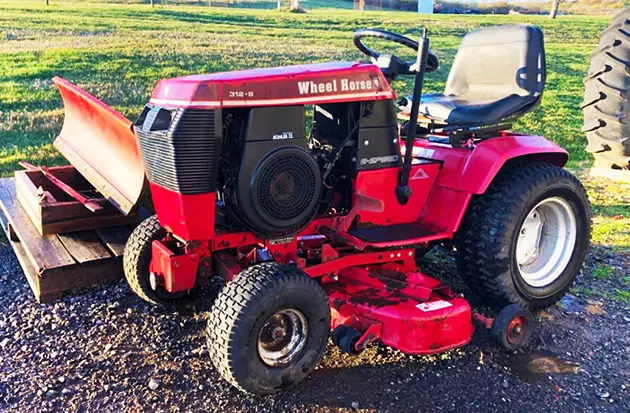

Wheel Horse 312-8 Garden Tractor

  • Wheel Horse 312-8 Original Price: $18,000 (1998)

Related Post

Wheel Horse 312-8 Serial Number

LocationModel codes shown.
198521-12K801
198621-12K802
198621-12K803
198721-12K804
198821-12K805
198921-12K806
199031-12K801
199131-12K802
199231-12K804
19933900001 (73380)
19944900001 (73362/73380)
19955900001 (73362)
19966900001 (73362/73363)
19977900001 (73363)

Wheel Horse 312-8 Specification

WHEEL HORSE 312-8 GASOLINE ENGINE
EngineKohler K301S gasoline 1-cylinder air-cooled
Displacement476 cc
29.07 ci
Bore/Stroke3.375×3.25 inches
86 x 83 mm
Power (gross)12 hp
8.9 kW
Starter volts12
WHEEL HORSE 312-8 GASOLINE ENGINE
EngineKohler M12 gasoline 1-cylinder air-cooled
Displacement476 cc
29.1 ci
Bore/Stroke3.38×3.25 inches
86 x 83 mm
Power (gross)12 hp
8.9 kW
Compression6.6:1
Rated RPM3600
Starter volts12
SparkplugChampion RH10
Sparkplug gap0.025 inches
0.635 mm
WHEEL HORSE 312-8 MECHANICAL
Chassis4×2 2WD
Steeringmanual
CabOpen operator station.
WHEEL HORSE 312-8 TRANSMISSION
ManufacturerWheel Horse
Typebelt-driven gear
Gears6 forward and 2 reverse
Oil capacity2 qts
1.9 L
Oil typeSAE 90 GL5
WHEEL HORSE 312-8 PTO
Front PTOindependent
Clutchmechanical
WHEEL HORSE 312-8 DIMENSIONS
Wheelbase45.5 inches
115 cm
Length65 inches
165 cm
Width36.5 inches
92 cm
Height42.5 inches
107 cm
Weight547 lbs
248 kg
Shiping weight656 lbs*
297 kg
WHEEL HORSE 312-8 TIRES
Lawn/turf front15×6.00-6
Lawn/turf rear22×9.00-12
WHEEL HORSE 312-8 ELECTRICAL
Groundnegative
Charging systemalternator
Charging amps15
Battery CCA160
Battery volts12
Battery AH24

Wheel Horse 312-8 Attachments

ATTACHMENT OVERVIEW
36″ mid-mount mower deck
37″ mid-mount mower deck
42″ mid-mount mower deck
48″ mid-mount mower deck
Snowblower
Blade

Wheel Horse 312-8 Review Video

Conclusion

The Wheel Horse 312-8 Garden Tractor is a compact gardening tool that offers complete features along with a durable engine. Make sure that you read and understand every aspect of the vehicle so you can decide if the vehicle can make your gardening work much easier.
