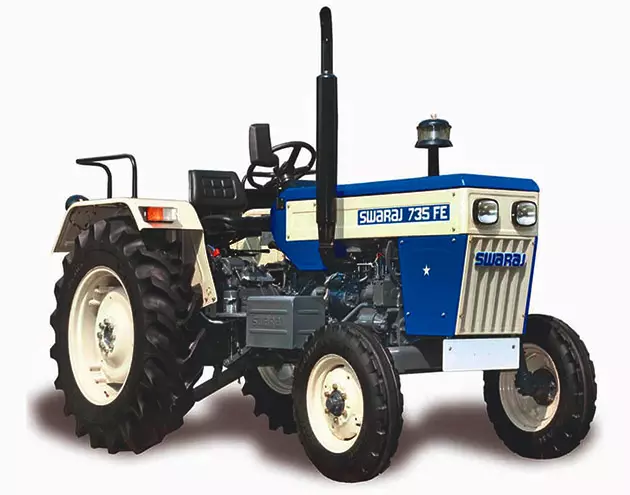

Swaraj 735 FE Tractor – Swaraj 735 FE Tractor is one of the best choices if you want to get an outdoor equipment that can handle any type of fieldwork you throw at it. With an engine that can produce up to 35 hp, the tractor is amazing to manage large lawns that require heavy-duty works, such as leveling, tilling, sowing, harvesting, hauling, and more. This is also the reason why a lot of farmers love to get this tractor model to manage their fields.

The engine for the Swaraj 735 FE Tractor uses a 3-cylinder engine with a capacity of 2734cc that can produce up to 35 hp. With a maximum rating speed of 1800 RPM, the engine is rated to be one of the most durable in the industry. Meanwhile, the transmission system will have a 10-speed gearbox using a center shift mechanism. It also uses a single dry disc system for the clutch type.

The Swaraj 735 FE Tractor can move forward and backward thanks to the gear system that has 8 forward gears and 2 reverse gears. The maximum forward speed is 27.8 km/h while the maximum speed when going back is 2.73 km/h. There are two different wheel-drive options for this tractor that customers can get and both of them have been equipped with the power steering feature. If no attachment is being used with the tractor, the vehicle weighs around 1895 kg.

So, after knowing the basic aspects of the Swaraj 735 FE Tractor, you should be wiser to understand more about other aspects of this vehicle, including the price and user reviews. Reading the reviews should make you understand more about the engine performance of this tractor. It will also tell you how comfortable this tractor will be when you use it on your field.

Swaraj Tractor is a brand name of outdoor equipment produced by an Indian company, Punjab Tractors. Established in 1972, the company manufactures various tractors for farmers as well as forklift trucks and combine harvesters. The company is now managing more than 2100 employees. In 2007, Mahindra & Mahindra Ltd, which is one of the biggest tractor manufacturers in India, took over the company.

Contents hide

1 Swaraj 735 FE Price

2 Swaraj 735 FE Features

3 Swaraj 735 FE Specification

4 Conclusion

Swaraj 735 FE Price

Price: ₹ 5,58,000 – ₹ 5,85,000

Related Post

Swaraj 735 FE Features

Engine	Power Steering
Bigger 13.6*28 Rear Tyre	Diaphragm Type Single Clutch (Dia-280mm)
Stabilizers Bar	OIB

Swaraj 735 FE Specification

ENGINE
Model	RV-3 XM+ 3A
HP	35 -40 HP
Type	4 Stroke, Direct injection, Diesel engine.
No. of Cylinders	3
Bore and Stroke	100 X 116 mm
Displacement	2734 cc
Rated Engine Speed	1800 Rev/min.
Air Cleaner	3- Stage Oil Bath Type
Cooling System	Water Cooled with No loss tank.
TRANSMISSION
Clutch Standard	Single dry disc friction plate – 280mm dia. (11”)
Clutch Optional	NA
GEAR SPEEDS
No. of Gears	8 Forward, 2 Reverse speeds
Forward	2.30 to 27.80
Reverse	2.73 & 10.74
PTO
PTO Speed: Standard	1000 rpm
PTO Speed: Optional	540 rpm
BRAKES
Brake type: Stanrad	Dry Disc type Brakes
Brake type: Optional	Oil Immersed Brakes
STEERING
Standard	Mechanical Steering
Optional	Power steering
HYDRAULICS
Live Hydraulics	Position control
Lifting Capacity	1000 Kgf at lower link ends.
Linkage	3 point linkage suitable for Category-I&II type implement pins.
TYRE TYPE
Front Tyre Standard	6.00 x 16
Rear Tyre Standard	12.4 x28
Front Tyre / Rear Tyre (Optional)	6.00 x 16 / 13.6 X 28
ELECTRICALS & ELECTRONICS
Electricals	12 Volt, 88 Ah
Instruments	Engine rpm cum
WEIGHTS & DIMENSIONS
O.A. Length	3470 mm
O.A. Width	1695 mm
O.A. Height	2255 mm
Wheel Base	1950 mm
Min. Ground Clearance	395 mm
Weight of Tractor	1895 kg
Wheel Track	Front 1300 mm
Wheel Track	Rear 1350 mm (with 12.4*28 Tyre type)

Conclusion

Understanding the aspects of the Swaraj 735 FE Tractor is important especially if you need to get the unit to manage your field. But, it is also wiser to compare the unit with products from other manufacturers to decide which model fits best for your farming works.
