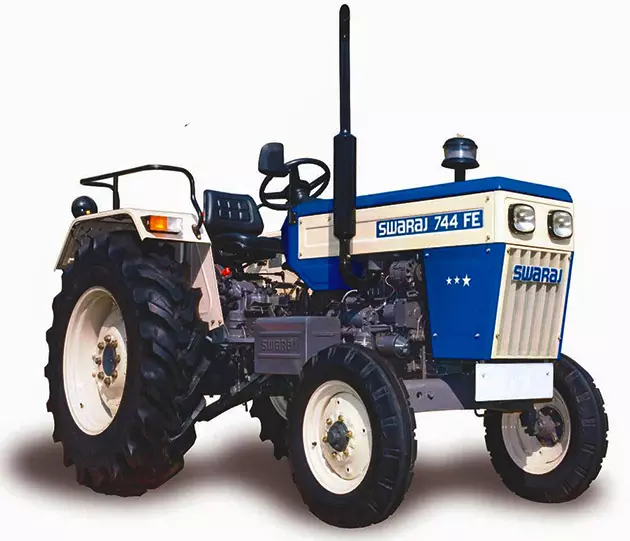

Having a tractor to deal with your lawn work would be a great investment. That said, you should go with a great unit like Swaraj 744 FE tractor. This product is perfect if you want to get a product with a powerful performance and other great features. Interested in knowing the specification of this product? Make sure to stay tune on this page!
First, you should know that Swaraj 744 FE tractor is a tractor that is categorized as into 45-50 HP producing tractor. With such power to produce, it surely will give you a value for money than other tractors. The engine is equipped with 3-cylinder, which required liquid coolant to cool it down. Not only liquid coolant, it also allows you to use oil cooler especially for engine oil.
The engine is working with 3,136 cc of displacement on rated RPM of 2,000. To accommodate the user to do heavy-duty lawn projects, a big fuel tank capacity is prepared, which is 48 liters.
As for its mechanical aspects, Swaraj 744 FE tractor is equipped with 2WD and 4WD drive type. Power steering type is used to accommodate the users in mobilizing the tractor easily. Not to forget, dry/oil immersed braking system. As for the roofing system, it doesn’t have any cab.
What about the dimension of this Swaraj 744FE tractor? The weight of this tractor is 1,990 kg—definitely a huge tractor to begin with. The length x width x height is 3,440 mm x 1,830 mm x 1,950 mm.
What about the transmission system? Swaraj 744 FE tractor is using the combination of sliding and constant mesh. The gear is placed on the center shift. The total gears you can use for forward and reverse movements are 8 and 2 gears, respectively.
Talking about a powerful unit of Swaraj 744 FE tractor won’t be enough without talking about its maximum speed. So, what is the unit’s maximum speed? Turn out the maximum speed of this Swaraj unit is 3.1 – 29.2 km per hour (for forward movement, depending on which gears you are using), and 4.3 – 14.3 km per hour (for reverse movement, depending on which gears you are using).
Swaraj 744 FE Tractor Price in India
- Price: ₹ 6,24,000 – ₹ 6,62,000
Related Post
Swaraj 744 FE Tractor Features
| Multi Speeds Forward & Reverse P.T.O | Power Steering |
| Powerful 3 Cylinders Water Cooled Engine | Dual Clutch |
| Direction Control Valve (DCV) | Adjustable Front Axle |
Swaraj 744 FE Tractor Specification
| ENGINE | |
| Model | RB-30 TR |
| HP | 45-50 hp |
| Type | 4 Stroke, Direct injection, Diesel engine. |
| No. of Cylinders | 3 |
| Bore and Stroke | 110 X 110 mm |
| Displacement | 3136 cc |
| Rated Engine Speed | 2000 rev/min |
| Air Cleaner | 3- Stage Oil Bath Type |
| Cooling System | Water Cooled with No loss tank. |
| TRANSMISSION | |
| Clutch Standard | Single dry disc friction plate – 280mm dia. (11”) |
| Clutch Optional | Dual Clutch |
| GEAR SPEEDS | |
| No. of Gears | 8 Forward, 2 Reverse speeds |
| Forward | 3.1 to 29.2 |
| Reverse | 4.3 & 14.3 |
| PTO | |
| PTO Speed: Standard | 1000 rpm |
| PTO Speed: Optional | 540 rpm , CR- PTO with Multi speeds |
| BRAKES | |
| Brake type: Stanrad | Dry Disc type Brakes |
| Brake type: Optional | Oil Immersed Brakes |
| STEERING | |
| Standard | Mechanical Steering |
| Optional | Power steering |
| HYDRAULICS | |
| Live Hydraulics | Position control |
| Lifting Capacity | 1000 Kgf at lower link ends. |
| Linkage | 3 point linkage suitable for Category-I&II type implement pins. |
| TYRE TYPE | |
| Front Tyre Standard | 6.00 x 16 |
| Rear Tyre Standard | 13.6 x28 |
| Front Tyre /Rear Tyre Optional | 7.50 x16 / 14.9 X 28 |
| ELECTRICALS & ELECTRONICS | |
| Electricals | 12 Volt, 88 Ah |
| Instruments | Engine rpm cum |
| WEIGHTS & DIMENSIONS | |
| O.A. Length | 3440 mm |
| O.A. Width | 1730 mm |
| O.A. Height | 2275 mm |
| Wheel Base | 1950 mm |
| Min. Ground Clearance | 400 mm |
| Weight of Tractor | 1990 kg |
| Wheel Track | Front 1300 mm |
| Wheel Track | Rear 1350 mm (with 13.6*28 tyre type) |
Conclusion
Well, that’s the Swaraj 744 FE tractor specification. Is it a great unit to purchase? Yes it, is! But always make sure that this unit perfectly suits your need. If you have a small lawn to deal with, then purchasing this could be too much. Feel free to ask us your inquiries by placing it on the comment box below. Lastly, as usual, thank you for visiting this page!
