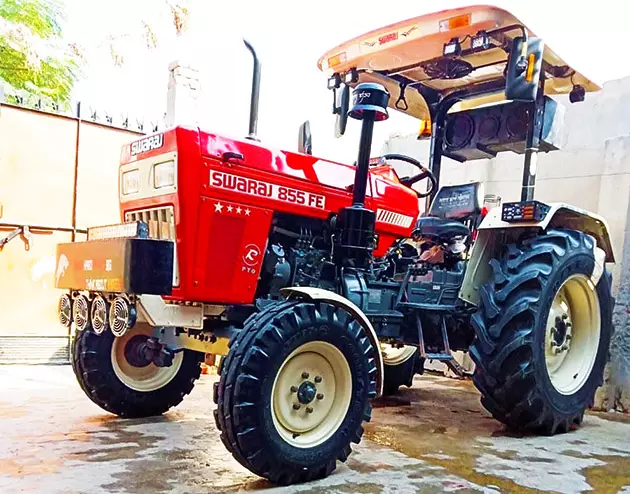

Swaraj 855 FE Tractor may not be known to many people. But if you are Indian, most likely you have known about this product, at least about its name. This tractor, with its red major color, provides you a strong engine which is designed wittily to deal with tough lawn operations. Wondering how good the tractor is? Make sure to read this information below.
Let’s talk about it first from its engine. This tractor is using Swaraj engine RB-33TR, which has 3-cylinder and is working in 3,307 cc of displacement. The tractor is working on rated engine speed of 2,000 rpm. According to its official site, the tractor can produce around 50-55 HP (37.2-41.0 kW) – which is pretty strong for such tractor.
Designed for such a tough job, it is not surprising that this huge tractor is equipped with a huge fuel tank as well. The fuel tank that complements the engine has a 60 L capacity. The engine is using diesel as its only fuel type.
Swaraj 855 FE Tractor is using mechanical steering with heavy duty single drop arm as its main steering mode. However, the tractor offers you another optional steering mode which is power steering. This enables you to easily control the tractor. For the brakes, this specific Swaraj tractor is using standard dry disc braking system.
Regarding the tractor’s dimension, according to its website, Swaraj 855 FE Tractor has a weight of 2,020 kg. This tractor is big and looking tough, as if it is truly designed to work with tough soil condition. Given the big weight, the tractor is very strong that it can deal with lifting 1,500 kgf.
What about the gearbox (transmission)? Swaraj 855 FE Tractor is using the combination of both sliding mesh and constant mesh transmission. It has dual clutch or single dry disc friction plate that has a diameter of 305 mm. As for the gears, there are 8 gears for forward movement and 2 gears for a reversed movement.
With that number of gears, you can expect a solid speed of 3.1-30.9 km per hour for forward movement, as for reversed movement, you can expect it to be up to 4.60 km per hour.
What about the price of this utility tractor? The price of Swaraj 855 FE Tractor can be considered as pretty cheap for such huge tractor with huge maximum power production as well. According to some online sources, the price of this Swaraj tractor is around 7.13-7.48 lakhs Indian rupees.
Swaraj 855 FE Price
- Price: ₹ 7,13,000 – ₹ 7,48,000
Related Post
Swaraj 855 FE Features
| Direction Control Valve (DCV) | Multi Speeds Forward & Reverse P.T.O |
| Power Steering | Dual Clutch |
| Adjustable Front Axle | Front – 7.50X16/Rear-16.9X28 |
Swaraj 855 FE Specification
| ENGINE | |
| Model | RB-33 TR |
| HP | 50-55 hp |
| Type | 4 Stroke, Direct injection, Diesel engine. |
| No. of Cylinders | 3 |
| Bore and Stroke | 110 X 116 mm |
| Displacement | 3307 cc |
| Rated Engine Speed | 2000 rev/min |
| Air Cleaner | 3- Stage Oil Bath Type |
| Cooling System | Water Cooled with No loss tank. |
| TRANSMISSION | |
| Clutch Standard | Single dry disc friction plate – 280mm dia. (11”) |
| Clutch Optional | Dual Clutch |
| GEAR SPEEDS | |
| No. of Gears | 8 Forward, 2 Reverse speeds |
| Forward | 3.1 to 30.9 |
| Reverse | 4.6 & 15.1 |
| PTO | |
| PTO Speed: Standard | 1000 rpm |
| PTO Speed: Optional | 540 rpm, CR-PTO with Multi speeds |
| BRAKES | |
| Brake type: Stanrad | Dry Disc type Brakes |
| Brake type: Optional | Oil Immersed Brakes |
| STEERING | |
| Standard | Mechanical Steering |
| Optional | Power steering |
| HYDRAULICS | |
| Live Hydraulics | Position control |
| Lifting Capacity | 1500 Kgf at lower link ends. |
| Linkage | 3 point linkage suitable for Category-I&II type implement pins. |
| TYRE TYPE | |
| Front Tyre Standard | 6.00 x 16 |
| Rear Tyre Standard | 14.9 x28 |
| Front Tyre /Rear Tyre Optional | (7.50 x 16 / 16.9 X 28)/(7.50 x 16 / 14.9 X 28)/(6.00 x 16 / 13.6 X 28) |
| ELECTRICALS & ELECTRONICS | |
| Electricals | 12 Volt, 88 Ah |
| Instruments | Engine rpm cum |
| WEIGHTS & DIMENSIONS | |
| O.A. Length | 3420 mm |
| O.A. Width | 1715 mm |
| O.A. Height | 2275 mm |
| Wheel Base | 2050 mm |
| Min. Ground Clearance | 400 mm |
| Weight of Tractor | 2020 kgs |
| Wheel Track | Front 1300 mm |
| Wheel Track | Rear 1350 mm (with 13.6*28 tyre size) |
Conclusion
Swaraj 855 FE Tractor is perfect for those with a need to use the tractor with cultivator, rotavator, seed drill, and trailer in a regular basis. Do you have any inquiries about this product? Feel free to ask. We will respond you back as soon as possible. Thank you for visiting this site and stay tuned for contents like this.
