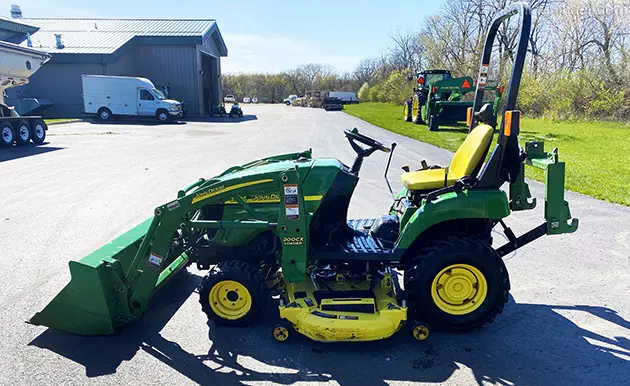

John Deere 2305 compact tractor is a tractor coming from Georgia, the United States. It is a tractor that is manufactured by John Deere and was released in 2006. Unfortunately, the tractor has been discontinued since 2011—meaning that what you find these days could be its secondhand version. If you wonder how the specification of this tractor is, make sure to read the information below.
First of all, let’s talk about the engine details. John Deere 2305 compact tractor is using Yanmar 3TNV76 with 3 cylinders equipping it. The unit is working with 1.1 L as its displacement, and it is working only with diesel as its fuel type. The tractor can produce 24.1 HP (equal to 18.0 kW) if set at rated RPM of 3,000.
To accommodate users to use the unit, a 5.5-gallon fuel tank is prepared. This tank’s capacity is equal to 20.8 L, which is quite big for the tractor. Aside from that, you should know that John Deere 2305 tractor is using dual dry element as its air cleaning system.
Regarding its mechanical aspect, John Deere 2305 compact tractor is using 4×4 MFWD 4WD as its chassis system. It uses power steering type which benefits the user to steer the unit easily without doing so much effort. Aside from that, the tractor is using wet disc braking system. Two-post fixed ROPS is used as its cab or ‘roofing’ system.
What about its transmission system? This tractor uses hydrostatic transmission type with infinite forward and reverse transmission gears. For both movements, you can get 2 range of speed (low and high) which you can use by shifting the gears first. But, keep in mind that you need to stop the tractor to shift the gears.
John Deere 2305 compact tractor can go with two ranges of speed—which are 4.1 miles per hour (equal to 6.6 km per hour) for low category, and 8.3 miles per hour (equal to 13.4 km per hour) for high speed category.
What about its attachments? John Deere 2305 compact tractor is also available to work with several kinds of attachments; these will include a 54-inch and 62-inch mower deck, both of which are mid-mounted. The tractor is also ready to work with a front-end loader.
John Deere 2305 Tractor Price
- Original Price: $11,069 (2011)
Related Post
- John Deere L110
- John Deere L120
- John Deere LA120
- John Deere LX178
- John Deere Tractor Price List in India
- John Deere X320
- John Deere 3120
- John Deere 870
- John Deere 265
- John Deere 425
John Deere 2305 Serial Numbers
| 2005 | 100001 |
| 2006 | 200001 |
| 2007 | 320001 |
| 2008 | 420001 |
| 2009 | 520001 |
| 2010 | 620001 |
John Deere 2305 Specification
| JOHN DEERE 2305 ENGINE | |
| Type | Yanmar 3TNV76 diesel 3-cylinder liquid-cooled |
| Displacement | 68 ci 1.1 L |
| Bore/Stroke | 2.99×3.23 inches 76 x 82 mm |
| Rated Power (EC 97/98) | 24.1 hp 18.0 kW |
| Air cleaner | dual dry element |
| Compression | 23.4:1 |
| Rated RPM | 3000 |
| Operating RPM | 1170-3170 |
| Torque | 41.7 lb-ft 56.5 Nm |
| Torque RPM | 3000 |
| Starter volts | 12 |
| Starter power | 1.6 hp 1.2 kW |
| Coolant capacity | 3.4 qts 3.2 L |
| JOHN DEERE 2305 TRANSMISSION | |
| Type | hydrostatic |
| Gears | infinite (2-range) forward and reverse |
| Oil capacity | 13.6 qts 12.9 L |
| JOHN DEERE 2305 HYDRAULICS | |
| Type | open center |
| Capacity | 3.4 gal 12.9 L |
| Pressure | 1987 psi 137.0 bar |
| Valves | 2 |
| Pump flow | 2.9 gpm 11.0 lpm |
| Total flow | 5.2 gpm 19.7 lpm |
| Steering flow | 2.3 gpm 8.7 lpm |
| JOHN DEERE 2305 TRACTOR HITCH | |
| Rear Type | I (limited) |
| Rear lift (at ends) | 1433 lbs 650 kg |
| Rear lift (at 24″/610mm) | 681 lbs 308 kg |
| JOHN DEERE 2305 CAPACITY | |
| Fuel | 5.5 gal 20.8 L |
| Hydraulic system | 3.4 gal 12.9 L |
| Front axle | 2.6 qts 2.5 L |
| JOHN DEERE 2305 POWER | |
| Engine (gross) | 24.1 hp 18.0 kW |
| PTO (claimed) | 18 hp 13.4 kW |
| JOHN DEERE 2305 MECHANICAL | |
| Chassis | 4×4 MFWD 4WD |
| Final drives | spur gear |
| Steering | power |
| Brakes | wet disc |
| Cab | Two-post fixed ROPS. |
| Transmission | hydrostatic |
| JOHN DEERE 2305 DIMENSIONS | |
| Wheelbase | 57.1 inches 145 cm |
| Length | 102.6 inches 260 cm |
| Width | 44.9 inches 114 cm |
| Height (hood) | 42 inches 106 cm |
| Height (ROPS) | 77.5 inches 196 cm |
| Clearance (front axle) | 7.7 inches 19 cm |
| Front tread | 39.6 inches 100 cm |
| Rear tread | 33.6 inches 85 cm |
| JOHN DEERE 2305 WEIGHT | |
| Shipping | 1450 lbs 657 kg |
| Operating | 1865 lbs 845 kg |
| Max Drawbar | 562 lbs 254 kg |
| Max front axle | 1654 lbs 750 kg |
| Max rear axle | 1477 lbs 669 kg |
| JOHN DEERE 2305 TYRES | |
| Lawn/turf front | 18×8.5-10 |
| Lawn/turf rear | 26×12.00-12 |
| Industrial front | 18×8.5-10 |
| Industrial rear | 26×12.00-12 |
| JOHN DEERE 2305 PTO | |
| Rear PTO | independent |
| Rear RPM | 540 |
| Mid PTO | independent |
| Mid RPM | 2100 |
| JOHN DEERE 2305 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 20 |
| Battery CCA | 500 |
| Battery volts | 12 |
John Deere 2305 Attachments
| 54″ MOWER DECK | |
| Type | mid-mount John Deere 54C |
| 3-blade | |
| Cutting width | 54 inches 137 cm |
| Weight | 170 lbs 77 kg |
| Cut height | 1 to 5 inch 2 to 12 cm |
| Cut positions | 13 |
| 62″ MOWER DECK | |
| Type | mid-mount John Deere 62C |
| 3-blade | |
| Cutting width | 62 inches 157 cm |
| Weight | 200 lbs 90 kg |
| Cut height | 1 to 5 inch 2 to 12 cm |
| Cut positions | 13 |
| JOHN DEERE 200CX LOADER | |
| Height (to pin) | 89.5 inches 227 cm |
| Clearance, dumped bucket | 58.5 inches 148 cm |
| Dump reach | 29.5 inches 74 cm |
| Dump angle | 38° |
| Reach at ground | 50.3 inches 127 cm |
| Rollback at ground | 25° |
| Rollback, raised | 105° |
| Breakout force (at pin) | 2239 lbs 1015 kg |
| Breakout force (at 500mm) | 1515 lbs 687 kg |
| Breakout force (bucket) | 1702 lbs 772 kg |
| Lift to full height (at pin) | 902 lbs 409 kg |
| Lift to full height (at 500mm) | 629 lbs 285 kg |
| Lift to 1.5m (at pin) | 1124 lbs 509 kg |
| Lift to 1.5m (at 500mm) | 827 lbs 375 kg |
| Bucket width | 53 inches 134 cm |
| Raise time to height | 3.19 s |
| Bucket dump time | 3.19 s |
| Lowering time | 1.95 s |
| Rollback time | 1.95 s |
John Deere 2305 Tractor Review Video
Related Post
Conclusion
That’s about John Deere 2305 compact tractor. Do you find this tractor offering you great specification? If so, you can purchase it if you’re sure about the product if you have any inquiries; feel free to ask us through the comment box below. Thank you for visiting our site and make sure to stay tuned so you can get more beneficial contents alike.
