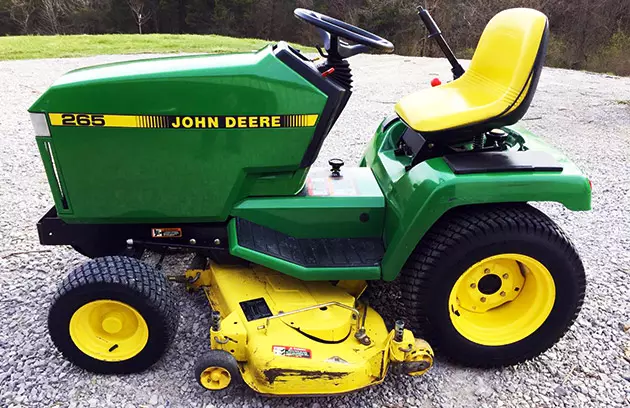

The John Deere 265 lawn tractor is a machinery model that was produced from 1988 to 1994 by the John Deere Company. It is categorized under the company’s 200 small tractors series as a late entry. The units were manufactured during the time when John Deere achieved milestones and underwent evolution, as it came out with its own tractor designs like the S and R series and it produced the millionth tractor.
The JD 265 has a length of 71.5 inch (1810 mm), a width of 41.5 inch (1050 mm), and a height of 43.6 inch (1100 mm). Its estimated weight is 630 pounds or 285 kg. By modern standards, it is quite overweight for its power – but still, it makes a capable equipment to execute gardening, landscaping, and agriculture tasks.
The John Deere 265 lawn tractor is equipped with Kawasaki FC540V engine with features of air-cooled, 1-cylinder, 4-store, gasoline powered, and vertical PTO shaft. It has 3.5 inch (89 mm) of cylinder bore and 3.39 inch (86 mm) of piston stroke. The engine can yield 17 horsepower (12.7 kW) @ 3600 rpm of maximum output power and 27.09 feet pounds (36.7 Nm or 3.74 kg/m) @ 2400 mm of torque power. It also has the rating of compression ratio in 8.3:1.
As an addition, the John Deere 265 lawn tractor comes with BDU-21 hydrostatic transmission that provides infinite F and R gears. It features internal expanding shoe brake, manual steering, and open operator station (OOS) platform. It offers electric starter as well. The capacity of its fuel tank is 3 gallons (11.4 liters).
Regardless of its size and moderate power, the John Deere 265 lawn tractor was designed to be capable and versatile power equipment. There are several types of attachment available for the owners. First is a 46-inch mid-mounted deck with 3-blade, manual lift, and 1.5 – 4 inches cutting height, and the second is a 46-inch (1160 mm) front-mounted blade with manual lift. Then finally, there’s also 42-inch front-mounted snow blower with manual lift and clearing width.
Read the following details to find out about the part specifications, features, serial numbers, price, and other information about the John Deere 265 lawn tractor.
John Deere 265 Price
- John Deere 265 Original Price: $1,750 USD
Related Post
- John Deere L110
- John Deere L120
- John Deere LA120
- John Deere LX178
- John Deere Tractor Price List in India
- John Deere X320
- John Deere 3120
- John Deere 870
- John Deere 425
John Deere 265 Serial Numbers
| 1988 | 457001 |
| 1989 | 595001 |
| 1990 | 010001 |
| 1991 | 100001 |
| 1992 | 130001 |
| 1993 | 150001 |
| 1994 | 160001 |
John Deere 265 Specification
| JOHN DEERE 265 ENGINE | |
| Engine | Kawasaki FC540V gasoline 1-cylinder air-cooled vertica-shaft |
| Displacement | 534 cc 32.6 ci |
| Bore/Stroke | 3.5×3.4 inches 89 x 86 mm |
| Power (gross) | 17 hp 12.7 kW |
| Air cleaner | dry element with foam pre-cleaner |
| Compression | 8.3:1 |
| Rated RPM | 3350 |
| Starter volts | 12 |
| Oil capacity | 2.6 qts 2.5 L |
| JOHN DEERE 265 TRANSMISSION | |
| Transmission | Sundstrand BDU-21 |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 2.6 qts 2.5 L |
| Oil type | Low-Viscosity Hy-Gard |
| JOHN DEERE 265 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 15 |
| Battery CCA | 341 |
| Battery volts | 12 |
| Battery Group | 22F |
| JOHN DEERE 265 MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | manual enclosed recirculating ball |
| Brakes | expanding mechanical shoe |
| Cab | Open operator station. Vinyl weather enclosure optional. |
| JOHN DEERE 265 DIMENSIONS | |
| Wheelbase | 47.9 inches 121 cm |
| Length | 71.5 inches 181 cm |
| Width | 41.5 inches 105 cm |
| Height | 43.6 inches 110 cm |
| Shiping weight | 630 lbs 285 kg |
| 755 lbs (with mower) 342 kg | |
| JOHN DEERE 265 TIRES | |
| Ag rear | 23×10.50-12 |
| Lawn/turf front | 16×6.50-8 |
| Lawn/turf rear | 23×10.50-12 |
John Deere 265 Attachments
| 46″ mid-mount mower deck |
| Snowblower |
| Blade |
| A 30-inch mechanical drive tiller was compatible with the John Deere 265. |
John Deere 265 Reviews Video
Related Post
- John Deere 2305
- John Deere 214
- John Deere X585
- John Deere 1010 Crawler
- John Deere X530
- John Deere 5520
- John Deere L118
Conclusion
The John Deere 265 lawn tractor is a type of equipment that can help you to reduce working time on lawn or field. You can decide whether this model would be suitable for your tasks by inspecting its specification details and features above.
