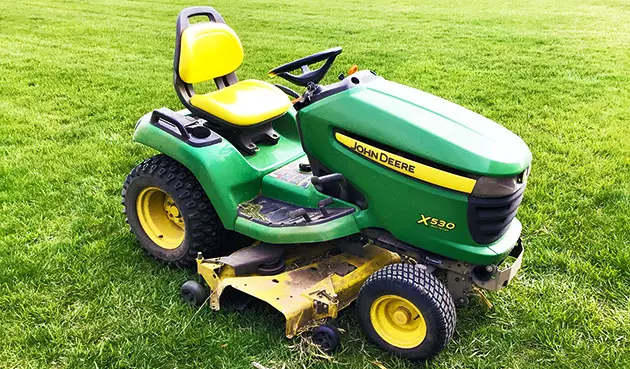

The John Deere X530 garden tractor is one of the many power equipment models manufactured by US-based company John Deere. The production of this tractor started in 2016. In regard of economy and performance factors, it is one of quite handful model you can purchase nowadays.
Even though the JD X350 falls into the higher-end side compared to other tractor models in its class, it sure provides standout capability and features as promised. Sitting at the price range of $5,500, this specific model is categorized in the segment of premium market. However, a lot of people justify the cost by stating that it offers great money value with all things considered.
The John Deere X530 garden tractor comes with economical FS600V iTorqueTM 603-CC engine produced by Kawasaki. This V-twin engine is capable of yielding optimum power output of 18.5 horsepower. It is equipped with 15A flywheel alternator that helps to regulate the battery powering to prevent overcharging.
For the transmission, the JD X350 uses Kanzaki IHT Transaxle K46, a hydrostatic transmission type that encompasses motor rotator groups and hydrostatic pumps in single place, with axle and differential places. This efficient design results in decreased sealing surface required, thus reducing leakage opportunities.
Other features included in the John Deere X530 garden tractor are overhead valve (OHV), cast iron cylinder liners, and full-pressure system of lubrication that comes with double stage air cleaner and exchangeable oil filter. All of these items contribute to the engine’s durability. For the versatility, the tractor is suitable with mower decks with broad size range to support mulching, side discharging, or grass bagging.
Meanwhile, the usability of this model leaves no room for doubt as well. The hydrostatic transmission comes with dual foot controls, so it basically works similar to the auto transmission in car. There is a cruise control on the mower, so the user can set certain speed when they perform mowing tasks. In addition, you can find adjustment tool and deck level gauge beneath the operator’s seat.
Below, you’ll find more data-based details of the John Deere X530 garden tractor, such as its specifications, features, serial numbers, price, and more.
John Deere X530 Price
- John Deere X530 Original Price: $6,799 USD
Related Post
- John Deere L110
- John Deere L120
- John Deere LA120
- John Deere LX178
- John Deere Tractor Price List in India
- John Deere X320
- John Deere 3120
- John Deere 870
- John Deere 265
- John Deere 425
John Deere X530 Serial Number
| 2010 | 050001 |
| 2011 | 060001 |
John Deere X530 Specification
| JOHN DEERE X530 ENGINE | |
| Engine | Kawasaki FH271V gasoline 2-cylinder air-cooled |
| Displacement | 675 cc 41.2 ci |
| Bore/Stroke | 2.96×2.99 inches 75 x 76 mm |
| Power (gross) | 25 hp 18.6 kW |
| Fuel system | carburetor |
| Starter | electric |
| Starter volts | 12 |
| JOHN DEERE X530 CAPACITY | |
| Fuel | 5 gal 18.9 L |
| JOHN DEERE X530 MECHANICAL | |
| Chassis | 4×2 2WD |
| Differential lock | foot-activated standard |
| Steering | hydraulic power |
| Brakes | wet disc |
| Cab | Open operator station with 15-inch seat and 7-inch adjustment. Cupholder, toolbox, and 12-volt outlet standard. |
| Transmission | hydrostatic |
| JOHN DEERE X530 TRANSMISSION | |
| Transmission | Kanzaki K72A |
| Type | hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 5.6 qts 5.3 L |
| JOHN DEERE X530 PTO | |
| Mid PTO | independent |
| Clutch | electric |
| JOHN DEERE X530 DIMENSIONS | |
| Wheelbase | 51.2 inches 130 cm |
| Length | 79 inches 200 cm |
| Width | 41 inches 104 cm |
| Height | 48 inches 121 cm |
| Weight | 850 lbs 385 kg (with mower) |
| JOHN DEERE X530 TIRES | |
| Lawn/turf front | 16×6.5-8 |
| Lawn/turf rear | 24×12-12 |
| JOHN DEERE X530 ELECTRICAL | |
| Ground | negative |
| Charging amps | 15 |
| JOHN DEERE X530 BATTERY | |
| Number | 1 |
| Cold-cranking amps | 500 |
| Volts | 12 |
John Deere X530 Attachments
| 54″ MOWER DECK | |
| Type | mid-mount John Deere 54X |
| 3-blade with hydraulic lift | |
| Cutting width | 54 inches 137 cm |
| Belt | M154897 (drive) |
| M154960 (deck) | |
| Weight | 153 lbs 69 kg |
| Overall width | 64.5 inches 163 cm |
| Cut height | 1 to 4 inch 2 to 10 cm |
| Cut positions | 13 |
John Deere X530 Review Video
Related Post
Conclusion
In general, the John Deere X530 garden tractor is an ideal equipment to use in medium to large sized lawn (around 2.5 acres). When you combine this machinery with additional items, or even use it on its own, it offers neat and clean grass cutting without required much labor effort.
