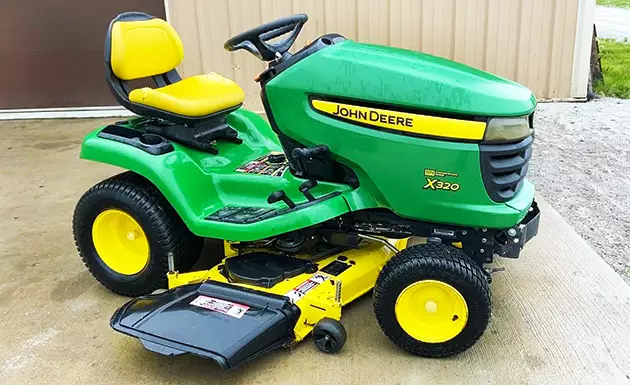

Yellow and green seems to be the trademark of John Deere X320 Lawn Tractor. This tractor, although being discontinued, still have a huge ‘fanbase’ thanks for its strength in helping you with various lawn projects. If you wonder what the specification of this tractor is, make sure to read through this article as we’ll show it to you the summary here.
As usual, let’s talk about the engine of John Deere X320 Lawn Tractor. This tractor is using the Japanese-made Kawasaki engine with a huge 675 cc of displacement. The engine is a 2-cylinder engine with gasoline as its only fuel type. The engine is air-cooled, meaning that you don’t need any liquid coolant to cool down the engine.
As mentioned, the engine is working on gasoline. To accommodate the need, you can get a 3.5-gallon fuel tank—which is equal to 13.2 L. With this engine spec, the power produced by John Deere X320 Lawn Tractor is 22 HP, or equal with 16.4 kW.
Onto its mechanical aspects, what you can get from this tractor is it’s 4×2 2WD chassis. The manual steering is used as the steering type and the tractor doesn’t have any roofing (open operator station). However, you should know that the tractor offers optional vinyl weather enclosure an a sunshade that you might need while working.
Not to forget, this tractor has an adjustable seating. This will enable you to move around with a max coverage of 7 inches. A tool tray and cup holder are also provided, hence you can grab a cup of coffee and put it on the cup holder while working on the lawn.
Regarding its transmissions, John Deere X320 Lawn Tractor is using Tuff Torq K58, belt-driven hydrostatic as its transmission type. The transmission gears type is infinite for both type of movements (forward and reverse).
Wondering the max speed of John Deere X320 Lawn Tractor? We got your back: for forward movement, you can rely on the tractor to take you up to 5.5 miles per hour (equal to 8.8 km per hour) for forward movement. While for reversed movement, you can go back with the max speed of 3.5 miles per hour (equal to 5.6 km per hour).
As said earlier, this unit has been discontinued since 2015. So, what you encounter today may be a secondhand product. According to sources, the price of this tractor in 2010 was somewhere around $4,000-$4,100.
John Deere X320 Price
- John Deere X320 Original Price: $4,099 (2010)
Related Post
- John Deere L110
- John Deere L120
- John Deere LA120
- John Deere LX178
- John Deere Tractor Price List in India
- John Deere 3120
- John Deere 870
- John Deere 265
- John Deere 425
John Deere X320 Serial Number
| 2006 | 010001 |
| 2007 | 040001 |
| 2008 | 085001 |
| 2009 | 120001 |
| 2010 | 150001 |
| 2011 | 180001 |
| 2012 | 220001 |
| 2013 | 250001 |
| 2014 | 280001 |
John Deere X320 Specification
| JOHN DEERE X320 ENGINE | |
| Engine | Kawasaki FH661V gasoline 2-cylinder air-cooled |
| Displacement | 675 cc 41.2 ci |
| Bore/Stroke | 2.96×2.99 inches 75 x 76 mm |
| Power | 22 hp 16.4 kW |
| Starter volts | 12 |
| Sparkplug gap | 0.030 inches 0.762 mm |
| Point gap | 0.013 inches 0.330 mm |
| Intake valve clearance | 0.004 inches 0.102 mm |
| Exhaust valve clearance | 0.004 inches 0.102 mm |
| JOHN DEERE X320 MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | manual |
| Cab | Open operator station. |
| JOHN DEERE X320 TRANSMISSION | |
| Transmission | Tuff Torq K58 |
| Type | hydrostatic |
| Gears | infinite forward and reverse |
| Oil change | sealed unit, service not recommended |
| JOHN DEERE X320 DIMENSIONS | |
| Wheelbase | 49.4 inches 125 cm |
| Length | 72 inches 182 cm |
| Width | 38.5 inches 97 cm |
| Height | 43 inches 109 cm |
| Operating | 548 lbs 248 kg (tractor only) |
| JOHN DEERE X320 TIRES | |
| Lawn/turf front | 15×6.5-8 |
| Lawn/turf rear | 22×11-10 |
| JOHN DEERE X320 ELECTRICAL | |
| Ground | negative |
| Charging amps | 15 |
| JOHN DEERE X320 BATTERY | |
| Number | 1 |
| Cold-cranking amps | 160 (early) |
| 195 (late) | |
| Volts | 12 |
John Deere X320 Attachments
| 48″ MOWER DECK | |
| Type | mid-mount John Deere 48X |
| 3-blade with manual lift | |
| Cutting width | 48 inches 121 cm |
| Weight | 133 lbs 60 kg |
| Overall width | 61.5 inches 156 cm |
| Cut height | 1 to 4 inch 2 to 10 cm |
| BLADE | |
| Type | front-mount John Deere |
| Width | 44 inches 111 cm |
| Lift height | 6 inches 15 cm |
| Lift | manual |
| Angle | manual |
| 44″ SNOW BLOWER | |
| Type | front-mount John Deere |
| dual-stage with manual lift | |
| Clearing width | 44 inches 111 cm |
John Deere X320 Review Video
Related Post
- John Deere 2305
- John Deere 214
- John Deere X585
- John Deere 1010 Crawler
- John Deere X530
- John Deere 5520
- John Deere L118
Conclusion
That’s what you need to know about John Deere X320 Lawn Tractor. Do you think this tractor is a nice catch? Feel free to ask us questions regarding this product and we will try to reach you back as soon as possible.
