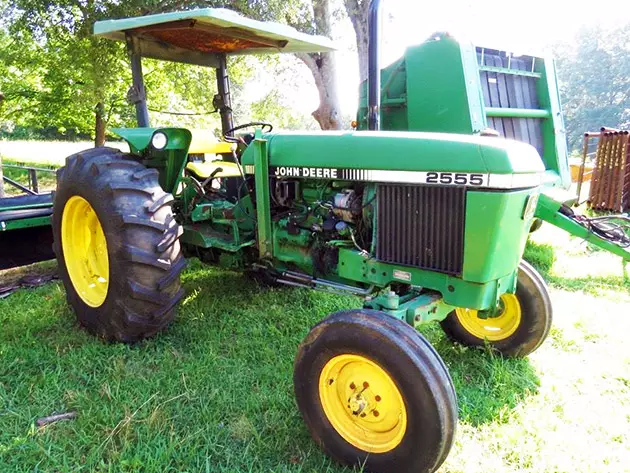

John Deere 2555 utility tractor is a two-wheel drive (2WD) or four-wheel drive (4WD) power equipment produced by Deere & Company – a United States-based worldwide manufacturer of farm machinery. It was a part of 55 Utility series, which include other models such as The John Deere 2155, 2355, 2755, 2855N, 2955, and 3155. The production process of the 2555 took places in Saltillo, Mexico and Württemberg, Germany, from 1987 to 1992.
There were two versions available of the John Deere 2555 utility tractor based on its engine: the basic version or the TSS transmission model. Both versions have wheelbase in the size of 89.7 inches (2270 mm) and weigh 6128 lbs (2820 kg). Both are also suitable for 7.50-16 rear and 7.50-16 front tires.
The first version of the 2555, which is the basic one, is equipped with CST transmission engine – a 3.9 L (239 cubic inch or 3916 cm2) 4-cylinder, naturally aspirated (NA) diesel engine. It has a cylinder bore in the size of 4.17 inches (106 mm) and a piston stroke in the size of 4.33 inches (110 mm). The engine has capability of producing 77 horsepower (57.4 kW or 78.1 PS). Its compression ratio is rated at 17.8:1.
Meanwhile, the newer versions come with TSS transmission machine – a 3.9 L (239 cubic inch or 3916 cm2) 4-cylinder, turbocharged diesel engine. It has a cylinder bore in the size of 4.17 inches (106 mm) and a piston stroke in the size of 4.33 inches (110 mm).
There were also three transmission options available of the John Deere 2555 utility tractor. First is the semi-power shift transmission with 16 F and 8 R gears. Second is the semi synchronized transmission with 8 F and 4 R gears. Third is the non-synchronous transmission with 8 F and 4 R gears. All of them are equipped with dry disc clutch.
Moreover, the John Deere 2555 utility tractor comes with power steering, ROPS, and optional Sound Gard cab for the TSS transmission engine version. This power equipment model has fuel tank capacity of 22.2 gallons (84 liters or 18.5 imperial gallons).
Learn more about the John Deere 2555 utility tractor by reading the following information about its specs, features, and others below.
John Deere 2555 Price
- John Deere 2555 Original Price: $25,000 (1992)
Related Post
- John Deere 1070
- John Deere 2320
- John Deere 4020
- John Deere 4110
- John Deere 4300
- John Deere 4310
- John Deere 5103
- John Deere 5105
- John Deere B
John Deere 2555 Serial Number
| 1987 | 600000 |
| 1988 | 624800 |
| 1989 | 651786 |
| 1990 | 685748 |
| 1991 | 718711 |
| 1992 | 747703 |
John Deere 2555 Specification
| JOHN DEERE 2555 ENGINE | |
| Engine | John Deere diesel 4-cylinder liquid-cooled |
| Displacement | 239 ci 3.9 L |
| Bore/Stroke | 4.19×4.33 inches 106 x 110 mm |
| Power | 77 hp 57.4 kW |
| Compression | 17.8:1 |
| Rated RPM | 2500 |
| Starter volts | 12 |
| Oil capacity | 10.6 qts 10.0 L |
| Coolant capacity | 13.7 qts 13.0 L |
| JOHN DEERE 2555 MECHANICAL | |
| Chassis | 4×2 2WD |
| 4×4 MFWD 4WD | |
| Steering | power |
| hydrostatic power (optional) | |
| Brakes | differential hydraulic wet disc |
| Cab | Roll-Gard ROPS. Optional Sound-Gard cab available with TSS transmission. |
| Transmissions | 8-speed non-synchronized |
| 8-speed partially synchronized | |
| 16-speed partial power shift | |
| 8-speed power shuttle | |
| JOHN DEERE 2555 POWER | |
| Engine | 77 hp 57.4 kW |
| Drawbar (claimed) | 56 hp 41.8 kW |
| PTO (claimed) | 65 hp 48.5 kW |
| JOHN DEERE 2555 PTO | |
| Rear PTO | live (two-stage clutch) |
| independent (with TSS) | |
| Rear RPM | 540 (CST) |
| 540/1000 (TSS) | |
| Front PTO | independent* |
| Front RPM | 1000 |
| JOHN DEERE 2555 TRACTOR HITCH | |
| Rear Type | II/I |
| Rear lift | 3269 lbs 1482 kg |
| Front Hitch | II* |
| Front lift | 3372 lbs 1529 kg |
| JOHN DEERE 2555 HYDRAULICS | |
| Type | closed center |
| Pressure | 2320 psi 160.0 bar |
| Valves | 1 to 3 |
| Total flow | 13 gpm 49.2 lpm |
| 23 gpm 87.1 lpm * | |
| JOHN DEERE 2555 TRANSMISSION | |
| Transmission | John Deere Collar Shift (CST) |
| Type | non-synchronized |
| Gears | 8 forward and 4 reverse |
| Clutch | dry disc |
| JOHN DEERE 2555 WEIGHT | |
| Shipping | 6,218 lbs 2820 kg (2WD ROPS) |
| 7,199 lbs 3265 kg (2WD cab) | |
| 7,045 lbs 3195 kg (4WD ROPS) | |
| 7,717 lbs 3500 kg (4WD cab) | |
| JOHN DEERE 2555 DIMENSIONS | |
| Wheelbase | 89.7 inches 227 cm |
| JOHN DEERE 2555 TIRES | |
| Ag front | 7.50-16 |
| Ag rear | 15.5-38 |
| 12.4-42 | |
| 16.9-24 | |
| 16.9-28 | |
| 16.9-30 | |
| 16.9-34 | |
| 18.4-30 | |
| JOHN DEERE 2555 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 55 |
| 85 (with cab) | |
| Batteries | 2 |
| Battery CCA | 400 |
| Battery volts | 12 |
John Deere 2555 Review Video
Related Post
- John Deere G110
- John Deere GT225
- John Deere GT262
- John Deere GX75
- John Deere GX335
- John Deere GX345
- John Deere L130
- John Deere LA100
- John Deere LA140
- John Deere LA175
Conclusion
In order to make sound tractor buying decision, you need to obtain information about the model you’re planning to purchase. The details provided above about the John Deere 2555 utility tractor might be able to help you see if it’d be the right equipment for you.
