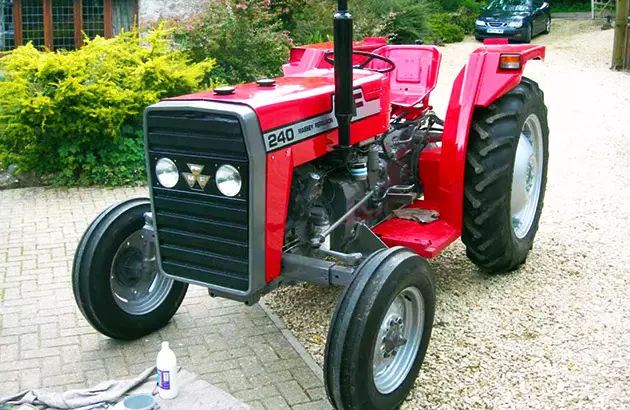

Massey Ferguson 240 tractor is one of the best options when it comes to the utility tractor. This one is manufactured originally in the United Kingdom, but it has now spread world-wide. It has been around for sometimes as the tractor started hitting the market in the late 1970s (in UK), and by early to mid-1980s, it has expanded its manufacturing process to North America area.
Moreover, the tractor is the complete and beneficial equipment. It has basically everything you need to make sure you can do a lot of daily tasks easily, such as plowing, mowing the lawn, and loading heavy stuff. It has great engine as well as other features to enhance the overall performance of the tractor. Now, let’s discuss everything about Massey Ferguson 240 tractor.
Starting from the engine, this tractor is completed by a great engine indeed. The engine used in this Massey Ferguson 240 tractor is the one from Perkins. This Perkins AD3 152 engine uses diesel as its base. The engine also has numerous features, including its liquid-cooled technology. Of course, with the help of 3-cylinder engine, the tractor can generate up to 46 horsepower at approximately rpm 2000 rate.
Speaking of the operation, it won’t be something so hard to do. Thanks to the tractor’s lots of useful features, including the power steering which has been completed by hydrostatic feature. It also has 8 forward and 2 reverse gears to help you operate the tractor more easily. Moreover, there is chassis of 4×2 2WD or 4×4 MFWD 4WD size as well. For the weight, Massey Ferguson 240 tractor is about 4585 lbs.
For you who want to figure out more about Massey Ferguson 240 tractor, including its price, specs, attachment, and reviews, you should continue reading as you will find out about the information below. You can also take a good look at the tractor’s image, so examining its detailed design won’t be something hard to do. Here is the further information that you should read before making decision to buy the tractor.
Massey Ferguson 240 Price
- Original Price: $18,800 (1998)
Related Post
- Massey Ferguson 1010
- Massey Ferguson Tractors Price List In USA
- Massey Ferguson 241 DI Tonner
- Massey Ferguson 135
- Massey Ferguson 65
- Ferguson TO-30
- Massey Ferguson 165
- Massey Ferguson 255
- Massey Ferguson 1030
Massey Ferguson 240 Serial Numbers
| Location | Instrument panel, lower right |
| 1983 | 524172 |
| 1984 | 552016 |
| 1985 | 557882 |
| 1986 | 862369 |
| 1986 (late) | U01001 |
| 1987 | V01001 |
| 1988 | N01001 |
| 1989 | P01001 |
| 1990 | R01001 |
| 1991 | S01001 |
| 1992 | A01001 |
| 1993 | B01001 |
| 1994 | C01001 |
| 1995 | D01001 |
| 1996 | E01001 |
| 1997 | F01001 |
| 1998 | G01001 |
Massey Ferguson 240 Specification
| MASSEY FERGUSON 240 ENGINE | |
| Engine | Perkins AD3.152 diesel 3-cylinder liquid-cooled |
| Displacement | 152 ci 2.5 L |
| Bore/Stroke | 3.60×5.00 inches 91 x 127 mm |
| Power | 46 hp 34.3 kW |
| Air cleaner | dual dry element |
| Pre-heating | ether (optional) |
| block heater (optional) | |
| Rated RPM | 2000 |
| Starter volts | 12 |
| Coolant capacity | 10.4 qts 9.8 L |
| MASSEY FERGUSON 240 TRANSMISSION | |
| Type | sliding gear |
| Gears | 8 forward and 2 reverse |
| Tractor must be stopped, and clutch used, to shift gears. | |
| MASSEY FERGUSON 240 CAPACITY | |
| Fuel | 12.6 gal 47.7 L |
| Hydraulic system | 8.6 gal 32.6 L |
| MASSEY FERGUSON 240 TRACTOR HITCH | |
| Rear Type | II/I |
| Control | position and draft control |
| MASSEY FERGUSON 240 HYDRAULICS | |
| Type | open |
| Capacity | 8.6 gal 32.6 L |
| Valves | 2 |
| Pump flow | 9.5 gpm 36.0 lpm |
| MASSEY FERGUSON 240 POWER | |
| Engine | 46 hp 34.3 kW |
| PTO (claimed) | 41 hp 30.6 kW |
| Drawbar (tested) | 28.69 hp 21.4 kW |
| PTO (tested) | 34.77 hp 25.9 kW |
| MASSEY FERGUSON 240 TIRES | |
| Standard tires (ag) | Front: 6.00-16. Rear: 13.6-28 (2WD) |
| Front: 10.5/80-18. Rear: 14.9-24 (4WD) | |
| MASSEY FERGUSON 240 PTO | |
| Rear PTO | live (two-stage clutch) |
| Rear RPM | 540 |
| MASSEY FERGUSON 240 MECHANICAL | |
| Chassis | 4×2 2WD |
| 4×4 MFWD 4WD | |
| Steering | hydrostatic power |
| Brakes | mechanical drum (early) |
| differential mechanical wet disc (late) | |
| Cab | Two-post ROPS. Canopy optional. |
| Transmission | 8-speed sliding gear |
| MASSEY FERGUSON 240 DIMENSIONS | |
| 2WD Wheelbase | 76.1 inches 193 cm |
| 4WD Wheelbase | 77 inches 195 cm |
| 2WD Length | 124.6 inches 316 cm |
| 4WD Length | 127.1 inches 322 cm |
| Width | 66.1 inches 167 cm |
| 2WD Height (ROPS) | 87 inches 220 cm |
| 4WD Height (ROPS) | 86 inches 218 cm |
| 2WD Ground clearance | 9.8 inches 24 cm |
| 4WD Ground clearance | 10.5 inches 26 cm |
| Front tread | 52 to 72 inches 132 to 182 cm |
| Rear tread | 52 to 76 inches 132 to 193 cm |
| MASSEY FERGUSON 240 WEIGHT | |
| 2WD | 4,015 lbs 1821 kg |
| 4WD | 4,585 lbs 2079 kg |
| 2WD Operating | 4,215 lbs 1911 kg |
| Ballasted | 4,985 lbs 2261 kg |
| MASSEY FERGUSON 240 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 32 |
| Battery volts | 12 |
Massey Ferguson 240 Attachments
| MASSEY FERGUSON 232 LOADER | |
| Height (to pin) | 106 inches 269 cm |
| Clearance, dumped bucket | 80 inches 203 cm |
| Dump reach | 25.4 inches 64 cm |
| Dump angle | 42.5° |
| Reach at ground | 63.4 inches 161 cm |
| Rollback at ground | 13° |
| Breakout force (at pin) | 2600 lbs 1179 kg |
| Lift to full height (at pin) | 1800 lbs 816 kg |
| Bucket width | 72 inches 182 cm |
| Raise time to height | 6 s |
| Bucket dump time | 4 s |
| Lowering time | 5 s |
| Rollback time | 3 s |
| MASSEY FERGUSON 236 LOADER | |
| Height (to pin) | 125 inches 317 cm |
| Clearance, dumped bucket | 102 inches 259 cm |
| Dump reach | 33.5 inches 85 cm |
| Dump angle | 36° |
| Reach at ground | 74 inches 187 cm |
| Rollback at ground | 10° |
| Breakout force (at pin) | 3420 lbs 1551 kg |
| Lift to full height (at pin) | 2500 lbs 1134 kg |
| Bucket width | 72 inches 182 cm |
| Raise time to height | 8.7 s |
| Bucket dump time | 5.6 s |
| Lowering time | 4.2 s |
| Rollback time | 3.2 s |
Massey Ferguson 240 Review Video
Related Post
Conclusion
In conclusion, Massey Ferguson 240 tractor is definitely a great tractor with useful features. Thank you for reading this post, and if you like to say something about the post or suggest anything, please leave a comment in the comment box. We will try to reach out to you and reply the comment as soon as we can.
