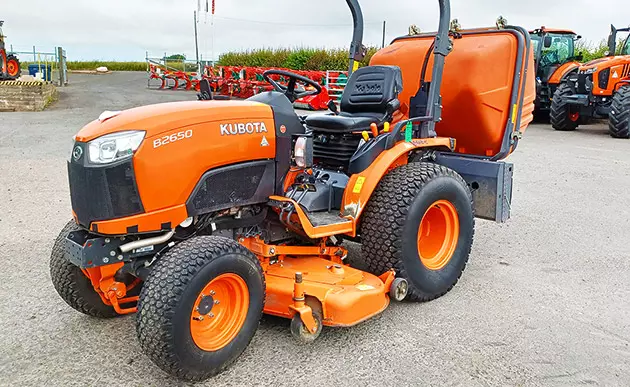

If you are looking for a huge tractor to deal with various works in your big-sized lawn, you can truly rely on Kubota B2650 Compact Utility Tractor. This is because the tractor is so powerful and has features that may help you a lot to deal with the lawn work. If you want to know about its specification, make sure to read through this article below.
First of all, let’s talk about Kubota B2650 Compact Utility Tractor engine. This tractor uses the self-made Kubota engine with 3 cylinders and 1.3 L displacement (equal to 77 ci). The engine is liquid-cooled, meaning you need to add specific liquid coolant to help the engine control its temperature. The engine can help you to produce a solid 26 HP (19.4 kW) if working at 2,600 rated RPM.
Regarding its fuel, the engine uses diesel as its only source of fuel. The tractor accommodates you with a fuel tank which can be filled full up to 7.3 gallons—equal to 27.6 L. Indeed, this can be categorized as a huge fuel tank for a tractor.
What about its mechanical aspects? Kubota B2650 Compact Utility Tractor comes with two variants which differ in its roofing system. The first variant, which is B2650HSD, is using ROPS for the roof. While the other variant B2650HSDC is using cab as the hood. However, both variants share the same chassis type, which is 4×4 MFWD 4WD.
Aside from that Kubota B2650 Compact Utility Tractor is using power steering and wet disc as its braking system. Hydrostatic transmission is used in this tractor which will be explained further in this article.
The transmission type used in this tractor is hydrostatic with infinite gears for both kinds of movements: reversed and forward. However, stated in one source is that the speeds are classified into three-stages: low, medium, and high.
For forward movement, you can expect Kubota B2650 Compact Utility Tractor to run 3.6-11.8 miles per hour (equal to 5.8-19.0 km per hour), while for reversed movement you can go with 2.7-8.9 miles per hour (equal to 4.3-14.3 km per hour).
What about the price of this tractor? This Kubota tractor is still manufactured until today, and the original price for both variants differ significantly. Prepare a budget from $17,000-$25,000 for both ROPS and Cab variant, respectively. Note that the price is the 2014 price. So you may encounter difference with today’s price.
Kubota B2650 Price
- Original Price: $16,572 (2014 ROPS), $24,195 (Cab)
Related Post
- Kubota Tractors Prices USA
- Kubota BX23S
- Kubota BX25
- Kubota G5200
- Kubota L2501
- Kubota B2601
- Kubota B2620
- Kubota B3300SU
- Kubota B5200
Kubota B2650 Specification
| KUBOTA B2650 HISTORY | |
| Manufacturer | Kubota |
| Original price (USD) | $16,572 (2014 ROPS ) |
| $24,195 ( Cab ) | |
| KUBOTA B2650 DIESEL ENGINE | |
| Engine | Kubota D1305 diesel 3-cylinder liquid-cooled 77 ci [1.3 L] |
| Bore/Stroke | 3.1×3.5 inches [79 x 89 mm] |
| Emissions | Tier IV |
| Power (gross) | 26 hp [19.4 kW] |
| Air cleaner | dual paper elements |
| Rated RPM | 2500 |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 4.2 qts [4.0 L] |
| Coolant capacity | 4.5 qts [4.3 L] |
| KUBOTA B2650 TRANSMISSION | |
| Type | hydrostatic |
| Gears | infinite (3-range) forward and reverse |
| Oil capacity | 16 qts [15.1 L] |
| KUBOTA B2650 HYDRAULICS | |
| Type | open center |
| Valves | 1 |
| Pump flow | 5 gpm [18.9 lpm] |
| Total flow | 8.7 gpm [32.9 lpm] |
| Steering flow | 3.7 gpm [14.0 lpm] |
| KUBOTA B2650 3 POINT HITCH | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 2139 lbs [970 kg] |
| Rear lift (at 24″/610mm) | 1676 lbs [760 kg] |
| KUBOTA B2650 CAPACITY | |
| Fuel | 7.3 gal [27.6 L] |
| KUBOTA B2650 POWER | |
| Engine (gross) | 26 hp [19.4 kW] |
| PTO (claimed) | 19.5 hp [14.5 kW] |
| KUBOTA B2650 TIRES | |
| Standard tires (ag) | Front: 7-12. Rear: 12.4-16 |
| Lawn/turf front | 24×8.50-14 |
| Lawn/turf rear | 13.6-16 |
| Industrial front | 23×8.50-14 |
| Industrial rear | 12.4-16 |
| KUBOTA B2650 PTO | |
| Rear PTO | independent |
| Clutch | hydraulic |
| Rear RPM | 540 (1.375) |
| Mid RPM | 2500 |
| KUBOTA B2650 MECHANICAL | |
| Chassis | 4×4 MFWD 4WD |
| Final drives | spur gear |
| Differential lock | standard |
| Steering | power |
| Brakes | wet disc |
| Cab | Two-post foldable ROPS. Cab optional with air-conditioning. |
| KUBOTA B2650 DIMENSIONS | |
| Weight | 1786 lbs [810 kg] (ROPS) |
| 2293 lbs [1040 kg] (Cab) | |
| Wheelbase | 65.6 inches [166 cm] |
| Length | 101.2 inches [257 cm] |
| Width | 53.7 inches [136 cm] |
| Height (ROPS) | 88.4 inches [224 cm] |
| Height (cab) | 84.6 inches [214 cm] |
| Ground clearance | 14.6 inches [37 cm] |
| KUBOTA B2650 BATTERY | |
| Number | 1 |
| Cold-cranking amps | 430 |
| Volts | 12 |
| KUBOTA B2650 ELECTRICAL | |
| Ground | negative |
| ROPS Charging system | dynamo |
| Cab Charging system | alternator |
| ROPS Charging amps | 14.5 |
| Cab Charging amps | 40 |
Kubota B2650 Attachments
| 60″ MOWER DECK | |
| Type | mid-mount Kubota RCK60-30BA |
| 3-blade | |
| Cutting width | 60 inches [152 cm] |
| Weight | 374 lbs [169 kg] |
| Cut height | 1.5 to 4.0 inch [3 to 10 cm] |
| 72″ MOWER DECK | |
| Type | mid-mount Kubota RCK72-30B |
| 3-blade | |
| Cutting width | 72 inches [182 cm] |
| Weight | 463 lbs [210 kg] |
| Cut height | 1.5 to 4.0 inch [3 to 10 cm] |
| LOADER | |
| Loader type | Kubota LA534A |
| Height (to pin) | 84.6 inches [214 cm] |
| Clearance, dumped bucket | 67.4 inches [171 cm] |
| Dump angle | 38.1 |
| Rollback angle | 28.6 |
| Breakout force (at pin) | 2321 lbs [1052 kg] |
| Breakout force (at 500mm) | 1691 lbs [767 kg] |
| Lift to full height (at pin) | 1146 lbs [519 kg] |
| Lift to full height (at 500mm) | 827 lbs [375 kg] |
| BACKHOE | |
| Backhoe type | Kubota BH77 |
| 2-Foot flat digging depth | 91.8 inches [233 cm] |
| Reach from pivot | 124.6 inches [316 cm] |
| Loading height | 66.7 inches [169 cm] |
| Swing Arc | 180 |
Kubota B2650 Review Video
Related Post
- Kubota B6000
- Kubota B7200
- Kubota BX25D
- Kubota BX1500
- Kubota BX1870
- Kubota BX2230
- Kubota BX2680
- Kubota L175
- Kubota M6800
- Kubota M7060
Conclusion
That sums up the details of Kubota B2650 Compact Utility Tractor, which includes the tractor’s specification as well as the price. If you have any inquiries regarding the tractor, feel free to ask us about that, simply by leaving a comment in the provided space below. Thank you for visiting this website and stay tuned for more contents alike.
