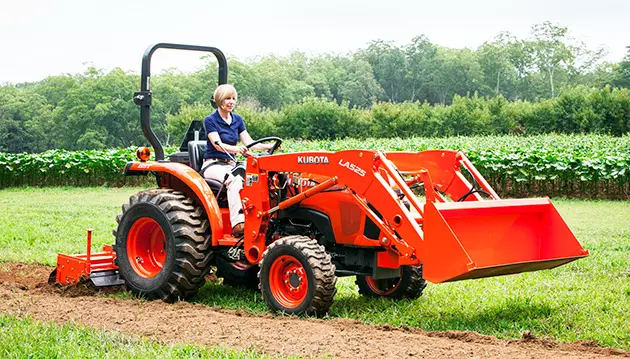

Kubota L2501 Compact Utility Tractor – The Kubota L2501 Compact Utility Tractor is outdoor equipment produced by Kubota using a 3-cylinder engine that burns diesel. The 100.47 ci diesel engine does not use a diesel particulate filter, but the engine has passed the EPA Final Tier 4 requirements and it is compliant with the regulation.
With a speed rating of 2200 RPM, the engine can produce up to 24.8 hp by utilizing a direct injection mechanism for fuel burning. The Kubota L2501 Compact Utility Tractor also uses the hydrostatic transmission for some of its variants that can produce up to 19 hp. Meanwhile, the variants that use gear transmission can produce more power, which is about 20.5 hp. On the aspect of operation comfort and agility, the tractor uses an open operator station design equipped with a dry plate clutch.
There are two types of chassis that are being used on the Kubota L2501 Compact Utility Tractor. The first type is the 4×2 2WD while the other is the 4×4 MFWD 4WD. The engine itself uses a liquid-cooling mechanism to fight the heat produced by the operation which will require operators to fill the cooling system with up to 6.6 L of coolant liquid. The ignition system uses a 12 V battery, which is a standard for most utility tractors from Kubota.
So, now that we have discussed the basic specifications of the Kubota L2501 Compact Utility Tractor, you can also find out more about the tractor regarding the price, other specifications, user reviews, and other aspects by reading the article from top to bottom. We do hope that this article can be useful especially if you are still trying to make a decision to get a unit for your lawn or garden.
Kubota is one of the most notable companies in the world that produces various heavy types of machinery and equipment for a lot of essential industries. They are not only known for their high-quality utility tractors, but they also make water treatment systems, tractor engines, vending machines, and other smaller products that are used for construction and agriculture. Established 131 years ago, the company now has the main office in Osaka, Japan. Currently, they have more than 38,000 employees operating their various office locations around the world.
Kubota L2501 Price
- Original Price $19,870 USD
Related Post
- Kubota Tractors Prices USA
- Kubota BX23S
- Kubota BX25
- Kubota G5200
- Kubota B2601
- Kubota B2620
- Kubota B2650
- Kubota B3300SU
- Kubota B5200
Kubota L2501 Specification
KUBOTA L2501 DIESEL ENGINE | |
Engine | Kubota diesel 3-cylinder liquid-cooled 100.47 ci [1.6 L] |
Bore/Stroke | 3.4×3.6 inches [86 x 91 mm] |
Emissions | Tier IV |
Power (gross) | 24.8 hp [18.5 kW] |
Fuel system | direct injection |
Rated RPM | 2200 |
Starter | electric |
Starter volts | 12 |
KUBOTA L2501 HYDRAULICS | |
Type | open center |
Pressure | 2205 psi [152.0 bar] |
Pump flow | 5.15 gpm [19.5 lpm] |
Steering flow | 3.13 gpm [11.8 lpm] |
KUBOTA L2501 POWER | |
Engine (gross) | 24.8 hp [18.5 kW] |
Engine (net) | 23.9 hp [17.8 kW] |
Gear PTO (claimed) | 20.5 hp [15.3 kW] |
Hydro PTO (claimed) | 19 hp [14.2 kW] |
KUBOTA L2501 TRANSMISSION | |
Type | gear |
Gears | 8 forward and 4 reverse |
Clutch | dry disc |
Four gears (1-4) in two forward ranges (low/high) plus reverse. | |
KUBOTA L2501 CAPACITY | |
Fuel | 10 gal [37.9 L] |
KUBOTA L2501 3 POINT HITCH | |
Rear Type | I |
Control | position control |
Rear lift (at ends) | 1918 lbs [870 kg] |
Rear lift (at 24″/610mm) | 1389 lbs [630 kg] |
KUBOTA L2501 TIRES | |
Standard tires (ag) | Front: 5-15. Rear: 11.2-24 (2WD) |
Front: 7.2-16. Rear: 11.2-24 (4WD) | |
Industrial front | 27×8.50-15 (4WD) |
Industrial rear | 15-19.5 (4WD) |
KUBOTA L2501 PTO | |
Rear PTO | transmission* |
live* | |
Clutch | overrunning dry disc |
Rear RPM | 540 (1.375) |
KUBOTA L2501 BATTERY | |
Number | 1 |
Cold-cranking amps | 490 |
Volts | 12 |
KUBOTA L2501 ELECTRICAL | |
Ground | negative |
Charging system | alternator |
Charging amps | 40 |
Charging volts | 12 |
KUBOTA L2501 MECHANICAL | |
Chassis | 4×2 2WD* |
4×4 MFWD 4WD | |
Steering | power |
Brakes | mechanical wet disc |
Cab | Two-post folding ROPS. |
KUBOTA L2501 DIMENSIONS | |
2WD Gear Weight | 2425 lbs [1099 kg] |
4WD Gear Weight | 2601 lbs [1179 kg] |
4WD Hydro Weight | 2623 lbs [1189 kg] |
Wheelbase | 63.3 inches [160 cm] |
2WD Length | 110.6 inches [280 cm] |
4WD Length | 106.3 inches [270 cm] |
Width | 55.1 inches [139 cm] |
Height (ROPS) | 91.7 inches [232 cm] |
2WD Ground clearance | 13.6 inches [34 cm] |
4WD Ground clearance | 13.4 inches [34 cm] |
Front tread | 41.3 inches [104 cm] (2WD)43.1 inches [109 cm] (4WD) |
Rear tread | 43.8/47.1/50.8 inches [111/119/129 cm] |

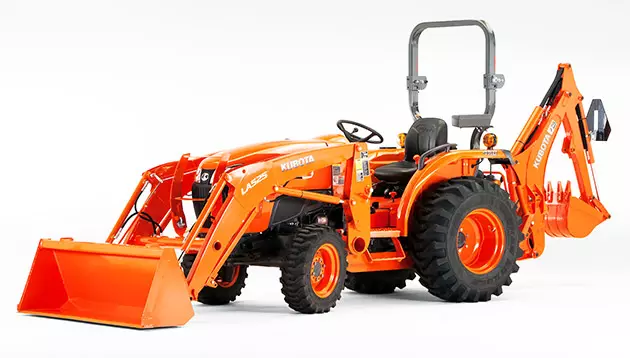

Kubota L2501 Tractor Attachments
LOADER | |
Loader type | Kubota LA525 |
Height (to pin) | 94.3 inches [239 cm] |
Lift to full height (at pin) | 1131 lbs [513 kg] |
Lift to 1.5m (at pin) | 1490 lbs [675 kg] |
Lift to 1.5m (at 500mm) | 1182 lbs [536 kg] |
BACKHOE | |
Backhoe type | Kubota BH77 |
Kubota L2501 Review Video
Related Post
- Kubota B6000
- Kubota B7200
- Kubota BX25D
- Kubota BX1500
- Kubota BX1870
- Kubota BX2230
- Kubota BX2680
- Kubota L175
- Kubota M6800
- Kubota M7060
Conclusion
The aspects of the Kubota L2501 Compact Utility Tractor are important to be understood if you want to get the unit to manage and clean up your lawn and garden. Make sure that you also know about the price and other specifications of this unit and then compare it with the specifications from other tractors.
