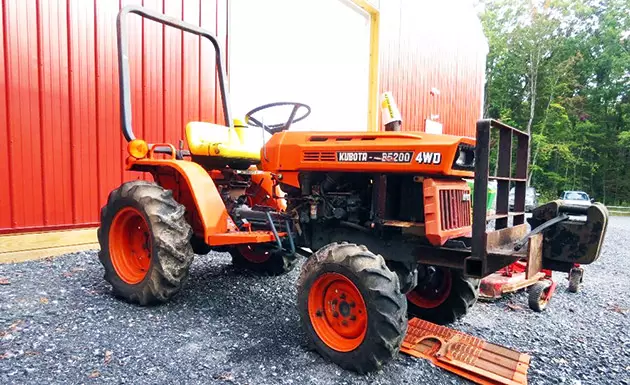

Kubota B5200 Compact Utility Tractor is just another Kubota tractor with its outstanding features. If you are curious about this tractor’s specification and price, make sure to read the article thoroughly. We will disclose the information regarding this tractor—including the specification and price.
First of all, let’s talk about Kubota B5200 Compact Utility Tractor engine. Just like other kinds of Kubota tractor, this tractor is using Kubota engine. This one is using Kubota D750 with its 3 cylinders and 0.8 L displacement (equal with 46.5 ci). This engine is liquid-cooled—meaning that you need to add liquid coolant into your budget to use this tractor.
The tractor is using diesel as its main and the only fuel type. Its big fuel tank—which is enough for 4.0 US gallons (15.0 L)—is ready to accommodate the users. Additionally, the engine can produce 13 HP, which can be stated as 9.7 kW in another power unit.
What about its mechanical aspect? According to a source, Kubota B5200 Compact Utility Tractor is using 4×2 2WD or 4×4 MFWD 4WD as its chassis—meaning you can choose one from two options offered. It uses manual steering type and dry internal braking system.
If you are expecting a tractor that has a roofing system, this piece will be able to give you that. The cabin type of Kubota B5200 Compact Utility Tractor is open operator station with two-post ROPS (Roll Over Protective Structure).
To help you move the tractor, the gear shift system is used as part of its transmission type. This tractor is using 6 forward and 2 reverse gears. For forward movement, expect to speed up to 7.5 miles per hour (equal to 12.0 km per hour). As for the reversed movement, you can go back with a maximum speed of 3.7 miles per hour (equal to 6.0 km per hour).
What about the tractor’s dimension? According to a source, this tractor weighs around 480 kg—which is equal to 1058.2 lbs. There are several types of attachments you can get to work along with Kubota B5200 Compact Utility Tractor, such as rear finish mower, tiller, plow, snowblower, and loader.
The price for this unit is $8,250 for its 4WD chassis. However, since the price is what you can find in 1990, there might be a huge difference with today’s price for this Kubota.
Kubota B5200 Price
- Kubota B5200 Original Price: $8,250 (1990 4WD)
Related Post
- Kubota Tractors Prices USA
- Kubota BX23S
- Kubota BX25
- Kubota G5200
- Kubota L2501
- Kubota B2601
- Kubota B2620
- Kubota B2650
- Kubota B3300SU
Kubota B5200 Serial Number
| 1983 | 10003 |
| 1984 | 11800 |
| 1985 | 30003 |
| 1986 | 48216 |
| 1987 | 66409 |
| 1988 | 74602 |
| 1989 | 82795 |
| 1990 | 90488 |
| 1991 | 97681 |
| 1992 | 104372 |
Kubota B5200 Specification
| KUBOTA B5200 DIESEL ENGINE | |
| Engine | Kubota D750 diesel 3-cylinder liquid-cooled 46.5 ci [0.8 L] |
| Bore/Stroke | 2.68×2.76 inches [68 x 70 mm] |
| Power (gross) | 13 hp [9.7 kW] |
| Air cleaner | dry |
| Rated RPM | 2500 |
| Oil capacity | 3.6 qts [3.4 L] |
| Coolant capacity | 4.9 qts [4.6 L] |
| KUBOTA B5200 TRANSMISSION | |
| Type | gear |
| Gears | 6 forward and 2 reverse |
| Clutch | dry plate |
| Oil capacity | 12.7 qts [12.0 L] |
| KUBOTA B5200 MECHANICAL | |
| Chassis | 4×2 2WD |
| 4×4 MFWD 4WD | |
| Steering | manual |
| Brakes | dry internal expanding |
| Cab | Two-post ROPS. |
| KUBOTA B5200 PTO | |
| Rear PTO | transmission |
| Rear RPM | 540/825 |
| Front PTO | optional |
| Front RPM | 2500 |
| KUBOTA B5200 POWER | |
| Engine (gross) | 13 hp [9.7 kW] |
| PTO (claimed) | 11.5 hp [8.6 kW] |
| Plows | 1* |
| KUBOTA B5200 3 POINT HITCH | |
| Rear Type | I |
| Rear lift | 1,036 lbs [469 kg] |
| KUBOTA B5200 DIMENSIONS | |
| 2WD Weight | 1058 lbs [479 kg] |
| 4WD Weight | 1,180 lbs [535 kg] |
| Wheelbase | 55.1 inches [139 cm] |
| Length | 100 inches [254 cm] |
| Width | 42.5 inches [107 cm] |
| 2WD Height (exhaust) | 70.7 inches [179 cm] |
| 4WD Height (exhaust) | 71.3 inches [181 cm] |
| Ground clearance | 10.8 inches [27 cm] |
| 2WD30.9 inches [78 cm] 4WD} Front tread | 28 inches [71 cm] |
| Rear tread | 35.8 to inches [90 to 0 cm] |
| KUBOTA B5200 HYDRAULICS | |
| Type | open center |
| Capacity | 3.2 gal [12.1 L] |
| Pressure | 1630 psi [112.4 bar] |
| Total flow | 4 gpm [15.1 lpm] |
| KUBOTA B5200 TIRES | |
| Ag front | 4.5-10 (2WD) |
| 5.00-10 (2WD) | |
| 5-12 (4WD) | |
| 6-12 (4WD) | |
| Ag rear | 7-16 |
| 8-16 | |
| Lawn/turf front | 18×9.50-9 (2WD) |
| 20.5×8.00-10 (4WD) | |
| Lawn/turf rear | 29×12.00-15 |
| KUBOTA B5200 CAPACITY | |
| Fuel | 3.8 gal [14.4 L] |
| Hydraulic system | 3.2 gal [12.1 L] |
| KUBOTA B5200 ELECTRICAL | |
| Charging system | alternator |
| Charging amps | 35* |
Kubota B5200 Attachments
| 51″ SNOW BLOWER | |
| Type | front-mount Kubota B2551 |
| dual-stage with hydraulic lift | |
| Clearing width | 51 inches [129 cm] |
| Clearing height | 14 inches [35 cm] |
| LOADER | |
| Loader type | Kubota B1630C |
| Height (to pin) | 67.7 inches [171 cm] |
| Clearance, dumped bucket | 51.5 inches [130 cm] |
| Dump reach | 20.25 inches [51 cm] |
| Dump angle | 46 |
| Reach at ground | 48.3 inches [122 cm] |
| Rollback angle | 28 |
| Breakout force (lift) | 780 lbs [353 kg] |
| Lift to full height (at pin) | 510 lbs [231 kg] |
| LOADER | |
| Loader type | Kubota B1640 |
| Height (to pin) | 69.2 inches [175 cm] |
| Clearance, dumped bucket | 53.7 inches [136 cm] |
| Dump reach | 19.7 inches [50 cm] |
| Dump angle | 42 |
| Reach at ground | 42.7 inches [108 cm] |
| Rollback angle | 22 |
| Breakout force (lift) | 970 lbs [439 kg] |
| Lift to full height (at pin) | 510 lbs [231 kg] |
| Bucket width | 42 inches [106 cm] |
| 48 inches [121 cm] | |
| 54 inches [137 cm] | |
| LOADER | |
| Loader type | Kubota B1640A |
| Height (to pin) | 69 inches [175 cm] |
| Clearance, dumped bucket | 53 inches [134 cm] |
| Dump reach | 19 inches [48 cm] |
| Dump angle | 42 |
| Reach at ground | 43 inches [109 cm] |
| Rollback angle | 22 |
| Breakout force (lift) | 970 lbs [439 kg] |
| Lift to full height (at pin) | 510 lbs [231 kg] |
| Bucket width | 42 inches [106 cm] |
| 48 inches [121 cm] | |
| 54 inches [137 cm] | |
Kubota B5200 Review Video
Related Post
- Kubota B6000
- Kubota B7200
- Kubota BX25D
- Kubota BX1500
- Kubota BX1870
- Kubota BX2230
- Kubota BX2680
- Kubota L175
- Kubota M6800
- Kubota M7060
Conclusion
Well, Kubota B5200 Compact Utility Tractor will be beneficial to get into work with to handle small- to medium-sized lawn. If you have something to ask related to this tractor, feel free to ask us through the comment section provided below. Thank you for visiting and kindly stay tuned for more contents like this.
