A utility tractor is certainly needed by everyone and the options are so many these days, including Kubota M6800 utility tractor. This product from Kubota is so complete, and it has everything that you wish for in a tractor. Read the information below, so you can understand more about the tractor, including its engine, attachments and more.
We will start the information about Kubota M6800 utility tractor from its engine. The engine used by this tractor is a powerful one produced on its own. It is a Kubota engine with diesel based, and it has the ability of producing 70.9 horsepower. It is around 52.9 kilo watts power, and the rate is around rpm 2600 to produce that amount of power.
Besides the 4-cylinder engine with the liquid-cooled technology, this Kubota M6800 utility tractor is also completed by 8 forward and reverse gears. The engine has the capacity of 3.3 liter, which is large and combined with other features on the tractor, including its 4×2 2WD chassis and power steering. It is safe to say the tractor is indeed capable in lifting 3310 lbs of weight.

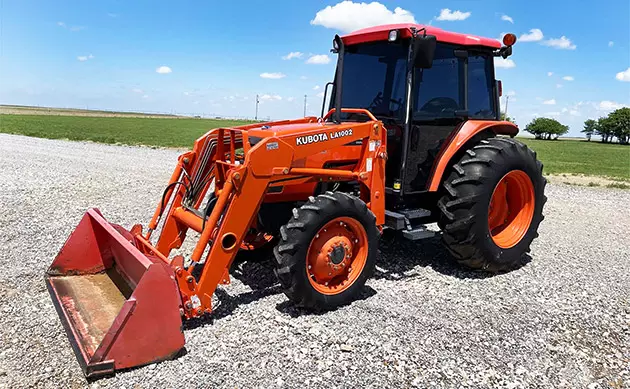

When it comes to the attachments, the attachments of Kubota M6800 utility tractor will not disappoint you at all. The attachments are quite complete, and these include some loaders as well. You will get Kubota LA1002 Loader, which is useful for maintaining the versatility of the tractor. Moreover, there is also Kubota LA1162 Loader that you can use for even heavier load and weight-lift purposes.
Surely enough, the tractor is amazing. Based on the information above, you can tell the tractor is one of the best products available these days. You should be able to find even more details about it, including its price, specs, serial numbers, and images on the information below. The information also contains some images of the tractor, so you can take a look at its details and design.
Kubota M6800 Price
- Kubota M6800 Original Price: $18,000 (1998)
- Kubota M6800 Serial Number: Not Available
Related Post
- Kubota Tractors Prices USA
- Kubota BX23S
- Kubota BX25
- Kubota G5200
- Kubota L2501
- Kubota B2601
- Kubota B2620
- Kubota B2650
- Kubota B3300SU
- Kubota B5200
Kubota M6800 Specification
| KUBOTA M6800 ENGINE | |
| Engine | Kubota diesel 4-cylinder liquid-cooled |
| Displacement | 202 ci 3.3 L |
| Bore/Stroke | 3.86×4.33 inches 98 x 110 mm |
| Power | 70.9 hp 52.9 kW |
| Air cleaner | dual dry element |
| Compression | 22.6:1 |
| Rated RPM | 2600 |
| Starter volts | 12 |
| Coolant capacity | 9 qts 8.5 L |
| KUBOTA M6800 TRACTOR HITCH | |
| Rear Type | II/I |
| Control | position control and top-link draft sensing |
| Rear lift (at 24″/610mm) | 3310 lbs 1501 kg * |
| Rear Arms | telescopic stabilizers and link ends |
| KUBOTA M6800 POWER | |
| Engine | 70.9 hp 52.9 kW |
| PTO (claimed) | 62 hp 46.2 kW |
| Drawbar (tested) | 57 hp 42.5 kW |
| PTO (tested) | 63.3 hp 47.2 kW |
| KUBOTA M6800 MECHANICAL | |
| Chassis | 4×2 2WD |
| 4×4 MFWD 4WD | |
| Steering | power |
| Cab | Two-post folding ROPS. Cab optional with air-conditioning. |
| Transmissions | 8-speed synchronized shuttle |
| 8-speed power shuttle | |
| KUBOTA M6800 TRANSMISSION | |
| Transmission | |
| Type | synchronized shuttle |
| Gears | 8 forward and reverse |
| Clutch | 274.3mm cerametallic dry disc |
| Four synchronized gears in two range with synchronized shuttle. | |
| Transmission | |
| Type | power shuttle |
| Gears | 8 forward and reverse |
| Clutch | hydraulic wet disc |
| Four synchronized gears in two range with hydraulic shuttle. | |
| KUBOTA M6800 HYDRAULICS | |
| Type | open center |
| Valves | 1 |
| Pump flow | 11 gpm 41.6 lpm |
| KUBOTA M6800 PTO | |
| Rear PTO | independent |
| Clutch | hydraulic wet disc |
| Rear RPM | 540 |
| Engine RPM | 540@2300 |
| KUBOTA M6800 DIMENSIONS | |
| ROPS Wheelbase | 80.7 inches 204 cm |
| Cab Wheelbase | 83.7 inches 212 cm |
| 2WD Length | 139 inches 353 cm |
| 4WD Length | 134.6 inches 341 cm |
| Width | 73.2 inches 185 cm |
| Height (ROPS) | 96.5 inches 245 cm |
| Height (cab) | 98.4 inches 249 cm |
| 2WD Front tread | 55.9 to 71.7 inches 141 to 182 cm |
| 4WD Front tread | 55.9 to 59.8 inches 141 to 151 cm |
| Rear tread | 55.9 to 67.7 inches 141 to 171 cm |
| KUBOTA M6800 WEIGHT | |
| 2WD ROPS Shipping | 5055 lbs 2292 kg |
| 4WD ROPS Shipping | 5185 lbs 2351 kg |
| 2WD Cab Shipping | 5579 lbs 2530 kg |
| 4WD Cab Shipping | 5712 lbs 2590 kg |
| 4WD ROPS Operating | 5375 lbs 2438 kg |
| Ballasted | 8580 lbs 3891 kg * |
| KUBOTA M6800 TIRES | |
| Ag rear | 7.50-16 |
| 9.5-24 (4WD) | |
| KUBOTA M6800 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| ROPS Charging amps | 45 |
| Cab Charging amps | 60 |
| Battery volts | 12 |
Kubota M6800 Attachments
| KUBOTA LA1002 LOADER | |
| Height (to pin) | 115.6 inches 293 cm |
| Clearance, dumped bucket | 89.2 inches 226 cm |
| Dump reach | 34.6 inches 87 cm |
| Dump angle | 39° |
| Rollback angle | 25° |
| Breakout force (lift) | 3330 lbs 1510 kg |
| Lift to full height (at pin) | 2579 lbs 1169 kg |
| Bucket width | 72 inches 182 cm |
| KUBOTA LA1162 LOADER | |
| Height (to pin) | 114 inches 289 cm |
| Clearance, dumped bucket | 87.2 inches 221 cm |
| Dump reach | 34.4 inches 87 cm |
| Dump angle | 45° |
| Reach at ground | 73.4 inches 186 cm |
| Rollback angle | 40° |
| Breakout force (at 500mm) | 4035 lbs 1830 kg |
| Lift to full height (at pin) | 2890 lbs 1310 kg |
| Lift to full height (at 500mm) | 2225 lbs 1009 kg |
| Raise time to height | 4.5 s |
