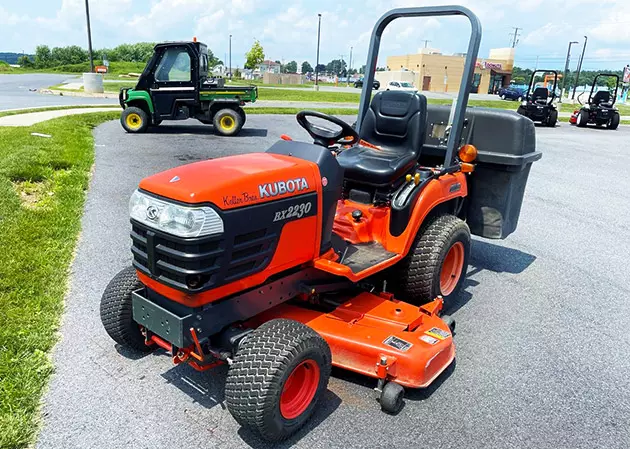

A sub-compact tractor, like Kubota BX2230 sub-compact utility tractor, is always needed by everyone who runs a farm, or basically needs a help of a tractor in daily basis. Surely, tractor is helpful but when it is too big or oversized, operating this machine could be quite tricky. This is why a sub-compact one is always the best option for many people around the country.
When it comes to a sub-compact tractor, Kubota BX2230 sub-compact utility tractor is certainly the best. Let’s start talking about its engine. The engine is coming from its own manufacturer. Yes, this tractor uses the diesel-based Kubota D902-E-BX engine. This engine is 3-cylinder type, which is already completed by liquid-cooled technology.
In addition, the engine’s capacity is not too big, approximately just under a liter (54.8 ci), but it is powerful enough to make this Kubota BX2230 sub-compact utility tractor produce great power. The engine is capable in powering the tractor to produce 22 horsepower or around 16.4 kilo Watts. It is done on the power rate of rpm 3200, which is quite impressive.
Operating Kubota BX2230 sub-compact utility tractor won’t be something so hard to do since there are so many helpful features embodied in this product. It has infinite gears applied for both forward gears and the reverse gears. The tractor also has power steering and wet disc brakes. These features surely help you to manage the tractor operation quite easily.
Speaking of its performance, the tractor, which has 4×4 MFWD 4WD chassis, is capable in lifting 680 lbs of pounds on its rear lift. It is like around 308 kilograms, proving that the Kubota BX2230 sub-compact utility tractor is indeed powerful and great to use.
Furthermore, the attachments that you will get when buying this tractor are two mower decks (in different sizes of 54 inch and 60 inch), as well as front-mount, a blade, snowblower, and many others. It will most likely help you to turn the tractor into something very useful.
For those who want to find out about the details of its specs, price, serial number, reviews and more, find out all of them below. You will find the information so helpful, especially when you want to get the tractor in the near future.
Kubota BX2230 Price
- Kubota BX2230 Original Price: $6,750.00 USD
- Kubota BX2230 Serial Number: Not Available
Related Post
- Kubota Tractors Prices USA
- Kubota BX23S
- Kubota BX25
- Kubota G5200
- Kubota L2501
- Kubota B2601
- Kubota B2620
- Kubota B2650
- Kubota B3300SU
- Kubota B5200
Kubota BX2230 Specification
| KUBOTA BX2230 ENGINE | |
| Engine | Kubota D902-E-BX diesel 3-cylinder liquid-cooled 54.8 ci [0.9 L] |
| Bore/Stroke | 2.83×2.90 inches [72 x 74 mm] |
| Power (gross) | 22 hp [16.4 kW] |
| Rated RPM | 3200 |
| Starter | electric |
| Starter volts | 12 |
| KUBOTA BX2230 CAPACITY | |
| Fuel | 5.5 gal [20.8 L] |
| KUBOTA BX2230 3 POINT HITCH | |
| Rear Type | I |
| Rear lift | 680 lbs [308 kg] |
| KUBOTA BX2230 POWER | |
| Engine (gross) | 22 hp [16.4 kW] |
| PTO (claimed) | 16.7 hp [12.5 kW] |
| KUBOTA BX2230 MECHANICAL | |
| Chassis | 4×4 MFWD 4WD |
| Steering | power |
| Brakes | wet disc |
| Cab | Two-post ROPS. Optional BX6730 hard-side weather cab with heater. |
| KUBOTA BX2230 TRANSMISSION | |
| Type | hydrostatic |
| Gears | infinite (2-range) forward and reverse |
| KUBOTA BX2230 HYDRAULICS | |
| Pump flow | 5.5 gpm [20.8 lpm] |
| KUBOTA BX2230 PTO | |
| Rear PTO | independent |
| Clutch | hydraulic |
| Rear RPM | 540 (1.375) |
| Engine RPM | 540@3068 |
| Mid PTO | independent |
| Mid RPM | 2500 |
| Engine RPM | 2500@3125 |
| KUBOTA BX2230 DIMENSIONS | |
| Weight | 1290 lbs [585 kg] |
| Wheelbase | 55.1 inches [139 cm] |
| Length | 77.8 inches [197 cm] |
| Width | 45.1 inches [114 cm] |
| Height (ROPS) | 70.9 inches [180 cm] |
| Ground clearance | 6.7 inches [17 cm] |
| Front tread | 35.8 inches [90 cm] |
| Rear tread | 32.2 inches [81 cm] |
| KUBOTA BX2230 TIRES | |
| Ag front | 18×8.50-8 |
| Ag rear | 26×12.00-12 |
| Lawn/turf front | 18×8.50-8 |
| Lawn/turf rear | 26×12.00-12 |
| KUBOTA BX2230 BATTERY | |
| Number | 1 |
| Volts | 12 |
| Group | 26R |
| KUBOTA BX2230 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
Kubota BX2230 Attachments
| 54″ MOWER DECK | |
| Type | mid-mount Kubota RCK54-22BX |
| 3-blade | |
| Cutting width | 54 inches [137 cm] |
| Weight | 227 lbs [102 kg] |
| Overall width | 66.5 inches [168 cm] |
| 56.5 inches [143 cm] (chute up) | |
| Cut height | 1 to 4 inch [2 to 10 cm] |
| 60″ MOWER DECK | |
| Type | mid-mount Kubota RCK60B22BX |
| 3-blade | |
| Cutting width | 60 inches [152 cm] |
| Weight | 265 lbs [120 kg] |
| Overall width | 72.6 inches [184 cm] |
| 63 inches [160 cm] (chute up) | |
| Cut height | 1 to 4 inch [2 to 10 cm] |
| BLADE | |
| Type | front-mount Kubota TG2754 |
| Width | 54 inches [137 cm] |
| Height | 20 inches [50 cm] |
| Lift height | 7.5 inches [19 cm] |
| Weight | 108 lbs [48 kg] |
| Type | front-mount Kubota BX2763A |
| Width | 60 inches [152 cm] |
| Height | 19.5 inches [49 cm] |
| Lift height | 8 inches [20 cm] |
| Weight | 215 lbs [97 kg] |
| 48.75″ SNOW BLOWER | |
| Type | front-mount Kubota BX2750B |
| Clearing width | 48.75 inches [123 cm] |
| Clearing height | 10.5 inches [26 cm] |
| Weight | 210 lbs [95 kg] |
| LOADER | |
| Loader type | Kubota LA211 |
| Height (to pin) | 70.8 inches [179 cm] |
| Clearance, dumped bucket | 51.2 inches [130 cm] |
| Dump reach | 29.9 inches [75 cm] |
| Dump angle | 45 |
| Rollback angle | 25 |
| Breakout force (lift) | 950 lbs [430 kg] |
| Lift to full height (at pin) | 460 lbs [208 kg] |
| Bucket width | 48 inches [121 cm] |
| Raise time to height | 2.9 s |
| Lowering time | 2.9 s |
Kubota BX2230 Review Video
Related Post
- Kubota B6000
- Kubota B7200
- Kubota BX25D
- Kubota BX1500
- Kubota BX1870
- Kubota BX2680
- Kubota L175
- Kubota M6800
- Kubota M7060
Conclusion
In conclusion, this tractor is surely the great product. You will find more information about Kubota BX2230 sub-compact utility tractor or other tractor here. Thank you for reading and you can fill the comment box if you want to say something about this post.
