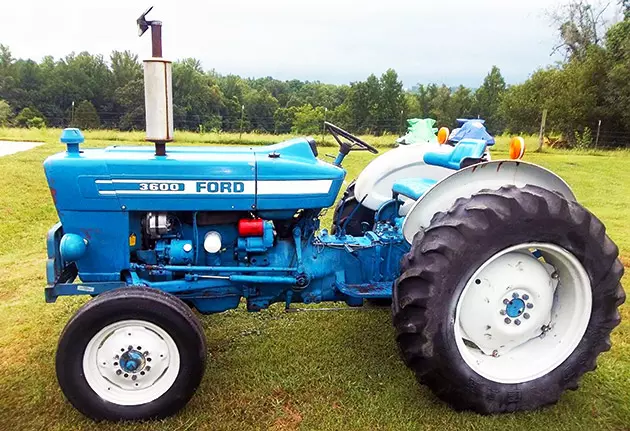

Ford 3600 Utility Tractor – Ford 3600 Utility Tractor is a farming equipment that features a 3-cylinder engine from Ford designed with a liquid-cooling mechanism. The diesel engine is capable to operate at a maximum speed rating of 2000 RPM, which will push the vehicle up to 48 hp or about 35.8 kW or power. There is also a variant of this vehicle that is equipped with a gasoline engine. Both engine types are designed with a displacement capacity of around 2.9L.
The chassis used on the Ford 3600 Utility Tractor is the durable 4×2 2WD that uses a power steering feature for a more comfortable operating method. Meanwhile, the braking system uses differential mechanical expanding shoes. On the aspect of cab design, the vehicle also features an open operator station. A canopy can also be used with the availability of the two-post ROPS feature. Meanwhile, the transmission system has either 6-speed or 8-speed for different vehicle variants.
The fuel tank of the Ford 3600 Utility Tractor is capable to store up to 49.2 L of diesel or gasoline fuel. The capacity can be translated to about 13 US Gallons. Meanwhile, the hydraulic system requires the usage of about 23.3 L of hydraulic fluid. The hydraulics also allow the usage of various attachments, such as the Ford 730 Loader and 772A Loader. With the attachments, you can extend the usage of the vehicle to other farming activities.
Now that we have talked about the basic specifications of the Ford 3600 Utility Tractor, we will also tell you more about the vehicle including the complete features, user reviews, along the current price of the tractor. More aspects of this vehicle will be needed to be learned if you want to get the unit to do your farming activities. We hope that the information can be of use to you.
Ford Motor Company is an international automobile maker that has its main office in the city of Dearborn, Michigan. Henry Ford established the company in 1903 and it has since become one of the most productive vehicle manufacturers in the world. The company is now managing more than 186,000 employees around the world and marked an annual revenue of more than $127 billion.
Ford 3600 Tractor Price
- Original Price: $7,200 (1981)
Related Post
Ford 3600 Tractor Serial Numbers
1975 | C450700 |
1976 | C490300 |
1977 | C527300 |
1978 | C560500 |
1979 | C595800 |
1980 | C635700 |
1981 | C660700 |
Ford 3600 Specification
FORD 3600 DIESEL ENGINE | |
Engine | Ford diesel 3-cylinder liquid-cooled |
Displacement | 175 ci 2.9 L |
Bore/Stroke | 4.20×4.20 inches 107 x 107 mm |
Power (gross) | 48 hp 35.8 kW |
Air cleaner | oil bath |
Pre-heating | ether injection* |
coolant heater* | |
Compression | 16.3:1 |
Rated RPM | 2000 |
Torque | 135 lb-ft 183.1 Nm |
Torque RPM | 1400 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 7 qts 6.6 L |
Coolant capacity | 11 qts 10.4 L |
FORD 3600 GASOLINE ENGINE | |
ENGINE | Ford gasoline 3-cylinder liquid-cooled |
Displacement | 175 ci 2.9 L |
Bore/Stroke | 4.20×4.20 inches 107 x 107 mm |
Power (gross) | 46 hp 34.3 kW |
Air cleaner | dry |
Compression | 7.75:1 |
Rated RPM | 2000 |
Torque | 135 lb-ft 183.1 Nm |
Torque RPM | 1100 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 7 qts 6.6 L |
Coolant capacity | 11 qts 10.4 L |
FORD 3600 TRACTOR HITCH | |
Rear Type | I |
Control | top-link draft sensing |
Rear lift | 1940 lbs 879 kg |
FORD 3600 TRANSMISSION | |
Transmission | |
Type | gear |
Gears | 6 forward and 2 reverse |
Oil capacity | 13.8 qts 13.1 L |
Transmission | |
Transmission | Dual-Range |
Gears | 8 forward and 2 reverse |
Clutch | dry disc |
Oil capacity | 13.8 qts 13.1 L |
FORD 3600 CAPACITY | |
Fuel | 13 gal 49.2 L |
Hydraulic system | 6.15 gal 23.3 L |
FORD 3600 HYDRAULICS | |
Capacity | 6.15 gal 23.3 L |
Pressure | 2100 psi 144.8 bar |
Pump flow | 8.5 gpm 32.2 lpm |
FORD 3600 PTO | |
Rear PTO | transmission |
live* | |
Rear RPM | 540 (1.375) |
FORD 3600 POWER | |
Engine (gross) | 48 hp 35.8 kW |
Engine (net) | 45 hp 33.6 kW |
Drawbar (claimed) | 34 hp 25.4 kW |
PTO (claimed) | 40 hp 29.8 kW |
Drawbar (tested) | 34.35 hp 25.6 kW |
PTO (tested) | 40.62 hp 30.3 kW |
FORD 3600 MECHANICAL | |
Chassis | 4×2 2WD |
Steering | power |
Brakes | differential mechanical expanding shoe |
Cab | Open operator station. Two-post ROPS optional with available canopy. |
Transmissions | 6-speed gear |
8-speed | |
FORD 3600 DIMENSIONS | |
Wheelbase | 75.8 inches 192 cm |
Length | 127 inches 322 cm |
Width | 64 inches 162 cm * |
Height (hood) | 54 inches 137 cm |
Clearance (front axle) | 21.5 inches 54 cm |
Clearance (rear axle) | 13.3 inches 33 cm |
Front tread | 52 to 80 inches 132 to 203 cm |
Rear tread | 52 to 76 inches 132 to 193 cm |
Rear tread | 52 to 80 inches 132 to 203 cm * |
FORD 3600 ELECTRICAL | |
Ground | negative |
Charging system | alternator |
Charging amps | 32 |
51* | |
Battery volts | 12 |
Gas Battery AH | 77 |
Diesel Battery AH | 128 |
FORD 3600 WEIGHT | |
Shipping | 3846 lbs 1744 kg |
Operating | 4415 lbs 2002 kg (6-speed) |
5590 lbs 2535 kg (8-speed, cab) | |
Ballasted | 6900 lbs 3129 kg |
FORD 3600 TYRES | |
Ag front | 6.00-16 |
Ag rear | 12.4-28 |
Ford 3600 Attachments
FORD 730 LOADER | |
Loader weight | 985 lbs 446 kg |
Clearance, dumped bucket | 103 inches 261 cm |
Dump reach | 19.5 inches 49 cm |
Dump angle | 42° |
Reach at ground | 62.8 inches 159 cm |
Rollback angle | 21° |
Breakout force (lift) | 3550 lbs 1610 kg |
Lift to full height (at pin) | 2040 lbs 925 kg |
Bucket width | 61.5 inches 156 cm |
Raise time to height | 3.6 s |
Lowering time | 1.8 s |
FORD 772A LOADER | |
Loader weight | 930 lbs 421 kg |
Height (to pin) | 124 inches 314 cm |
Clearance, dumped bucket | 98.5 inches 250 cm |
Dump reach | 32.3 inches 82 cm |
Dump angle | 33° |
Reach at ground | 75 inches 190 cm |
Rollback angle | 9° |
Breakout force (lift) | 3800 lbs 1723 kg |
Lift to full height (at pin) | 2460 lbs 1115 kg |
Bucket width | 48 inches 121 cm |
Raise time to height | 12 s |
Lowering time | 7 s |
Rollback time | 3 s |
Ford 3600 Tractor Review Video
Related Post
Conclusion
That was all that we can say about the Ford 3600 Utility Tractor. Make sure that you learn more about each specification of this vehicle before making a decision to get the unit. We hope that the vehicle can help you in doing your farming activities.
