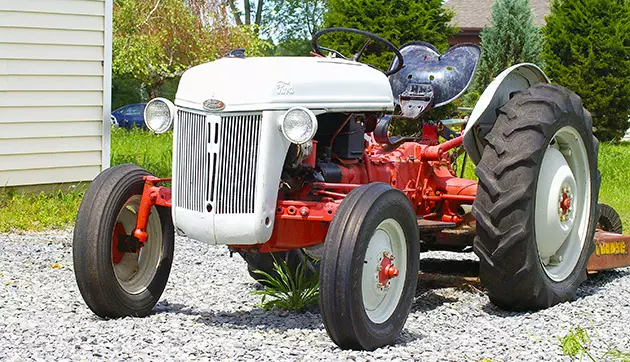

Ford 800 Utility Tractor – Ford 800 Utility Tractor is an outdoor equipment featuring a 4-cylinder engine from Ford with the EAF type. The engine burns gasoline to produce power and is also equipped with a liquid-cooling mechanism. With a maximum speed rating of around 2200 RPM, the engine has the capability to produce around 49hp or about 29.8kW. The EAF engine itself has been designed with vertical inline for the operation.
Produced in Highland Park, Michigan, Ford 800 Utility Tractor has three variants, including 820, 850, and 860. The 820 variant has no 3-point hitch for attachment or any hydraulic system. Meanwhile, the 850 variant is equipped with a PTO transmission system. And the 860 variant has a live PTO mechanism.
The Ford 800 Utility Tractor has two types of engines that can burn either gasoline or LP gas. But, both engines are the same type which is the 2.8 L 4-cylinder engine from Ford. The displacement capacity is about 2.8 L and uses the oil bath system for the air cleaner. The engine also uses a 6 V battery for the ignition system with the firing sequence of 1-2-4-3. To maintain a low operating temperature inside the engine, the specifications called for at least 14.2 L of coolant liquid to be used for the cooling system.
The chassis for the Ford 800 Utility Tractor is the heavy-duty 4×2 2WD with a manual steering option. Owners can also choose to get power assist feature for the vehicle. The fuel capacity of the engine is around 14 gallons or about 53 L. The cab uses an open operator station for ease of use and comfort of the operator while the transmission system has a 5-speed unsynchronized gear system. During the tests, the vehicle can produce up to 49 hp.
Ford Motor Company is an international manufacturer of automobiles that has its main office in the city of Dearborn, Michigan. Established on June 16, 1903, the company has developed into one of the biggest companies that produce commercial vehicles and other luxury cars. They also have stakes on other popular car manufacturers around the world. As of 2020, the company manages more than 180,000 employees under its name with total revenue of more than US$ 127 billion.
Ford 800 Price
- Ford 800 Original Price: $2,273 (1957)
Related Post
Ford 800 Serial Number
| 1954 | 1 |
| 1955 | 10615 |
| 1956 | 77271 |
| 1957 | 116368 |
Ford 800 Specification
| FORD 800 ENGINE | |
| Engine | Ford EAF gasoline 4-cylinder 8-valve liquid-cooled vertical inline |
| Displacement | 172 ci 2.8 L |
| Bore/Stroke | 3.90×3.60 inches 99 x 91 mm |
| Air cleaner | oil bath |
| Compression | 6.75:1 |
| Rated RPM | 2200 |
| Firing order | 1-2-4-3 |
| Starter volts | 6 |
| Coolant capacity | 15 qts 14.2 L |
| FORD 800 CAPACITY | |
| Fuel | 14 gal 53.0 L |
| Hydraulic system | 2 gal 7.6 L |
| Rear axle | 11 qts 10.4 L |
| FORD 800 TRACTOR HITCH | |
| Rear Type | I |
| Rear lift | 1,250 lbs 567 kg |
| FORD 800 POWER | |
| Belt (claimed) | 40 hp 29.8 kW |
| Plows | 3* |
| Drawbar (tested) | 35.16 hp 26.2 kW |
| Belt (tested) | 39.55 hp 29.5 kW |
| FORD 800 MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | manual |
| power assist optional | |
| Brakes | differential mechanical expanding shoe |
| Cab | Open operator station. |
| Transmission | 5-speed unsynchronized gear |
| FORD 800 TRANSMISSION | |
| Type | unsynchronized gear |
| Gears | 5 forward and 1 reverse |
| Clutch | dry disc |
| Oil capacity | 8 qts 7.6 L |
| Oil type | SAE 80 Mild EP |
| FORD 800 HYDRAULICS | |
| Capacity | 2 gal 7.6 L |
| FORD 800 PTO | |
| Rear PTO | transmission |
| Rear RPM | 540 (1.125) |
| FORD 800 DIMENSIONS | |
| Wheelbase | 75.18 inches 190 cm |
| Length | 121.8 inches 309 cm |
| Width | 64.75 inches 164 cm |
| Height | 59.3 inches 150 cm |
| Operating weight | 3,400 lbs 1542 kg |
| Ballasted weight | 6,700 lbs 3039 kg |
| Ground clearance | 21 inches 53 cm |
| Front tread | 52 to 76 inches 132 to 193 cm |
| Rear tread | 52 to 76 inches 132 to 193 cm |
| FORD 800 TIRES | |
| Ag front | 6×16 |
| Ag rear | 12×28 |
| FORD 800 ELECTRICAL | |
| Ground | positive |
| Charging system | generator |
| Charging amps | 20 |
Ford 800 Review Video
Related Post
Conclusion
We do hope that this guide can be of use for your needs. Remember, the specifications of the Ford 800 Utility Tractor are important to understand so you can compare this vehicle with other tractors that are in the same range.
