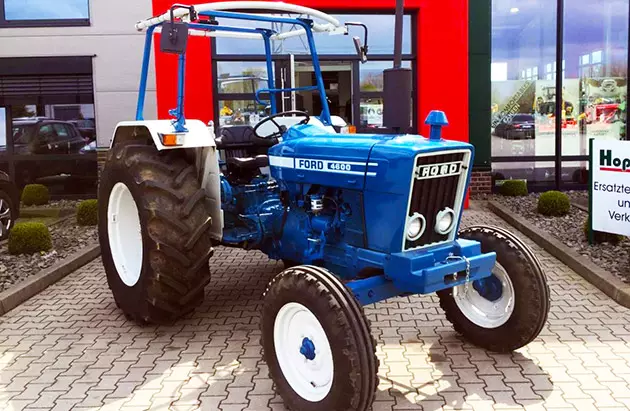

Ford 4600 Utility Tractor was a unit model with open operator station cabin that was produced in United States from 1975 to 1981. It was included in the lineup of the Ford X600 series, which production was ceased in 1982 when being replaced by the Ford 10 series.
In the 20th century, Ford was a prominent farm factor manufacturer. Even though the brand of Fordson has existed for 20 years in prior, it is not until 2939 that the brand put out tractors by introducing the 9N model. In 1964, the Ford brand of United States and the Fordson brand of European were joined, in order to create and manufacture worldwide tractor line.
In 1985, the Ford bought New Holland brand and created the line of Ford-New Holland. However, in 1990, the farm equipment group of the Ford was purchase by Fiat, ending the use of Ford brand on the products.
Ford 4600 Utility Tractor is a tractor model that has features of compact utility tractor features, but has more power, higher pressure and hydraulic flow, and larger body frame. It is more capable in handling task, more fuel-efficient, and gives more control upon the output.
The Ford 4600 Utility Tractor weighs at 4655 lbs. It has the dimensions size of 137.4 inches (3490 mm) for the length and 67.5 inches (1710 mm) for the overall width. The height of its hood is measured at 57.5 inches (1460 mm), while the height of the cab is measured at 102.6 inches (2600 mm). It has the ground clearance space of 17.3 inches (430 mm).
This tractor model is equipped by 3.3 L (201 cubic inch) 3-cylinder engine. It is capable to put out 56.5 horsepower (42.1 kW) @ 2200 rpm and 173 pounds feet (234.6 Nm) torque @ 1100. The fuel tank capacity is 60.6 L (16 gallons).
Ford 4600 Utility Tractor also features a gearbox set of 8 F and 2 R gears. It has an oil capacity of 12.0 L (12.7 gts), power steering feature, as well as differential mechanical wet disc brakes.
If you are interested in knowing more about the Ford 4600 Utility Tractor, you may learn a lot of information about its features, specs, serial numbers, attachments, price, etc. in the following.
Ford 4600 Tractor Price
- Original Price: $9,700 (1981)
Related Post
Ford 4600 Tractor Serial Numbers
| 1975 | C450700 |
| 1976 | C490300 |
| 1977 | C527300 |
| 1978 | C560500 |
| 1979 | C595800 |
| 1980 | C635700 |
| 1981 | C660700 |
Ford 4600 Specification
| FORD 4600 DIESEL ENGINE | |
| Engine | Ford diesel 3-cylinder liquid-cooled 201 ci [3.3 L] |
| Bore/Stroke | 4.4094×4.4094 inches [112 x 112 mm] |
| Power (gross) | 59.5 hp [44.4 kW] |
| Air cleaner | dry |
| Compression | 16.3:1 |
| Rated RPM | 2200 |
| Torque | 157 lb-ft [212.9 Nm] |
| Torque RPM | 1200 |
| Starter volts | 12 |
| Oil capacity | 7 qts [6.6 L] |
| Coolant capacity | 11 qts [10.4 L] |
| FORD 4600 GASOLINE ENGINE | |
| Engine | Ford gasoline 3-cylinder liquid-cooled 201 ci [3.3 L] |
| Bore/Stroke | 4.4×4.4 inches [112 x 112 mm] |
| Power (gross) | 60 hp [44.7 kW] |
| Air cleaner | dry |
| Compression | 7.75:1 |
| Rated RPM | 2200 |
| Torque | 173 lb-ft [234.6 Nm] |
| Torque RPM | 1100 |
| Starter volts | 12 |
| Oil capacity | 7 qts [6.6 L] |
| Coolant capacity | 11 qts [10.4 L] |
| FORD 4600 CAPACITY | |
| Fuel | 16 gal [60.6 L] |
| FORD 4600 POWER | |
| Engine (gross) | 60 hp [44.7 kW] |
| Engine (net) | 56.5 hp [42.1 kW] |
| PTO (claimed) | 52 hp [38.8 kW] |
| Drawbar (tested) | 44.81 hp [33.4 kW] |
| PTO (tested) | 52.44 hp [39.1 kW] |
| FORD 4600 TRANSMISSION | |
| Gears | 8 forward and 2 reverse |
| Clutch | 279mm dry disc |
| Oil capacity | 12.7 qts [12.0 L] |
| FORD 4600 HYDRAULICS | |
| Pump flow | 8.5 gpm [32.2 lpm] |
| FORD 4600 3 POINT HITCH | |
| Rear Type | I |
| Rear lift | 3080 lbs [1397 kg] |
| FORD 4600 PTO | |
| Rear PTO | independent |
| Rear RPM | 540 |
| Engine RPM | 540@1800 |
| FORD 4600 MECHANICAL | |
| Chassis | 4×2 2WD |
| Differential lock | mechanical rear* |
| Steering | power |
| Brakes | differential mechanical wet disc |
| Cab | Open operator station. Cab optional. |
| FORD 4600 DIMENSIONS | |
| Weight (shipping) | 4480 lbs [2032 kg] |
| Weight (operating) | 5880 lbs [2667 kg] (diesel cab) |
| Weight (ballasted) | 8220 lbs [3728 kg] |
| Wheelbase | 84.5 inches [214 cm] |
| Length | 137.5 inches [349 cm] |
| Width | 67.5 inches [171 cm] * |
| Height (hood) | 57.5 inches [146 cm] |
| Height (cab) | 102.6 inches [260 cm] |
| Ground clearance | 17.3 inches [43 cm] |
| Front tread | 52 to 80 inches [132 to 203 cm] |
| Rear tread | 56 to 80 inches [142 to 203 cm] 56 to 90 inches* [142 to 228 cm] ((With power-adjust rear wheels.)) |
| FORD 4600 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 32 |
| 51* | |
| FORD 4600 TYRES | |
| Ag front | 7.50-16 |
| Ag rear | 16.9-30 |
Ford 4600 Attachments
| LOADER | |
| Loader type | Ford 772A |
| Weight | 930 lbs [421 kg] |
| Height (to pin) | 124 inches [314 cm] |
| Clearance, dumped bucket | 98.5 inches [250 cm] |
| Dump reach | 32.3 inches [82 cm] |
| Dump angle | 33 |
| Reach at ground | 75 inches [190 cm] |
| Rollback angle | 9 |
| Breakout force (lift) | 3800 lbs [1723 kg] |
| Lift to full height (at pin) | 2460 lbs [1115 kg] |
| Bucket width | 48 inches [121 cm] |
| Raise time to height | 12 s |
| Lowering time | 7 s |
| Rollback time | 3 s |
| LOADER | |
| Loader type | Ford 772QT |
| Weight | 1261 lbs [571 kg] |
| Height (to pin) | 128 inches [325 cm] |
| Clearance, dumped bucket | 105 inches [266 cm] |
| Dump reach | 43 inches [109 cm] |
| Dump angle | 45 |
| Reach at ground | 76 inches [193 cm] |
| Rollback angle | 8 |
| Breakout force (lift) | 3900 lbs [1769 kg] |
| Lift to full height (at pin) | 2500 lbs [1134 kg] |
| Bucket width | 48 inches [121 cm] |
| Raise time to height | 8.5 s |
| Lowering time | 5 s |
| Rollback time | 3 s |
Ford 4600 Tractor Review Video
Related Post
Conclusion
During its time, Ford 4600 Utility Tractor was one of the most capable, durable, and best featured machines. With reasonably efficient fuel use, PTO, wet brakes, and good hydraulic, it can be a good option to choose even in these days.
