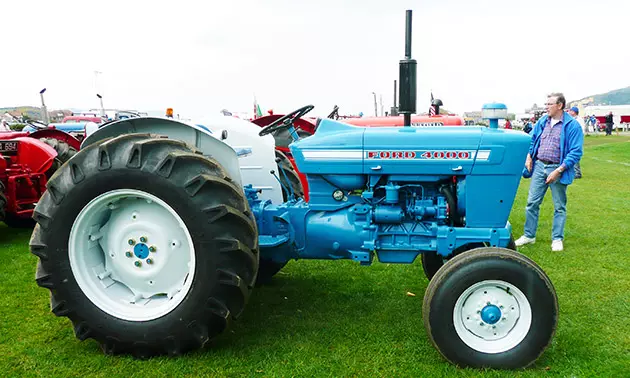

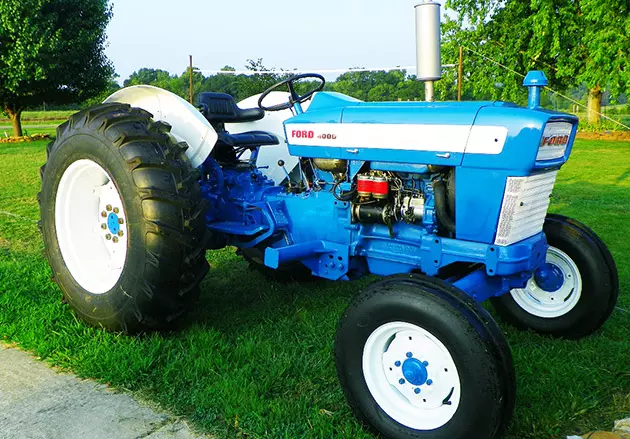

Ford 4000 Tractor – The Ford 4000 Utility Tractor is a utility tractor that features a Ford diesel engine with a liquid-cooling mechanism. The design of the engine uses the 3-cylinder mechanism and it can deliver up to 55 hp, which can be translated to a wonderful 41 kW of pure power.
The driver will be able to see the gear selector on the left side of the Ford 4000 Utility Tractor. The gear selector has a four-speed mechanism and drivers can choose from a range of low to high using the select lever located on the right side of the vehicle. Be informed that the tractor will need to be completely stopped before the driver can shift the gear from low to high.
Aftermarket attachments that can be used on the Ford 4000 Utility Tractor include the Ford 771 and 772 Loaders. This type of loader is helpful when you need to get something from the field to get on the vehicles and other farm equipment. The tractor and the attachments are also made with high-quality material to ensure the long life of this equipment.
Aside from those features, the 3-cylinder diesel engine also has a 4×2 2WD chassis. The brake uses the mechanical wet disc design and the gear selector has the capability of eight forward and two reverse gears. All valid models from this series will feature standard equipment, including oil-pressure warning lights, tachometer, water temperature gauge, headlights, and taillights.
From this article, you will get complete information about the Ford 4000 Utility Tractor price, available spare parts, key features, reviews, specifications, and images. Hopefully, all those aspects will make you understand the benefits of using this utility tractor for every type of farming needs that you have.
Ford is a manufacturer of automotive and other types of vehicles for international customers. This American company was founded on June 16, 1903. Their current main office is located in Dearborn, Michigan. As one of the biggest automakers in the world, the company doesn’t only produce customer’s automobiles, but also luxury and commercial vehicles, including utility tractors.
Ford 4000 Tractor Price
- Ford 4000 Original Price: $3,500 (1975)
Related Post
Ford 4000 Serial Numbers
| 1965 | C100000 |
| 1966 | C124200 |
| 1967 | C161300 |
| 1968 | C190200 |
| 1969 | C226000 |
| 1970 | C257600 |
| 1971 | C292100 |
| 1972 | C327200 |
| 1973 | C367300 |
| 1974 | C405200 |
| 1975 | C450700 |
Ford 4000 Specification
| FORD 4000 ENGINE | |
| Engine | Forddiesel3-cylinder liquid-cooled |
| Displacement | 201 ci 3.3 L |
| Bore/Stroke | 4.40×4.40 inches 112 x 112 mm |
| Compression | 16.5:1 |
| Rated RPM | 2200 |
| Firing order | 1-2-3 |
| Starter volts | 12 |
| Coolant capacity | 14 qts 13.2 L |
| Intake valve clearance | 0.015 inches 0.381 mm * |
| Exhaust valve clearance | 0.018 inches 0.457 mm * |
| FORD 4000 POWER | |
| PTO (claimed) | 55 hp 41.0 kW |
| Plows | 4 |
| Drawbar (tested) | 47.57 hp 35.5 kW |
| PTO (tested) | 52.65 hp 39.3 kW |
| FORD 4000 CAPACITY | |
| Fuel | 16 gal 60.6 L |
| Hydraulic system | 8.4 gal 31.8 L (transmission PTO) |
| 8.1 gal 30.7 L (independent PTO) | |
| FORD 4000 PTO | |
| Rear PTO | transmission |
| independent* | |
| Rear RPM | 540 |
| 1000 | |
| Engine RPM | 540@1800 1000@1950 |
| FORD 4000 HYDRAULICS | |
| Type | open center |
| Capacity | 8.4 gal 31.8 L (transmission PTO) |
| 8.1 gal 30.7 L (independent PTO) | |
| Pressure | 2500 psi 172.4 bar |
| Pump flow | 5.4 gpm 20.4 lpm |
| Steering flow | 4.5 gpm 17.0 lpm |
| Steering press. | 800 psi 55.2 bar |
| FORD 4000 MECHANICAL | |
| Chassis | 4×2 2WD |
| Final drives | inboard planetary |
| Differential lock | mechanical rear* |
| Steering | manual |
| hydraulic power* | |
| Brakes | mechanical wet disc |
| Cab | Open operator station. |
| Transmissions | 8-speed |
| 10-speed | |
| FORD 4000 TRANSMISSION | |
| Transmission | Dual Range |
| Gears | 8 forward and 2 reverse |
| Clutch | dry disc |
| Oil capacity | 13.2 qts 12.5 L |
| 17 qts 16.1 L (independent PTO) | |
| FORD 4000 DIMENSIONS | |
| Wheelbase | 84.5 inches 214 cm |
| Length | 137 inches 347 cm |
| Width | 67.5 inches 171 cm |
| Operating weight | 4,885 lbs 2215 kg |
| Ballasted weight | 8,215 lbs 3726 kg |
| Ground clearance | 17.25 inches 43 cm |
| Rear tread | 52 to 80 inches 132 to 203 cm |
| FORD 4000 HEIGHT | |
| Steering wheel | 63 inches 160 cm |
| Hood | 57.5 inches 146 cm |
| Exhaust | 84.75 inches 215 cm |
| FORD 4000 TIRES | |
| Ag front | 6.00-16 |
| Ag rear | 12.4-38 |
| Ag front | 7.50-16 |
| Ag rear | 13.6-38 |
| 14.9-30 | |
| 16.9-26 | |
| 16.9-30 | |
| 18.4-26 | |
| FORD 4000 ELECTRICAL | |
| Ground | negative |
| Charging system | generator |
| Charging amps | 22 |
| Battery volts | 12 |
| Battery AH | 80 (gas) |
| 128 (diesel) | |
Ford 4000 Tractor Attachments
| FORD 771 LOADER | |
| Loader weight | 815 lbs 369 kg |
| Height (to pin) | 97 inches 246 cm |
| Clearance, dumped bucket | 78 inches 198 cm |
| Dump reach | 33 inches 83 cm |
| Breakout force (lift) | 2700 lbs 1224 kg |
| Lift to full height (at pin) | 1800 lbs 816 kg |
| Bucket width | 60 inches 152 cm |
| FORD 772 LOADER | |
| Loader weight | 1054 lbs 478 kg |
| Height (to pin) | 100 inches 254 cm |
| Clearance, dumped bucket | 80 inches 203 cm |
| Dump reach | 40 inches 101 cm |
| Breakout force (lift) | 4000 lbs 1814 kg |
| Lift to full height (at pin) | 2500 lbs 1134 kg |
| Bucket width | 60 inches 152 cm |
Ford 4000 Review Video
Related Post
Conclusion
Hopefully, this information regarding the Ford 4000 Utility Tractor can help you understand every aspect of the tractor. Remember, the information will include the price, specifications, review, and key features about the tractor to help you make a purchase decision to help your farming needs. We can also clear out your confusion about this tractor by filling out the comment box below.
