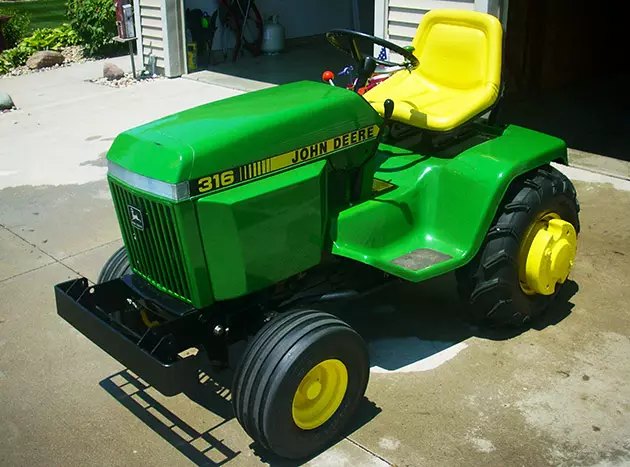

John Deere 316 garden tractor was a part of the company’s 300 series. It is a two-wheel drive (2WD) unit that was manufactured from 1984 to 1992 in Wisconsin, United States. The early version of the 316 used Onan B43E engine, while the later version used Onan P218G engine.
John Deere 316 garden tractor was a subsided version of the highly popular the 318 tractors, it was even marketed as the ‘lighter’ or ‘smaller’ version of it. Both were equipped with similar engine, but the 316 didn’t have power steering feature and only had 1 hydraulics spool. The early productions came with 16 horsepower output, but later they were upgraded to 18 horsepower output, which was a match with the John Deere 318.
The dimensions of John Deere 316 garden tractor are measured at 69.5 inches (176 cm) for the length and 43.3 inches (109 cm) for the width. In addition, the width may increase slightly with mower deck attachment added.
As mentioned before, there were two different versions of the 316, depending on the engine. The Onan B43E, that was used earlier, is a 0.7 L (43.3 cubic inch or 710 cm2) 2-cylinder engine, which has cylinder bore of 3.25 inches (82.55 mm) and piston stroke of 2.6 inches (66 mm). This engine yields 16 horsepower (11.9 kW or 16.2 PS) of output power @ 3600, and the compression ratio is rated at 6.2:1.
Meanwhile, the Onan P218G engine was used on the later version. It is a 0.8 L (47.7 cubic inch or 782 cm2) 2-cylinder engine that has cylinder bore of 3.25 inches (82.55 mm) and piston stroke of 2.87 inches (73 mm). This engine generates 18 horsepower (13.4 kW or 18.2 PS) of output power @ 3600, and the compression ratio is rated at 7.0:1. Both have fuel tank capacity of 4.5 gallons (17 liters or 3.7 imperial gallons), manual steering, and OOS platform.
There are several attachment types suitable for the John Deere 316 garden tractor. First is the 38 inches (960 mm) mid-mounted mower deck with two blades and hydraulic lift. Second is the 46 inches (1160 mm) mid-mounted mower deck with three blades and hydraulic lift. Third is the 50 inches (1270 mm) mid-mounted mower deck with three blades and hydraulic lift.
Read below to learn more about the John Deere 316 garden tractor’s features, specs, price, serial numbers, etc.
John Deere 316 Price
- John Deere 316 Original Price: $1,200 (1978)
Related Post
- John Deere 210
- John Deere 314
- John Deere 3032E
- John Deere D125
- John Deere L111
- John Deere LA130
- John Deere LT133
- John Deere LT155
- John Deere LT166
- John Deere LX277
John Deere 316 Serial Numbers
| 1984 | M00316X285001 |
| 1985 | M00316X315001 |
| 1986 | M00316X360001 |
| 1987 | M00316X420001 |
| 1988 | M00316X475001 |
| 1989 | M00316X595001 |
| 1990 | M00316X010001 |
| 1991 | M00316X100001 |
| 1992 | M00316X110001 |
| Final | M00316X120000 |
John Deere 316 Specification
| JOHN DEERE 316 ENGINE | |
| Displacement | 709 cc 43.3 ci |
| Bore/Stroke | 3.25×2.62 inches 83 x 67 mm |
| Power | 16 hp 11.9 kW |
| Air cleaner | foam and paper |
| Rated RPM | 3600 |
| Starter volts | 12 |
| Oil capacity | 1.7 qts 1.6 L |
| JOHN DEERE 316 TRANSMISSION | |
| Transmission | Sundstrand Series 15 Model 90 |
| Type | hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 6.5 qts 6.2 L |
| JOHN DEERE 316 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 15 |
| JOHN DEERE 316 MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | manual |
| Brakes | shoe |
| Cab | Open operator station. |
| Transmission | hydrostatic |
| JOHN DEERE 316 DIMENSIONS | |
| Wheelbase | 46 inches 116 cm |
| Length | 69.5 inches 176 cm |
| Width | 43.3 inches 109 cm |
| Height | 44.5 inches 113 cm |
| Weight | 822 lbs 372 kg |
| Shipping | 780 lbs 353 kg |
| JOHN DEERE 316 PTO | |
| Front PTO | independent |
| Clutch | electric |
John Deere 316 Attachments
| 38″ MOWER DECK | |
| Type | mid-mount John Deere BM16600 |
| 2-blade with hydraulic lift | |
| Cutting width | 38 inches 96 cm |
| Belt | John Deere M89090 (primary -SN555000) |
| John Deere M71729 (primary SN555001+) | |
| John Deere M82538 (secondary) | |
| Weight | 100 lbs 45 kg |
| Overall width | 49.7 inches 126 cm |
| Cut height | 1 to 4 inch 2 to 10 cm |
| 46″ MOWER DECK | |
| Type | mid-mount John Deere M00595 |
| 3-blade with hydraulic lift | |
| Cutting width | 46 inches 116 cm |
| Belt | John Deere M82718 (primary) |
| John Deere M41668 (secondary) | |
| Weight | 116 lbs 52 kg |
| Overall width | 57 inches 144 cm |
| Cut height | 1.5 to 5 inch 3 to 12 cm |
| 50″ MOWER DECK | |
| Type | mid-mount John Deere BM16377 |
| 3-blade with hydraulic lift | |
| Cutting width | 50 inches 127 cm |
| Belt | John Deere M82718 (primary) |
| John Deere M41668 (secondary) | |
| Weight | 186 lbs 84 kg |
| Overall width | 68 inches 172 cm |
| Cut height | 1.5 to 4 inch 3 to 10 cm |
John Deere 316 Reviews Video
Related Post
- John Deere LX280
- John Deere 212
- John Deere 285
- John Deere 300
- John Deere 325
- John Deere 420
- John Deere 455
- John Deere 650
- John Deere 790
Conclusion
Despite the slight difference in the output power, the John Deere 316 garden tractor comes just as powerful as the 318. If you’re looking for more affordable version, you can opt for this version instead.
