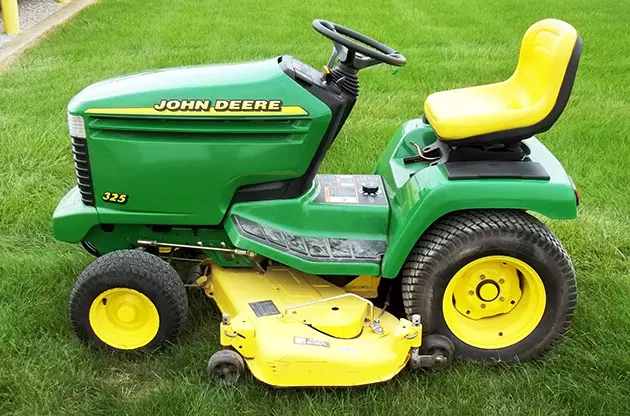

John Deere 325 garden tractor is a two-wheel drive (2WD) unit and was launched as a part of the manufacturer’s 300 series. It was produced in 1995 to 2001 in Wisconsin, United States, until it was replaced by the JD GX325 model. There were two engine versions used for this model: the Kawasaki FC540V engine on the earlier version and the Kawasaki FH531V engine on the later version after the serial number 0700001.
The Kawasaki FC540V is a 0.5 L (535 ml or 32.65 cubic inch) 1-cylinder, 4-stroke engine with air cooling and vertical power take off shaft. It was designated with an overhead valve (OHV) feature, mechanical governor, iron cylinder liner, fixed jet float-type carburetor, and reciprocating balancer.
It can generate 17 horsepower (12.7 kW) output power @ 3600 rpm and 27 feet pounds (36.7 Nm or 3.74 kg/m) maximum torque @ 2400 rpm. This engine has 3.5 inches (89 mm) of cylinder bore and 3.39 inches (86 inches) of piston stroke, and compression ratio that’s rated at 8.3:1.
Meanwhile, the Kawasaki FH531V that was used on the newer versions of John Deere 325 garden tractor is 30.15 cubic inch (494 ml), 4-stroke with vertical power take off shaft. It also features overhead valves (OHV) and fixed jet pulse-type fuel pump.
It can produce 18 horsepower (13.4 kW) output power @ 3600 rpm and 28.78 feet pounds (39 Nm or 3.98 kg/m) maximum torque @ 2400 rpm. This engine has 2.68 inches (68 mm) of cylinder bore and 2.68 inches (68 inches) of piston stroke, and compression ratio that’s rated at 8.5:1.
John Deere 325 garden tractor comes with continuously variable transmission (CVT), wet disc brakes, and manual steering features. It is also equipped with an open operator station (OOS) platform and electric starter. The fuel tank capacity size is 3.5 gallons.
There are various options when it comes to the suitable attachments for the John Deere 325 garden tractor. You can get the 54 inches (1370 mm) mid-mounted deck with hydraulic lift, 48 inches (1210 mm) mid-mounted deck with hydraulic lift, 44 inches (1110 mm) mid-mounted deck with hydraulic lift, or 38 inches (960 mm) mid-mounted deck with hydraulic lift. You can get 46 inches (1160 mm) front-mounted deck with manual lift and 42 inches (1160 mm) front-mounted snow blower with manual lift.
To learn better about the John Deere 325 garden tractor, read its specification details, features, serial numbers, price, and other information below.
John Deere 325 Price
- John Deere 325 Original Price: $2,900 USD
Related Post
- John Deere 210
- John Deere 314
- John Deere 3032E
- John Deere D125
- John Deere L111
- John Deere LA130
- John Deere LT133
- John Deere LT155
- John Deere LT166
- John Deere LX277
John Deere 325 Serial Numbers
| 1995 | 10001 |
| 1996 | 020001 |
| 1997 | 040001 |
| 1998 | 055001 |
| 1999 | 070001 |
| 2000 | 085001 |
| 2001 | 095001 |
John Deere 325 Specification
| JOHN DEERE 325 ENGINE | |
| Engine | Kawasaki FC540V gasoline 1-cylinder air-cooled |
| Displacement | 534 cc 32.64 ci |
| Bore/Stroke | 3.50×3.38 inches 89 x 86 mm |
| Power | 17 hp 12.7 kW |
| Air cleaner | dry with foam precleaner |
| Starter volts | 12 |
| JOHN DEERE 325 TRANSMISSION | |
| Transmission | Tuff Torq K71A |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
| JOHN DEERE 325 DIMENSIONS | |
| Wheelbase | 47.9 inches 121 cm |
| Length | 72.25 inches 183 cm |
| 94.25 inches (with bagger) 239 cm | |
| Height | 43.6 inches 110 cm |
| Shiping weight | 642 lbs 291 kg |
| JOHN DEERE 325 ELECTRICAL | |
| Ground | negative |
| Charging system | flywheel alternator |
| Charging amps | 13 |
| Battery CCA | 500 |
| Battery volts | 12 |
| JOHN DEERE 325 MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | manual |
| Brakes | wet disc |
| Cab | Open operator station. Adjustable seat with 7-inches of travel. |
| JOHN DEERE 325 PTO | |
| Front PTO | independent |
| Clutch | electric |
| JOHN DEERE 325 TIRES | |
| Lawn/turf front | 16×6.50-8 |
| Lawn/turf rear | 23×10.50-12 |
John Deere 325 Attachments
| 54″ mid-mount mower deck |
| 48″ mid-mount mower deck |
| 44″ mid-mount mower deck |
| 38″ mid-mount mower deck |
| Snowblower |
| Blade |
John Deere 325 Review Video
Related Post
- John Deere LX280
- John Deere 212
- John Deere 285
- John Deere 300
- John Deere 316
- John Deere 420
- John Deere 455
- John Deere 650
- John Deere 790
Conclusion
Purchasing a used John Deere 325 garden tractor can be a great option if you’re on a certain budget. However, don’t forget to consider if it matches with your requirements and needs, by looking at its details above.
